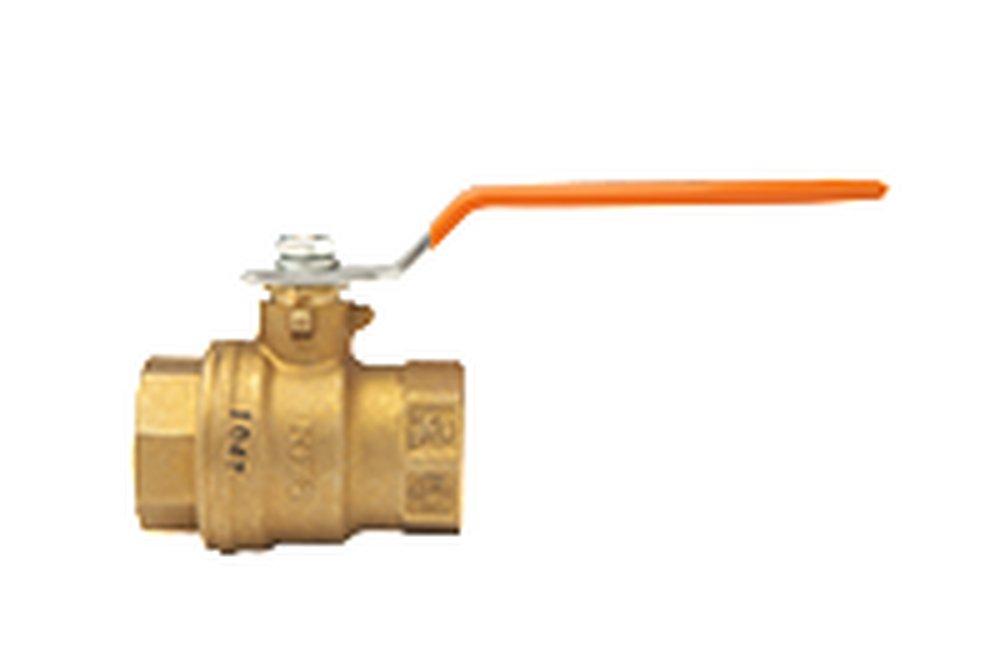

1-1/2 in. Forged Brass Full Port FNPT 600# Ball Valve
Kitz
1-1/2 in. Forged Brass Full Port FNPT 600# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Kitz
1-1/2 in. Forged Brass Full Port FNPT 600# Ball Valve
68-112
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
Documents
Specifications
- ANSI:
- ANSI B1.20.1, ANSI B16.18
- ASME:
- ASME B16.18, ASME B16.33-2002, ASME B16.44
- ASTM:
- ASTM B-283 C37700
- End Connection 1:
- FPT
- End Connection 2:
- FPT
- End Connections:
- FPT
- FM Approved:
- Yes
- Handle Material:
- Carbon Steel
- Height:
- 2-87/100 in
- Length:
- 3-31/50 in
- MSS:
- MSS SP-110
- Material:
- Forged Brass, Brass, Carbon Steel, Plastic
- Material Type:
- PTFE
- Maximum Temperature:
- 366
- Minimum Temperature:
- -20
- Pressure - High:
- 150, 600
- Pressure Class:
- 600#
- Recommended Valve Application:
- Gas, Oil, Steam, Potable Water
- Temperature Range:
- -20 to 366 Deg F
- UL Listed:
- UL 125/UL 258/UL 842/UL 1769
- UPC:
- 747066004985
- Valve Body Material:
- Forged Brass
- Valve Body Style:
- 2 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1-1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 54 lb
