60 in. x 30 in. Air Bath Alcove Bathtub with Left Drain in White

KOHLER

Archer® 60 in. x 30 in. Air Bath Alcove Bathtub with Left Drain in White

  • Fast #
  • Part #K1947-GHLA-0
  • Item #7848847
  • Manufacturer Part #1947-GHLA-0
4.3 out of 5 Customer Rating
Brand image

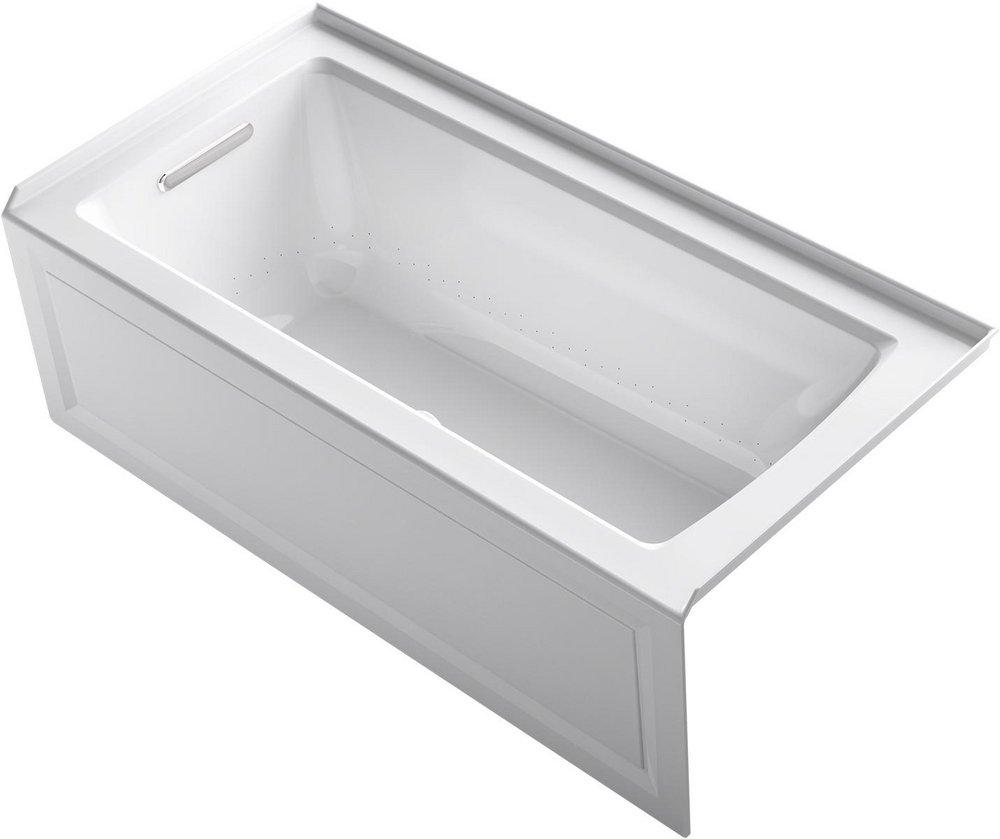

KOHLER White 60 x 30 in. Air Bath Alcove Bathtub in White
KOHLER White 60 x 30 in. Air Bath Alcove Bathtub in White
KOHLER

Archer® 60 in. x 30 in. Air Bath Alcove Bathtub with Left Drain in White

  • Fast #
  • Part #K1947-GHLA-0
  • Item #7848847
  • Manufacturer Part #1947-GHLA-0
4.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Color Finish Name: White Select Color Finish Name

Package Quantity Info:

Each: 1
Unavailable
Looking for compatible parts?

Product Details

Product Details

  • Heated BubbleMassage surrounds the body in a warm massage
  • Molded lumbar support offers extra comfort
  • Self-cleaning purge cycles remove residual water from channels
  • 120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
  • Comfort Depth design offers a convenient 19-in step-over height while retaining the same depth as a standard 21-in bath
  • Integral apron
  • Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
  • Bottom surface manufactured with textured appearance
  • Requires Certification

  • ADA Compliant

Documents

SPECIFICATION

Specifications

ADA Compliant:
Yes
AMP:
10, 15, 5
ANSI:
ANSI A117.1
ASME:
ASME A112.19.7
ASTM:
ASTM E-162, ASTM E-662
Above Floor Rough:
No
Application:
Residential
Basin Length:
45-1/8
Basin Shape:
Rectangle
Basin Width:
19-11/16 in
Bathtub Shape:
Rectangle
Bathtub Type:
Air Bath
CARB OTC LEED Compliant:
No
CSA Certified:
CSA B45.10, CSA B45.5, CSA C22.2 No. 218.2
Capacity:
57 gal
Collection:
Archer®
Color Finish Category:
Whites
Color Finish Name:
White
Control Type:
Electronic
Depth:
19-5/16
Drain Included:
No
Drain Location:
Left
Drain Opening:
1-1/2
GSA Approved:
No
Height:
20
IAPMO Listed:
Yes
Installation Type:
Skirted
Length:
60
Material:
Acrylic
NSF Certified:
No
Number of Jets:
120
Number of Occupants:
1
Origin:
Domestic
Overall Height:
20
Overall Length:
60
Overall Width:
30
Overflow Type:
Linear
Pump Location:
Right
Soaking Depth:
15-1/8
UL Listed:
UL 1795
UPC:
885612783820
Volts:
120V
Watts:
600
Weight:
113
Width:
30
cUPC Certified:
No
