66 in. x 35-15/16 in. Air Bath Alcove Bathtub with Left Drain in White

KOHLER

Mariposa® 66 in. x 35-15/16 in. Air Bath Alcove Bathtub with Left Drain in White

  • Fast #
  • Part #K1224-GHLA-0
  • Item #8026230
  • Manufacturer Part #1224-GHLA-0
3.8 out of 5 Customer Rating
Brand image
KOHLER White 66 x 35-15/16 in. Air Bath Drop-In Bathtub with Left Drain
KOHLER White 66 x 35-15/16 in. Air Bath Drop-In Bathtub with Left Drain
KOHLER White 66 x 35-15/16 in. Air Bath Drop-In Bathtub with Left Drain
KOHLER White 66 x 35-15/16 in. Air Bath Drop-In Bathtub with Left Drain
KOHLER White 66 x 35-15/16 in. Air Bath Drop-In Bathtub with Left Drain
KOHLER White 66 x 35-15/16 in. Air Bath Drop-In Bathtub with Left Drain
KOHLER

Mariposa® 66 in. x 35-15/16 in. Air Bath Alcove Bathtub with Left Drain in White

  • Fast #
  • Part #K1224-GHLA-0
  • Item #8026230
  • Manufacturer Part #1224-GHLA-0
3.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
Looking for compatible parts?

Product Details

Product Description

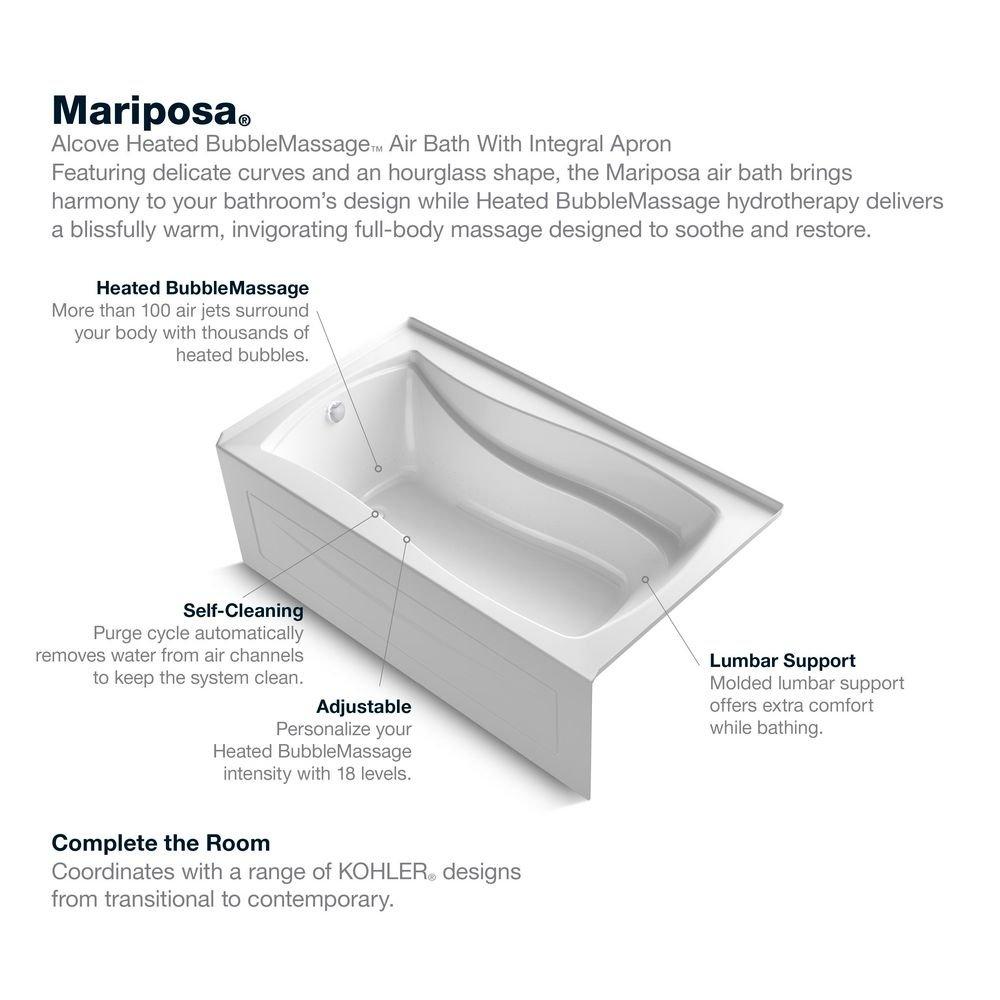

  • 120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
  • Variable-speed blower lets you adjust massage intensity to 18 levels
  • Heated BubbleMassage includes 60-minute automatic shutoff timer
  • Electronic keypad control
  • Hourglass shape adds style and elegance to your bathroom
  • Integral apron
  • Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
  • Bottom surface manufactured with textured appearance
  • Automatic and manual purge cycles remove residual water from air channels after use to keep the system clean
  • Left-hand drain
  • Requires Certification

Documents

SPECIFICATION
Dimensions & Measurements
Basin Length
47-1/8 in
Basin Width
19-11/16 in
Capacity
67 gal
Depth
20-3/16 in
Drain Opening
1-1/2 in
Height
21-5/16 in
Length
66 in
Overall Length
66 in
Overall Width
35-15/16 in
Soaking Depth
13-5/8 in
Weight
115 lb
Width
36 in
Included Components
Drain Included
No
Characteristics & Features
Basin Shape
Hour Glass
Bathtub Shape
Rectangle
Bathtub Type
Air Bath
Collection
Mariposa®
Color Finish Category
Whites
Color Finish Name
White
Control Type
Electronic
Drain Location
Left
Installation Type
3 Wall Alcove
Material
Acrylic
Number of Jets
120
Number of Occupants
1
Overflow Type
Round
Pump Location
Left
Electrical & Operational Information
AMP
10, 15, 5
Volts
120V
Warranty & Product Information
ADA Compliant
No
Application
Residential
ASME
ASME A112.19.7
ASTM
ASTM E-162, ASTM E-662
CARB OTC LEED Compliant
No
CSA Certified
CSA B45.10, CSA B45.5
cUPC Certified
No
GSA Approved
No
IAPMO Listed
Yes
NSF Certified
No
Origin
Domestic
UL Listed
UL 1795
UPC
885612817136
