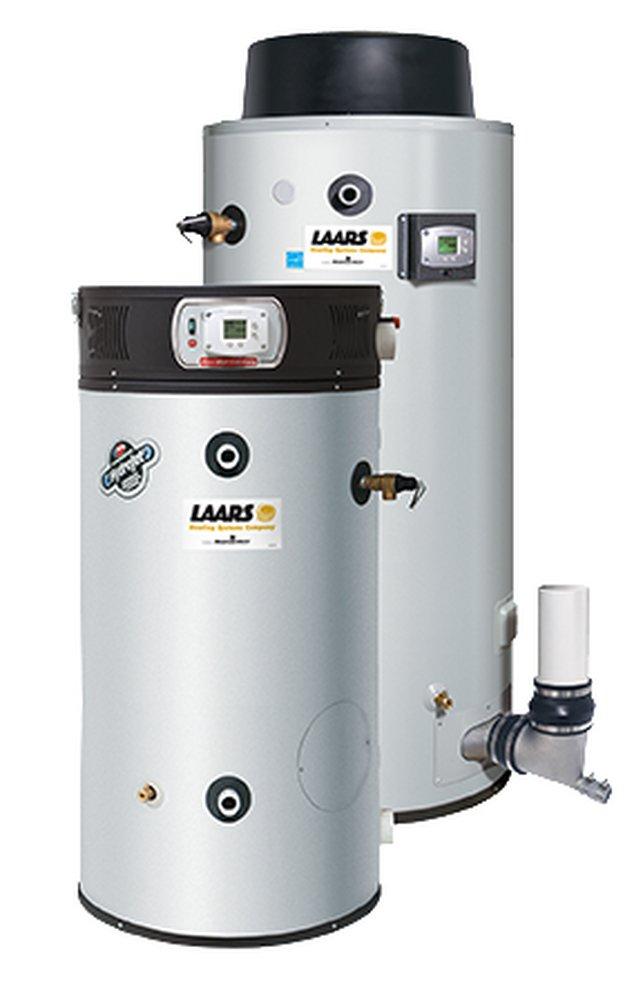

100 gal. Tall 199.9 MBH Commercial Natural Gas Water Heater
Laars
U.H.E. Series 100 gal. Tall 199.9 MBH Commercial Natural Gas Water Heater
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in OH
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in OH
Purchase history
Laars
U.H.E. Series
100 gal. Tall 199.9 MBH Commercial Natural Gas Water Heater
LUHE100T199E3N
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Intelligent proven design combines temperature control, diagnostic codes, and system ignition functions into a single control board with a digital LCD display
- Cold water inlet sediment reducing device helps prevent sediment build up in the tank
- For improved operational dependability and durability
- Two different digitally displayed operation modes have the capability of adjusting the temperature setting up to 180°F (82°C), and adjusting the degree setting
- A self compensating negative regulation system automatically increases or decreases fuel flow when a change in combustion air is detected. This provides the range for optimum combustion and efficiency (automatic high altitude compatibility)
- Ultra quiet operation
- A single exhaust pressure switch
- 1 in. NPT side connections for space heating
- Sanitizing capability
-
Green
Documents
Specifications
- ANSI:
- ANSI Z21.10.3
- ASME:
- ASME HLW
- Antimicrobial:
- Yes
- Application:
- Commercial
- BTU:
- 199999
- Capacity:
- 100 gal
- Collection:
- U.H.E. Series
- Diameter:
- 28-1/4
- Emission:
- Ultra-Low NOx
- Energy Star Compliant:
- Yes
- Fuel Type:
- Natural Gas
- Height:
- 77-1/8
- Lining of Tank:
- Glass
- MBH:
- 199.999
- NSF Certified:
- Yes
- Power Source:
- Gas
- Pressure - High:
- 150
- Pressure - Maximum:
- 300 psi
- Temperature Range:
- Up to 180 Deg F
- UL Listed:
- No
- Vent Type:
- Direct Vent
- Volts:
- 120V
- Water Connection Size:
- 1-1/2
- Water Connections:
- Side
- Water Heater Capacity Range:
- 51 - 100 gal
- Water Heater Type:
- High Efficiency
- Watts:
- 58.6
