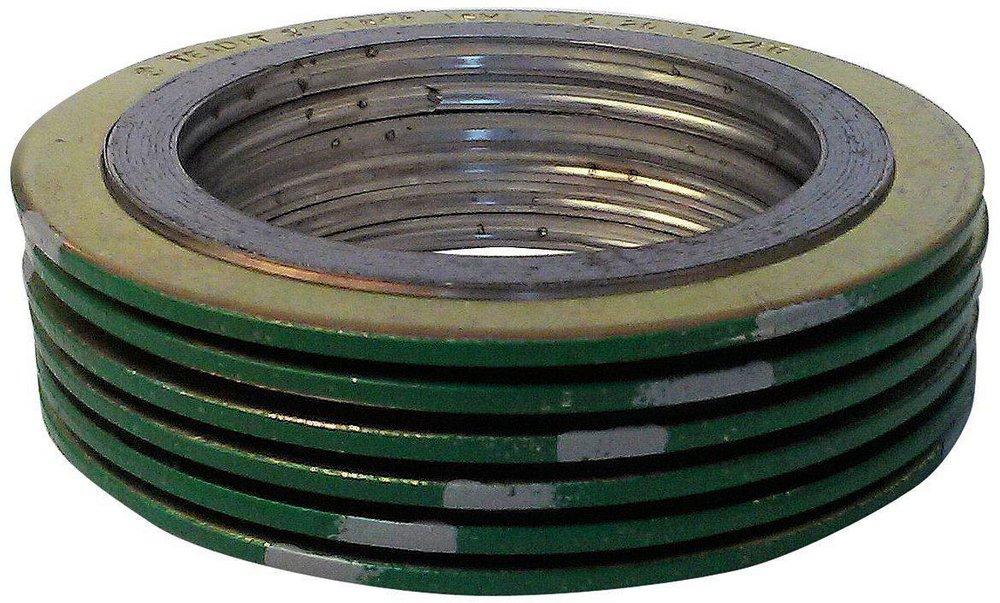

1/2 in. 600# Carbon Steel, Flexible Graphite and Stainless Steel Gasket
Lamons Gasket
1/2 in. 600# Carbon Steel, Flexible Graphite and Stainless Steel Gasket
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 25Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Lamons Gasket
1/2 in. 600# Carbon Steel, Flexible Graphite and Stainless Steel Gasket
SCSIB005ISI
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Semi-metallic gaskets are designed to feature soft, pliable sealing materials - which enhance the tightness of the assembly with lower overall load requirements when compared to full metallic gaskets
- They can be used against virtually any corrosive medium dependent upon the choice of the metal and filler/facing material
- Variable density
- Fabricated
- Spiral wound gaskets are manufactured by alternately winding strips of metal and soft fillers on the outer edge of winding mandrels that determine the inside dimensions of the wound component
- Low winding pressure and thick soft fillers are used for low pressure applications
- 1/2 in nominal pipe size
- Green color code
- Pressure class 600#
- For schedule 80 pipe and welding neck flange
Documents
Dimensions & Measurements
Diameter - Inside 1
14/25 in
Diameter - Outside
2-1/8 in
Pressure Class
600#
Thickness
0.131 in
Characteristics & Features
Fitting Type
Gasket
Material
Carbon Steel, Stainless Steel, Graphite
Material Type
316
Electrical & Operational Information
Maximum Temperature
850
Minimum Temperature
325
Warranty & Product Information
ASME
ASME B16.20, ASME B16.47, ASME B16.5
FM Approved
No
IAPMO Listed
No
NSF Certified
No
UL Listed
No
