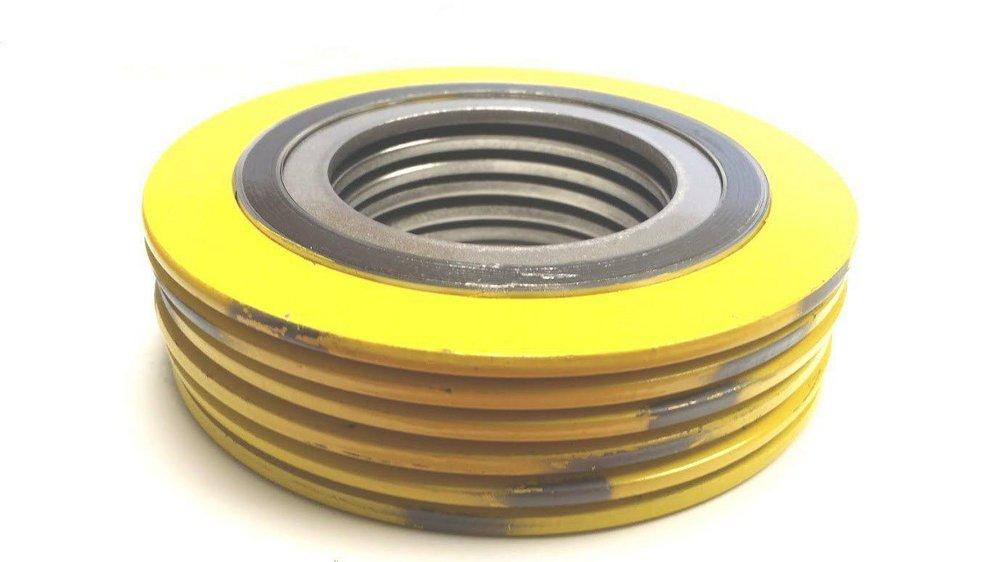

2-1/2 in. 150# 304 Stainless Steel and Carbon Steel Spiral Wound Gasket
Lamons Gasket
2-1/2 in. 150# 304 Stainless Steel and Carbon Steel Spiral Wound Gasket
Package Quantity Info:
Each: 1 Inner Pack: 1 Bundle: 10
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Lamons Gasket
2-1/2 in. 150# 304 Stainless Steel and Carbon Steel Spiral Wound Gasket
SCSCB025BSC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Semi-metallic gaskets are designed to feature soft, pliable sealing materials - which enhance the tightness of the assembly with lower overall load requirements when compared to full metallic gaskets
- They can be used against virtually any corrosive medium dependent upon the choice of the metal and filler/facing material
- Variable density
- Fabricated
- Spiral wound gaskets are manufactured by alternately winding strips of metal and soft fillers on the outer edge of winding mandrels that determine the inside dimensions of the wound component
- Low winding pressure and thick soft fillers are used for low pressure applications
- 2-1/2 in nominal pipe size
- Yellow color code
- Pressure class 150#
- For schedule 40 pipe and welding neck flange
Specifications
- ASME:
- ASME B16.20, ASME B16.47, ASME B16.5
- Diameter - Inside 1:
- 2-31/50 in
- Diameter - Outside:
- 4-22/25 in
- FM Approved:
- No
- Fitting Type:
- Spiral Wound Gasket
- IAPMO Listed:
- No
- Material:
- Carbon Steel, Stainless Steel, Graphite
- Material Type:
- 304
- Maximum Temperature:
- 850
- Minimum Temperature:
- 325
- NSF Certified:
- No
- Pressure Class:
- 150#
- Thickness:
- 0.131 in
- UL Listed:
- No
