2 in. UPVC Full Port FNPT and Solvent Weld 150# Ball Valve

Legend Valve & Fitting

Model T/S-603 2 in. UPVC Full Port FNPT and Solvent Weld 150# Ball Valve

  • Fast #
  • Part #L201208
  • Item #1590443
  • Manufacturer Part #201-208
5 out of 5 Customer Rating
Brand image

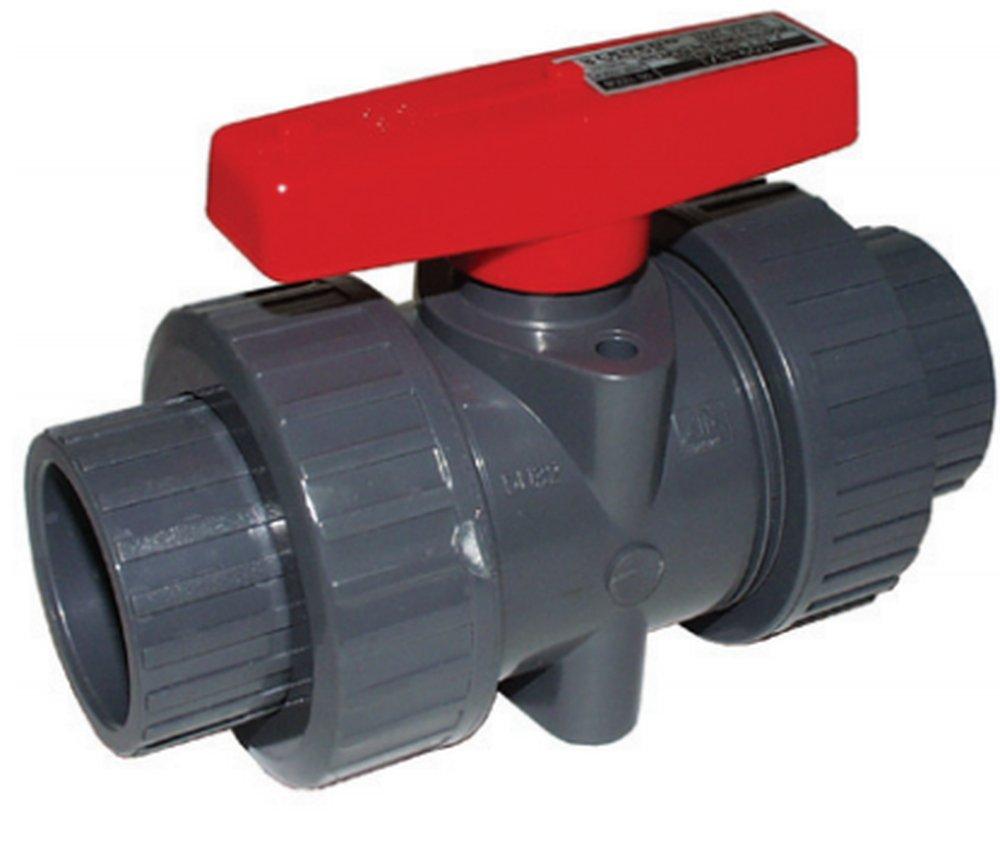

Legend Valve & Fitting Grey UPVC Full Port FNPT and Solvent Weld 150# Ball Valve
Legend Valve & Fitting Grey UPVC Full Port FNPT and Solvent Weld 150# Ball Valve
Legend Valve & Fitting

Model T/S-603 2 in. UPVC Full Port FNPT and Solvent Weld 150# Ball Valve

  • Fast #
  • Part #L201208
  • Item #1590443
  • Manufacturer Part #201-208
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Available Nearby
    0  in  Hilliard, OH
    Available in 1 store nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • T/S-603 PVC true union ball valve, with FNPT & solvent adapters
  • 150 psi. @ 73°F
  • Constructed of heavy-duty, high-impact, virgin UPVC resin
  • Designed for commercial or industrial schedule 80 or schedule 40 piping applications
  • Ideal for swimming pool, process/wastewater or corrosive installations
  • Removable handle can be used as a carrier wrench for body disassembly and access to the internal components
  • Central mounting pad with pre-drilled fastener holes is ideal for panel mount or actuation attachment (sizes 1/2” to 2” only)
  • Not suitable for use with petroleum-based medias or compressed-air service
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI B1.20.1
ASME:
ASME B1.20.1
ASTM:
ASTM D-1784 Class 12454, ASTM D-2467, ASTM F-1498, ASTM F-1970
Clean Bagged:
No
Collection:
Model T/S-603
End Connection 1:
Union FPT
End Connection 2:
Union Socket Weld
End Connections:
Union FPT x Union Socket Weld
FM Approved:
No
Handle Material:
ABS
Height:
6-63/100 in
IAPMO Listed:
No
Length:
8-19/100 in
Material:
Plastic
Material Type:
PTFE, UPVC
NSF Certified:
No
Origin:
Global
Pressure - High:
150
Recommended Valve Application:
Waste Water
Temperature Range:
Up to 140 Deg F
UL Listed:
No
Valve Body Material:
UPVC
Valve Body Style:
Inline
Valve Operator:
T-Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
2 in
Valve Type:
Ball Valve
Weight:
4.5 lb
Width:
5-81/100 in
