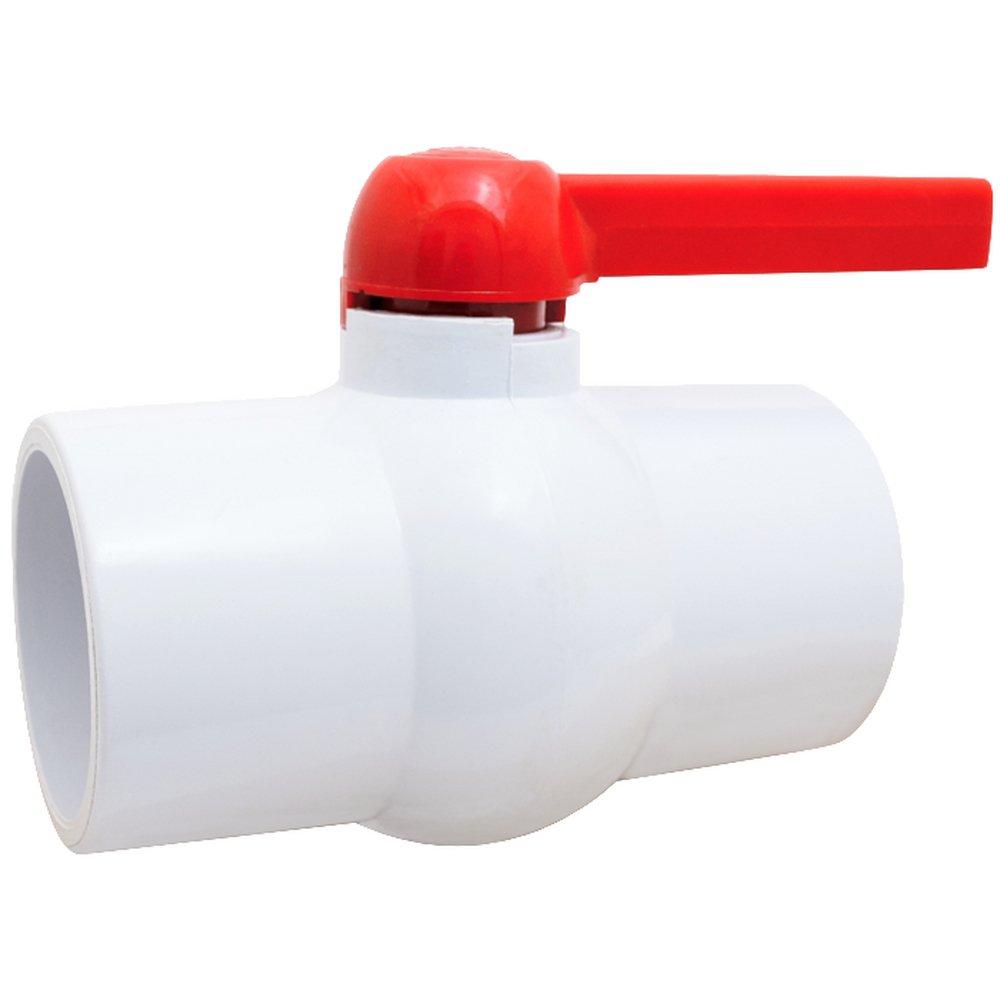

4 in. Plastic Full Port Solvent Weld Ball Valve

Legend Valve & Fitting

S-802 4 in. Plastic Full Port Solvent Weld Ball Valve

  • Fast #
  • Part #L201411
  • Item #1354316
  • Manufacturer Part #201-411
5 out of 5 Customer Rating
Brand image
Legend Valve & Fitting Plastic Full Port Solvent Weld Ball Valve
Legend Valve & Fitting Plastic Full Port Solvent Weld Ball Valve
Legend Valve & Fitting

S-802 4 in. Plastic Full Port Solvent Weld Ball Valve

  • Fast #
  • Part #L201411
  • Item #1354316
  • Manufacturer Part #201-411
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
    Pick Up  Not Available
    Not available in OH
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in OH

Product Details

Product Details

  • Constructed of heavy-duty, corrosion-proof, virgin PVC resin
  • EPDM seats and stem o-ring assure maintenance-free operation and maximum service life
  • Compact-pattern, lightweight molded-in-place body and one-piece ball-stem design, provide exceptional resistance to wear and to pipeline stress distortion
  • Designed for installation onto schedule 40 PVC pipe, for swimming pool, aquarium, irrigation, waste water treatment, chemical processing, marine-corrosive, agriculture, de-watering and many other applications
  • Not suitable for use with petroleum-based medias or compressed-air service
  • Threaded or solvent-weld end connection types, available in nominal pipe sizes 1/4 in. (FNPT only) and 1/2 in. to 4 in. (FNPT and Solvent-weld)
  • Requires Certification

Documents

SPECIFICATION

Specifications

ASTM:
ASTM D-1784 Class 23447, ASTM D-2846, ASTM F-1970
Clean Bagged:
No
Collection:
S-802
End Connection 1:
Socket Weld
End Connection 2:
Socket Weld
End Connections:
Socket Weld x Socket Weld
FM Approved:
No
Handle Material:
ABS
Height:
9-1/4
IAPMO Listed:
No
Length:
11-22/25
Material:
Plastic
Material Type:
PVC
Maximum Temperature:
140
NSF Certified:
Yes
Pressure - High:
150
Recommended Valve Application:
Schedule 40 Pipe, Cold Working Pressure
Temperature Range:
Up to 73 Deg F
UL Listed:
No
Valve Body Material:
PVC
Valve Body Style:
1 piece
Valve Disc Material:
Plastic
Valve Operator:
Tee Handle
Valve Port Opening:
Full Port
Valve Seat Material:
EPDM
Valve Size:
4 in
Valve Type:
Ball Valve
