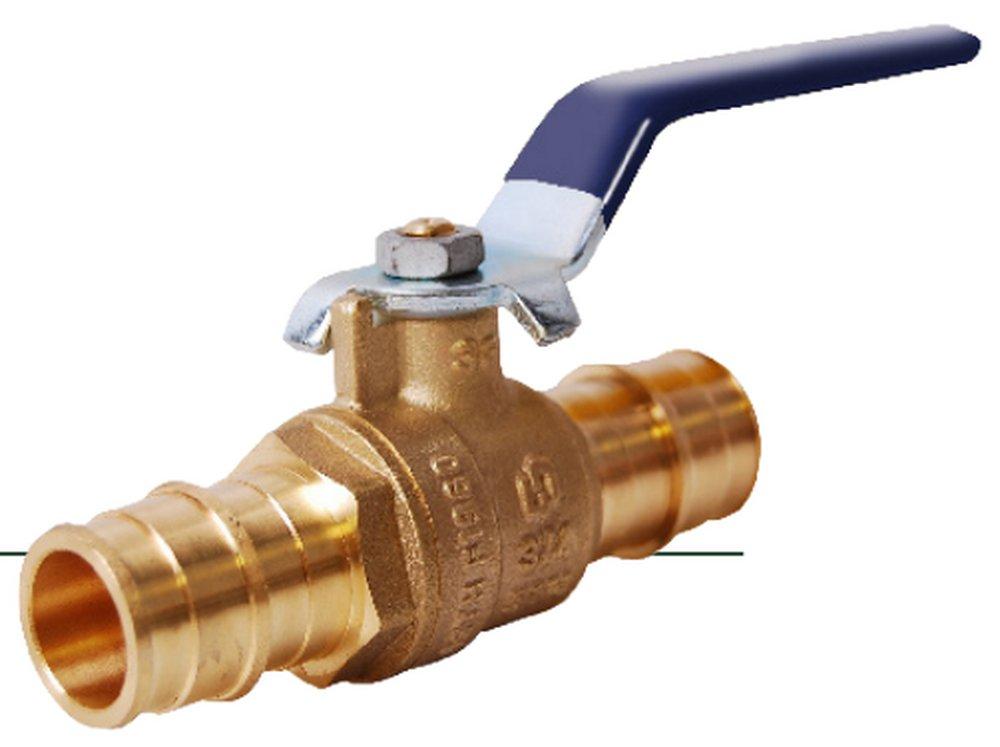

1-1/2 in. Forged Brass Full Port F1960 400# Ball Valve
Legend Valve & Fitting
T-1960NL 1-1/2 in. Forged Brass Full Port F1960 400# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Legend Valve & Fitting
T-1960NL
1-1/2 in. Forged Brass Full Port F1960 400# Ball Valve
101-547NL
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- T-1960NL No Lead, DZR Forged Brass Cold Expansion PEX (F 1960) Ball Valve, MNPT x PEX
- ANSI / NSF 14
- ANSI/NSF 61-G
- ASTM F 1960
- 400 CWP
Product Information
-
Lead Law Compliant
Documents
Dimensions & Measurements
End Connection 1
PEX
End Connection 2
PEX
End Connections
PEX x PEX
Length
5-1/2 in
Pressure Class
400#
Pressure - Maximum
400 psi
Valve Size
1-1/2 in
Characteristics & Features
Clean Bagged
No
Collection
T-1960NL
Handle Material
Zinc Plated Steel
Material
Forged Brass
Material Type
DZR
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
PTFE
Valve Stem
Bottom-loaded/Blowout-proof
Valve Type
Ball Valve
Warranty & Product Information
ANSI
ANSI 14, ANSI 61, ANSI 372
ASME
ASME B1.20.1, ASME SA6
ASTM
ASTM F-1960, ASTM F-876, ASTM F-877
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 9002
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 14, NSF 61, NSF 372
NSF Certified
Yes
Recommended Valve Application
Potable Water
UL Listed
No
UPC
662545117201
