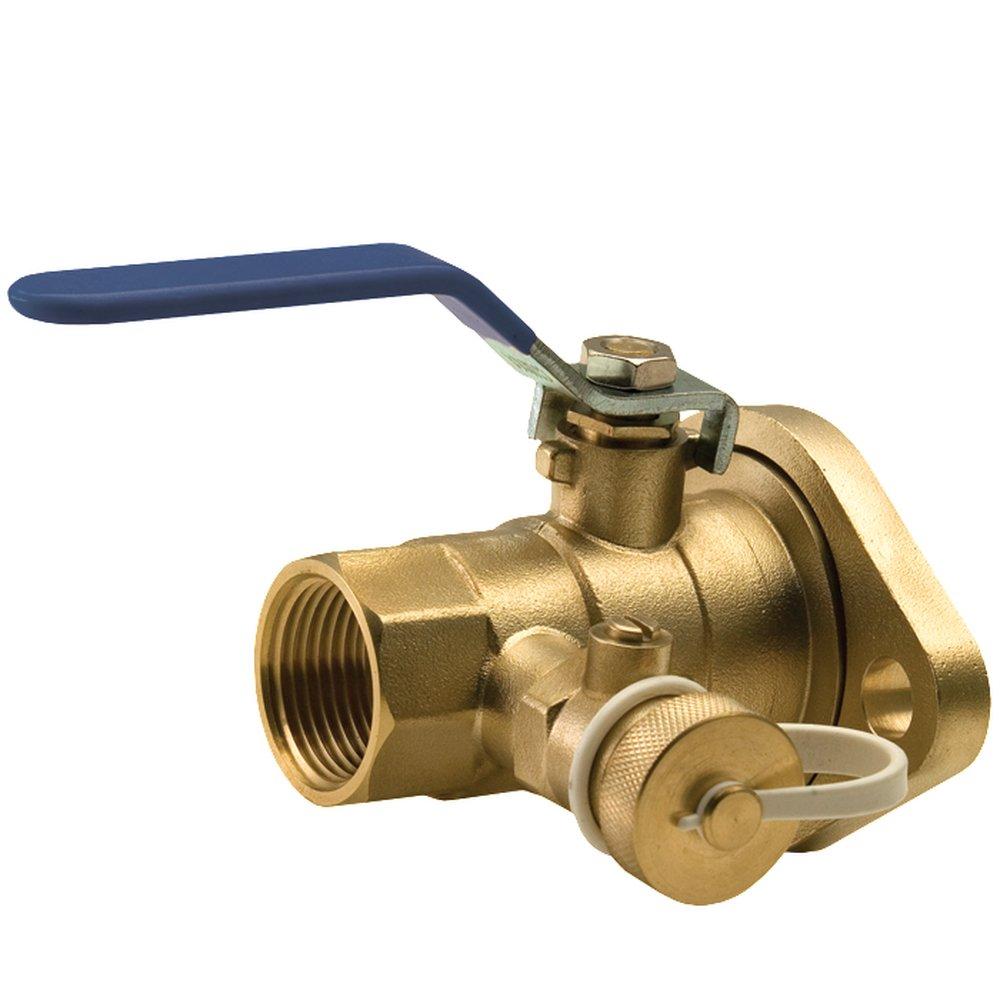

1-1/4 in. Forged Brass Full Port FNPT x Flanged 600# Ball Valve

Legend Valve & Fitting

T-2012RFLG 1-1/4 in. Forged Brass Full Port FNPT x Flanged 600# Ball Valve

  • Fast #
  • Part #L101176
  • Item #7376540
  • Manufacturer Part #101-176
5 out of 5 Customer Rating
Brand image
Legend Valve & Fitting Forged Brass Full Port FNPT x Flanged 600# Ball Valve
Legend Valve & Fitting Forged Brass Full Port FNPT x Flanged 600# Ball Valve
Legend Valve & Fitting

T-2012RFLG 1-1/4 in. Forged Brass Full Port FNPT x Flanged 600# Ball Valve

  • Fast #
  • Part #L101176
  • Item #7376540
  • Manufacturer Part #101-176
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
    Pick Up  Not Available
    Not available in OH
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in OH

Product Details

Product Details

  • T-2102 forged brass isolation ball valve with rotating flange, FNPT x Flange
  • ISO 9002
  • 600 CWP
  • Bolt set included
  • Ideal for circulator pump isolation, permitting pump removal without complete system drain-down
  • Standard diamond-shaped pump flange connection rotates to allow infinite valve positioning
  • Integrated drain valve with a tethered cap that permits filling, purging and flushing operations
  • Positive-seal, blowout-proof stem features dual PTFE packing and EPDM rubber o-ring seals
  • Flange mounting hardware included
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Documents

SPECIFICATION

Specifications

ANSI:
ANSI B1.20.1, ANSI B1.20.7, ANSI B16.22, ANSI B16.51
ASME:
ASME B1.20.1, ASME B1.20.7, ASME B16.22, ASME B16.51
Clean Bagged:
No
Collection:
T-2012RFLG
End Connection 1:
FNPT
End Connection 2:
Flanged
End Connections:
FNPT x Flanged
FM Approved:
No
Handle Material:
Zinc Plated Steel
IAPMO Listed:
No
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
3-33/50
Material:
Forged Brass
Maximum Temperature:
250
NSF Certified:
No
Pressure Class:
600#
UL Listed:
No
UPC:
662545049236
Valve Disc Material:
Forged Brass
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
1-1/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
