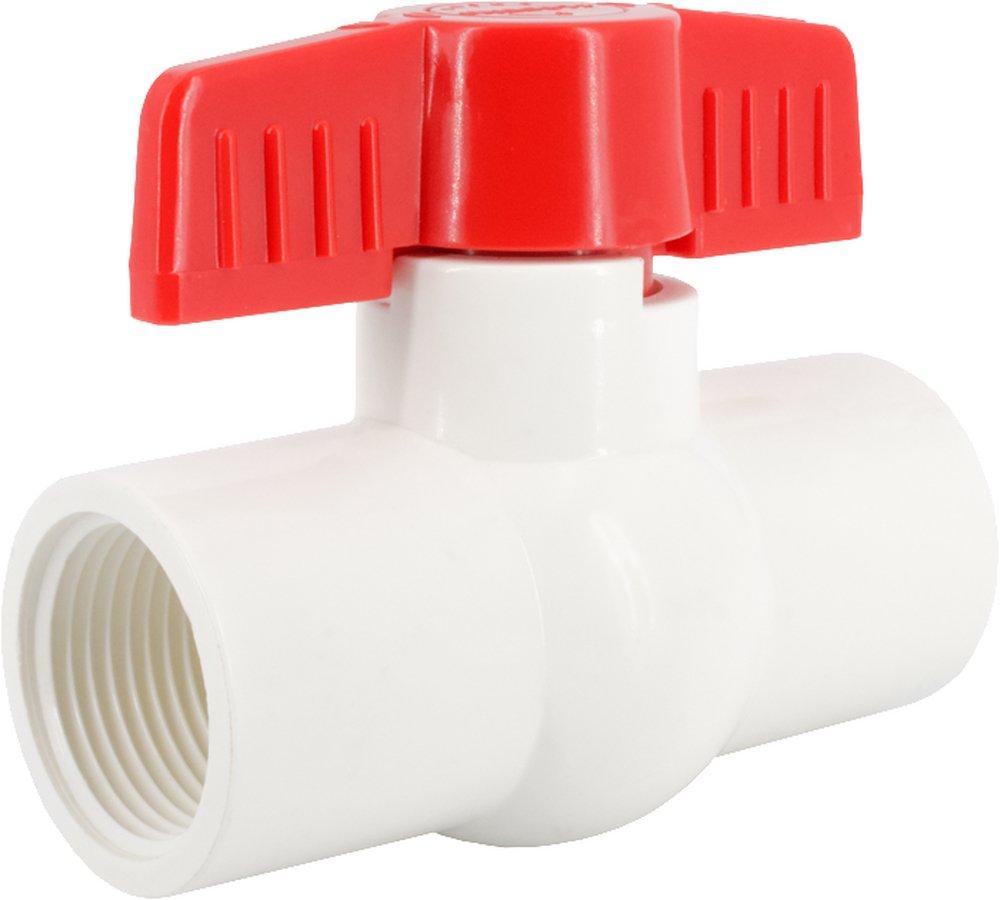

3/4 in. Plastic Full Port FNPT 150# Ball Valve
Legend Valve & Fitting
T-601 3/4 in. Plastic Full Port FNPT 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Legend Valve & Fitting
T-601
3/4 in. Plastic Full Port FNPT 150# Ball Valve
201-304
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- T-601 PVC ball valve, FNPT x FNPT
- ISO 9002
- 150 psi @ 73°F
- Fits schedule 40 or 80 pipe
- Naturally lead free
- With EPDM seats
- Constructed of heavy-duty, corrosion-proof, virgin PVC resin
- Compact-pattern, lightweight molded-in-place body and one-piece ball-stem design, provide exceptional resistance to wear and to pipeline stress distortion
- Not suitable for use with petroleum-based medias or compressed-air service
Documents
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
3-29/50 in
Pressure Class
150#
Valve Size
3/4 in
Weight
0.34 lb
Characteristics & Features
Clean Bagged
No
Collection
T-601
Handle Material
ABS
Material
Plastic, Rubber
Material Type
ABS, EPDM, PVC
Valve Body Material
PVC
Valve Disc Material
PVC
Valve Operator
T-Handle
Valve Port Opening
Full Port
Valve Seat Material
EPDM
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
140
Pressure - High
150
Warranty & Product Information
ANSI
ANSI B1.20.1
ASME
ASME B1.20.1
ASTM
ASTM D-1784 Class 12454, ASTM D-2466, ASTM F-1498, ASTM F-1970
FM Approved
No
IAPMO Listed
No
NSF Certified
No
Recommended Valve Application
Saturated Steam, Waste Water
UL Listed
No
UPC
662545003429
