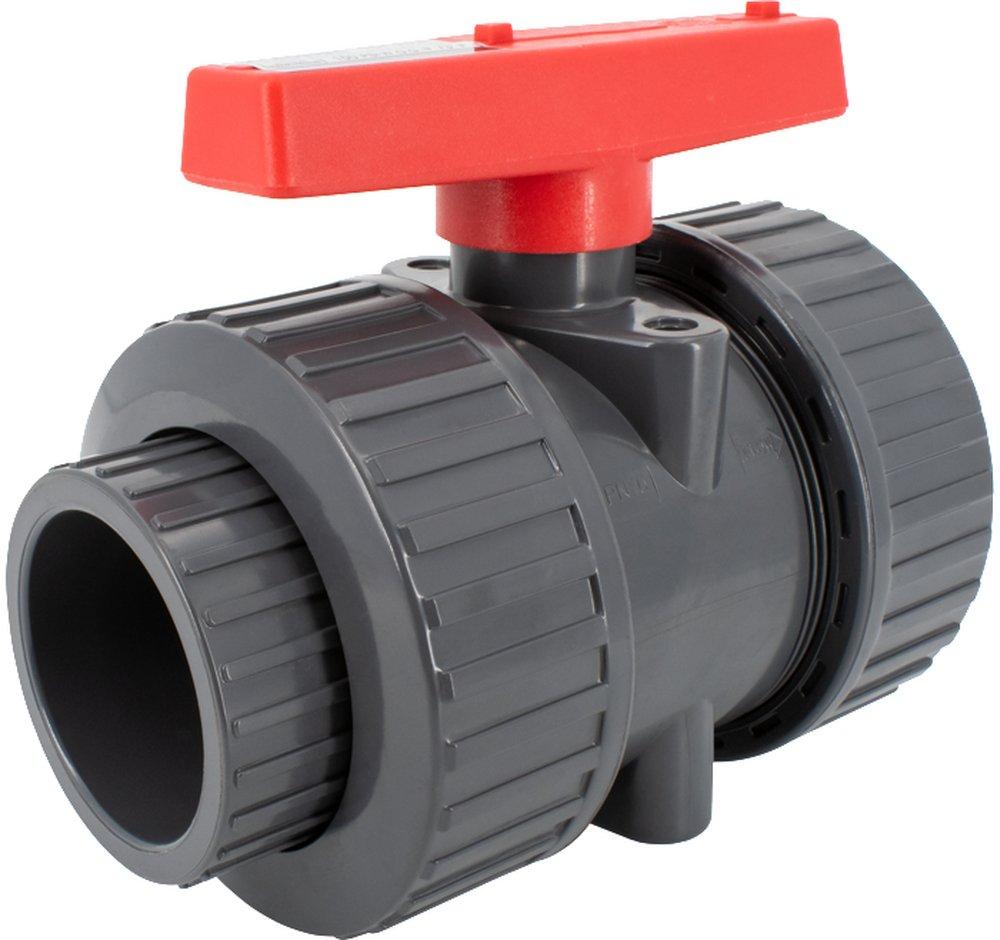

1-1/2 in. Plastic Full Port FNPT x Solvent Weld 150# Ball Valve

Legend Valve & Fitting

TS-603 1-1/2 in. Plastic Full Port FNPT x Solvent Weld 150# Ball Valve

  • Fast #
  • Part #L201207
  • Item #1590442
  • Manufacturer Part #201-207
4.2 out of 5 Customer Rating
Brand image
Legend Valve & Fitting Plastic Full Port FNPT x Solvent Weld 150# Ball Valve
Legend Valve & Fitting Plastic Full Port FNPT x Solvent Weld 150# Ball Valve
Legend Valve & Fitting

TS-603 1-1/2 in. Plastic Full Port FNPT x Solvent Weld 150# Ball Valve

  • Fast #
  • Part #L201207
  • Item #1590442
  • Manufacturer Part #201-207
4.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Baton Rouge, LA
    0 nearby
    Pick Up  Not Available
    Not available in LA
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in LA

Product Details

Product Details

  • Constructed of heavy-duty, high-impact, virgin PVC resin
  • Designed for commercial or industrial Schedule 80 or Schedule 40 piping applications
  • Ideal for swimming pool, process/wastewater or corrosive installations
  • True union design permits ease of body segment removal, for maintenance or repair
  • Removable handle can be used as a carrier wrench for body disassembly and access to the internal components
  • Central mounting pad with pre-drilled fastener holes is ideal for panel mount or actuation attachment (sizes 1/2 in. to 2 in. only)
  • Not suitable for use with petroleum-based medias or compressed-air service
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI B1.20.1
ASME:
ASME B1.20.1
ASTM:
ASTM D-1784 Class 12454, ASTM D-2467, ASTM F-1498, ASTM F-1970
Clean Bagged:
No
Collection:
TS-603
End Connection 1:
Union FPT
End Connections:
Union FPT
FM Approved:
No
Handle Material:
ABS
IAPMO Listed:
No
ISO:
ISO 9002
Length:
6-89/100
Material:
Plastic
Material Type:
ABS, PTFE, PVC
Maximum Temperature:
140
NSF Certified:
No
Pressure - High:
150
Pressure Class:
150#
Recommended Valve Application:
Waste Water
UL Listed:
No
Valve Body Material:
PVC
Valve Body Style:
1 piece
Valve Bonnet Type:
Union
Valve Operator:
T-Handle
Valve Port Opening:
Full Port
Valve Seat Material:
PTFE
Valve Size:
1-1/2 in
Valve Type:
Ball Valve
Weight:
2.74
