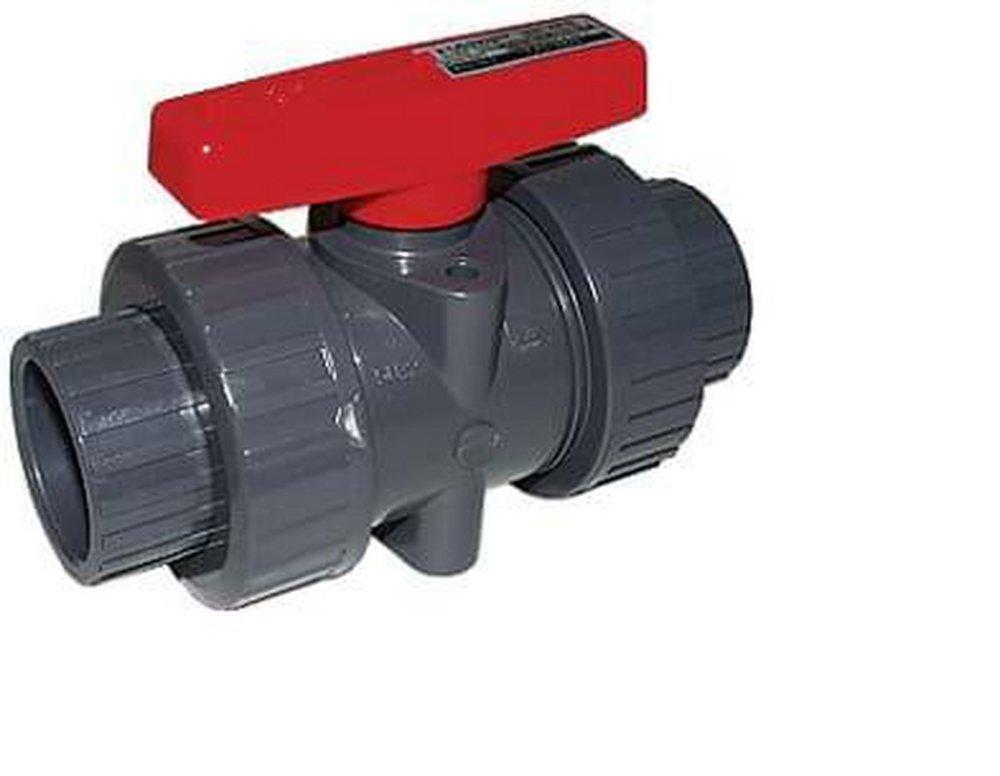

1 in. CPVC Solvent Weld 150# Ball Valve
LegendPress
S-607 1 in. CPVC Solvent Weld 150# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
LegendPress
S-607
1 in. CPVC Solvent Weld 150# Ball Valve
202-415
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Constructed of heavy-duty, corrosion-proof, virgin CPVC resin
- PTFE seats and EPDM stem O-ring assure maintenance-free operation and maximum service life
- Compact-pattern molded-in-place light-grey-colored body and one piece ball-stem design, provide exceptional resistance to wear and to pipeline stress distortion
- Designed and certified for installation onto schedule 80 CPVC pipe, potable hot and cold water plumbing, commercial plumbing, chemical processing, deionized water and many other applications
- Not suitable for use with petroleum-based medias or compressed-air service
- Solvent-weld end connection types available in nominal pipe sizes 1/2" to 2"
-
Lead Law Compliant, Not Certified
Documents
Specifications
- ANSI:
- ANSI 14, ANSI 372, ANSI 61
- ASME:
- ASME B18.6.7M
- ASTM:
- ASTM D-1784 Class 23447
- Collection:
- S-607
- End Connection 1:
- Socket Weld
- End Connection 2:
- Socket Weld
- End Connections:
- Socket Weld
- Handle Material:
- ABS
- Height:
- 3-18/25 in
- Lead Law Compliance Level:
- Compliant Not Certified
- Length:
- 4-21/100 in
- Material:
- Plastic
- Material Type:
- CPVC, PTFE
- NSF:
- NSF 14, NSF 372, NSF 61
- NSF Certified:
- Yes
- Pressure - High:
- 150
- Pressure Class:
- 150#
- Recommended Valve Application:
- Potable Water, Deionized Water
- UPC:
- 662545010625
- Valve Body Material:
- CPVC
- Valve Body Style:
- 1 piece
- Valve Operator:
- T-Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- PTFE
- Valve Size:
- 1 in
- Valve Type:
- Ball Valve
