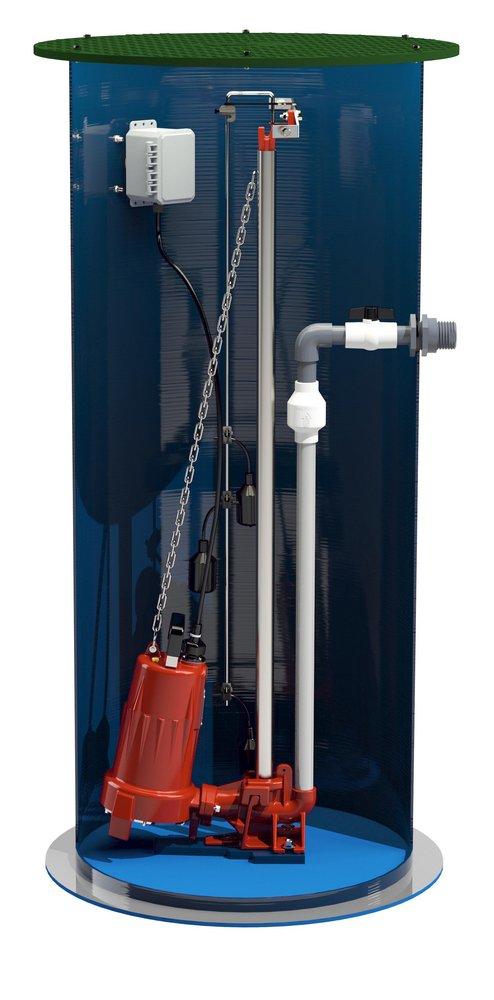

2 HP, 1 PH Commercial Grinder Package 208/230V, 1-1/4 in. Discharge with 30 x 60 in Basin and Simplex Control Panel
Liberty Pumps
3000 Series 2 HP, 1 PH Commercial Grinder Package 208/230V, 1-1/4 in. Discharge with 30 x 60 in Basin and Simplex Control Panel
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Liberty Pumps
3000 Series
2 HP, 1 PH Commercial Grinder Package 208/230V, 1-1/4 in. Discharge with 30 x 60 in Basin and Simplex Control Panel
3060LSG202-24
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Factory assembled 2hp grinder pump 30" diameter system
- Pre-mounted floats for pump control and alarm
- 4" Fiberglass hub with 4" rubber pipe seal
- Factory pre-assembled guide rail system
- Integral check valve
- Galvanized guide rail pipe
- All stainless steel supports and brackets pre-mounted
- Stainless steel chain for pump lift-out
- 24" discharge depth
- 25' power cord
Dimensions & Measurements
Capacity
184 gal
Cord Length
25 ft
Diameter
30 in
Discharge
1-1/5 in
End Connection 1
FNPT
End Connections
FNPT
Flow Rate
50 gpm
Height
66 in
Length
60 in
Maximum Feet of Head
185
Weight
266 lb
Width
36 in
Included Components
Cover Included
Yes
Characteristics & Features
Coating
Fiberglass
Collection
3000 Series
Color Finish Category
Blues
Color Finish Name
Blue, Black
Discharge Configuration
Horizontal
Impeller
Vortex
Material
Fiberglass
Pump Body Material
Cast Iron
Pump Motor Type
Thermally Protected
Pump Mounting
Rail Mount
Pump Stage
1
Turn On/Turn Off Levels
Turn-on 28.5 in_Turn-off 11.5 in
VA Cat 60 Hz
230
Electrical & Operational Information
AMP
15
Automatic Shut-Off
Yes
Horsepower
2 hp
Maximum Temperature
104
Phase
Single Phase
Power Source
Electric
RPM
3450
Volts
208/230V
Warranty & Product Information
Type
L3060LSG20224
UL Listed
No
UPC
671812156744
