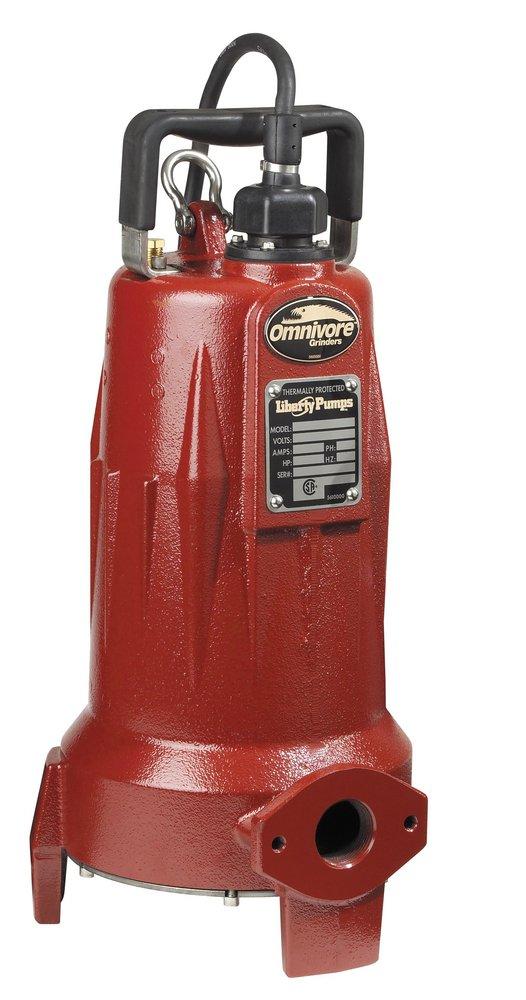

2 hp 208/230V 1-Phase Submersible Grinder Pump with 35 ft. Cord
Liberty Pumps
LSG Series 2 hp 208/230V 1-Phase Submersible Grinder Pump with 35 ft. Cord
Package Quantity Info:
Each: 1 Inner Pack: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Liberty Pumps
LSG Series
2 hp 208/230V 1-Phase Submersible Grinder Pump with 35 ft. Cord
LSG202M-3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Omnivore® grinder
- One-piece unibody casting
- Stainless steel impeller
- 300 Series SS rotor shaft
- Quick-connect 35' power cord
- Internal capacitor
- 35' power cord
Dimensions & Measurements
Cord Length
35 ft
Diameter
12-69/100 in
Discharge
1-1/4 in
End Connection 1
FNPT
End Connections
FNPT
Flow Rate
50 gpm
Height
22-1/2 in
Length
19-1/2 in
Maximum Feet of Head
108
Weight
86 lb
Width
9-1/2 in
Included Components
Built-In Grinder
Yes
Cover Included
No
Characteristics & Features
Coating
Epoxy, Powder Coated
Collection
LSG Series
Color Finish Category
Reds
Color Finish Name
Red
Discharge Configuration
Horizontal
Impeller
Vortex
Material
Cast Iron
Proposition 65
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birthdefects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Pump Body Material
Cast Iron
Pump Motor Type
Thermally Protected
Pump Mounting
Free Standing
Pump Stage
1
Turn On/Turn Off Levels
Turn-on 15 in/Turn-off 8 in
VA Cat 60 Hz
230
Electrical & Operational Information
AMP
15
Automatic Shut-Off
No
Horsepower
2 hp
Maximum Temperature
104
Phase
Single Phase
Power Source
Electric
RPM
3450
Volts
208/230V
Warranty & Product Information
CSA Certified
CSA 22.2 No. 108
IAPMO Listed
No
UL Listed
UL 778
UPC
671812122473
