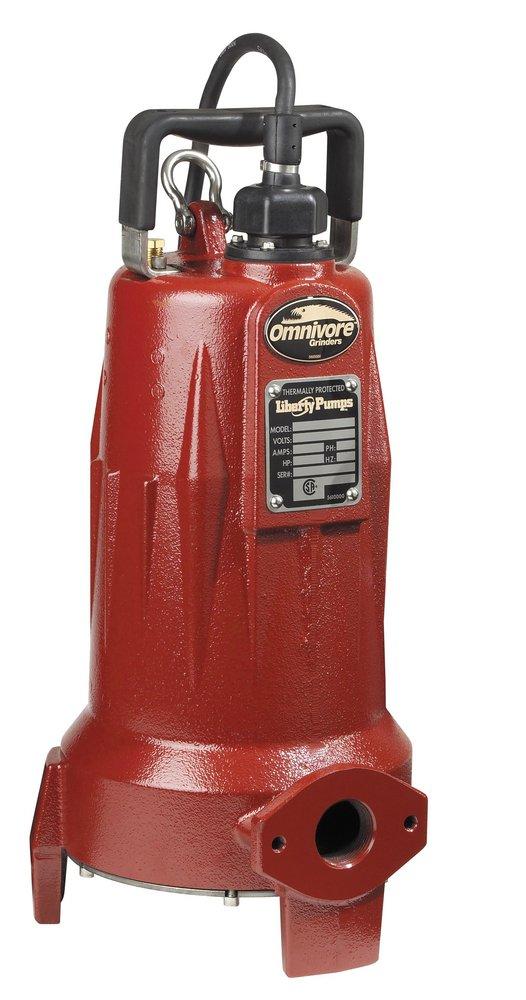

2 hp 208/230V 1-Phase Submersible Grinder Pump with 50 ft. Cord
Liberty Pumps
LSG Series 2 hp 208/230V 1-Phase Submersible Grinder Pump with 50 ft. Cord
Package Quantity Info:
Each: 1 Inner Pack: 1 Pallet: 18
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Liberty Pumps
LSG Series
2 hp 208/230V 1-Phase Submersible Grinder Pump with 50 ft. Cord
LSG202M-5
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Omnivore® grinder
- One-piece uni-body casting
- Stainless steel impeller
- 300 Series SS rotor shaft
- Quick-connect 50' power cord
- Internal capacitor
- 50' power cord
- NA
Specifications
- AMP:
- 15
- Built-In Grinder:
- Yes
- CSA Certified:
- CSA 22.2 No. 108
- Coating:
- Epoxy, Powder Coated
- Collection:
- LSG Series
- Cord Length:
- 50 ft
- Cover Included:
- No
- Diameter:
- 12-69/100 in
- Discharge:
- 1-1/4 in
- Discharge Configuration:
- Horizontal
- End Connection 1:
- FNPT
- End Connections:
- FNPT
- Flow Rate:
- 50 gpm
- Height:
- 19-1/2 in
- Horsepower:
- 2 hp
- Impeller:
- Vortex
- Length:
- 9-1/2 in
- Material:
- Cast Iron
- Maximum Feet of Head:
- 108
- Maximum Temperature:
- 104
- Phase:
- Single Phase
- Power Source:
- Electric
- Pump Body Material:
- Cast Iron
- Pump Motor Type:
- Thermally Protected
- Pump Mounting:
- Free Standing
- Pump Phase:
- 1
- Pump Stage:
- 1
- RPM:
- 3450
- UL Listed:
- UL 778
- UPC:
- 671812152715
- VA Cat 60 Hz:
- 230
- Volts:
- 208/230V
- Weight:
- 86 lb
- Width:
- 9-1/2 in
