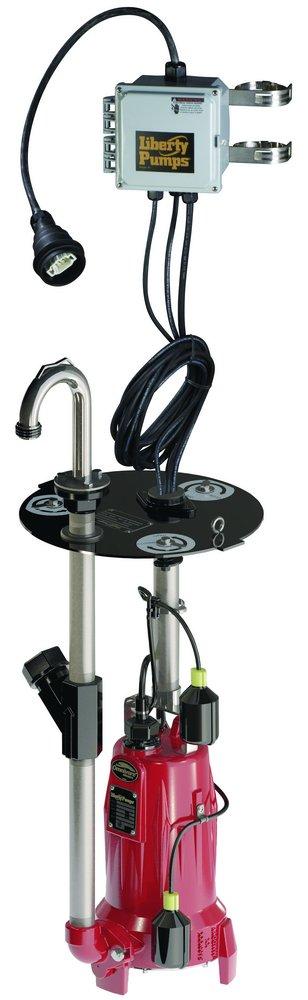

2 hp Grinder Pump Station
Liberty Pumps
LSG Series 2 hp Grinder Pump Station
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Liberty Pumps
LSG Series
2 hp Grinder Pump Station
LSGX202-RE
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Retro-fit system for E/One grinder package
- Fully assembled replacement package ready to drop-in-place
- IP68 Waterproof junction box contains motor contactor and terminal strip
- Includes floats, piping and replacement cover
- Heavy-duty cast iron anti-siphon check valve
- Alarm float works as a redundant "on" float and will sound alarm and activate pump in the event of main switch failure
- Stainless steel piping and discharge elbow
- 2-Stage for LSGX-Series
- Fits GO200 & GP2000
Specifications
- AMP:
- 15
- Brand Model Compatibility:
- Omnivore Grinder Pump
- Built-In Grinder:
- No
- CSA Certified:
- CSA 22.2 No. 108
- Coating:
- Epoxy, Powder Coated
- Collection:
- LSG Series
- Color Finish Category:
- Reds
- Color Finish Name:
- Red
- Cord Length:
- 12 ft
- Cover Included:
- No
- Diameter:
- 18-1/5 in
- Discharge:
- 1-1/4 in
- Discharge Configuration:
- Horizontal
- End Connection 1:
- FNPT
- End Connections:
- FNPT
- Flow Rate:
- 50 gpm
- Height:
- 43-1/2 in
- Horsepower:
- 2 hp
- Impeller:
- Vortex
- Length:
- 17-1/4 in
- Material:
- Cast Iron
- Maximum Feet of Head:
- 185
- Maximum Temperature:
- 104
- Phase:
- Single Phase
- Power Source:
- Electric
- Proposition 65:
- WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birthdefects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
- Pump Body Material:
- Cast Iron
- Pump Motor Type:
- Thermally Protected
- Pump Mounting:
- Free Standing
- Pump Phase:
- 1
- Pump Stage:
- 2
- RPM:
- 3450
- Turn On/Turn Off Levels:
- Turn-on 15 in/Turn-off 8 in
- UL Listed:
- UL 778
- UPC:
- 671812114669
- VA Cat 60 Hz:
- 230
- Volts:
- 208-230V
- Weight:
- 123 lb
- Width:
- 16-1/4 in
