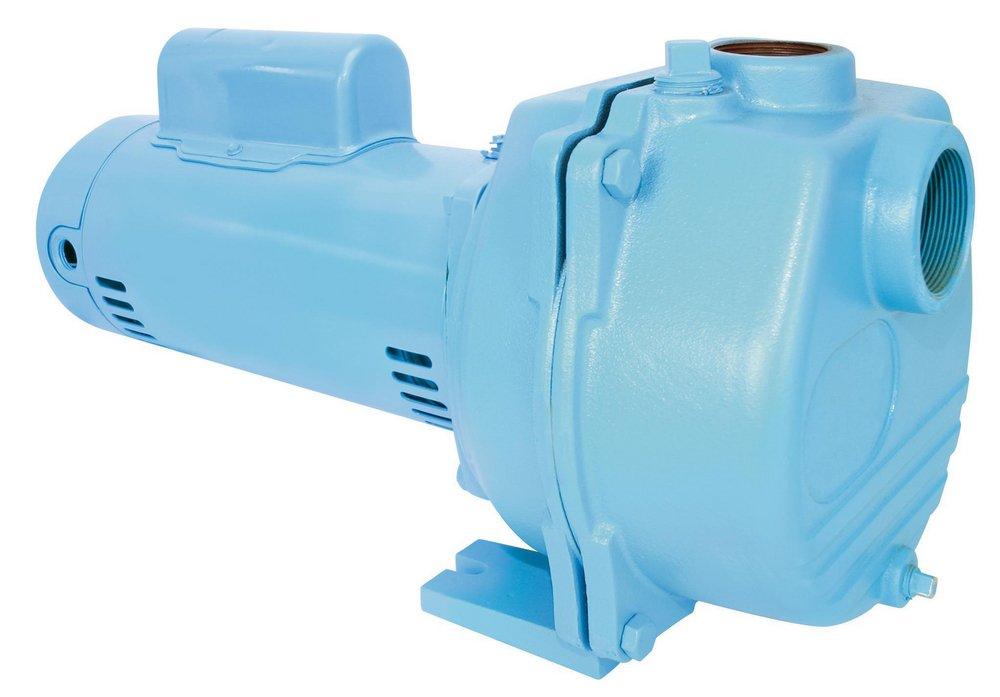

1-1/2 hp 115/230V 90 gpm 20 psi Sprinkler Pump
Little Giant
1-1/2 hp 115/230V 90 gpm 20 psi Sprinkler Pump
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Little Giant
1-1/2 hp 115/230V 90 gpm 20 psi Sprinkler Pump
558295
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- BUILT TO LAST: Rugged cast iron pump housing and seal plate; Noryl impeller for well water (down to 25-feet deep) and lake water
- DUAL VOLTAGE MOTOR: select 115 Volts or 230 Volts to match incoming power source; factory set to 230 Volts but easy to switch to 115 Volts (see manual)
- ONE-TIME PRIMING: No additional priming is required after initial fill; follow priming instructions in the Owner's Manual
- Up to 90 GPM at 10 PSI; 64 GPM at 30 PSI - can handle up to 21 sprinkler heads with 1/2-inch fittings or 10 sprinkler heads with 3/4-inch fittings per zone; maximum 46 PSI
- SPECIFICATIONS: 1.5 HP, 115/230 Volts, 2-inch Female NPT threaded intake; 1.5-inch Female NPT threaded discharge; 24.0 starting Amps at 115 Volts; 12 starting Amps at 230 Volts
Specifications
- AMP:
- 50
- Discharge:
- 1-1/2 in
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- Flow Rate:
- 90 gpm
- Height:
- 10-1/20 in
- Horsepower:
- 1-1/2 hp
- Impeller:
- Noryl
- Length:
- 19-13/20 in
- Material:
- Cast Iron, Rubber, Stainless Steel, Steel
- Material Type:
- Buna-N
- Maximum Feet of Head:
- 111
- Power Source:
- AC
- Pressure - Maximum:
- 47 psi
- Product Type:
- Pump
- Pump Application:
- Irrigation
- Pump Body Material:
- Cast Iron
- Pump Phase:
- 1
- UPC:
- 010121119598
- Volts:
- 115/230V
- Width:
- 9-63/100 in
