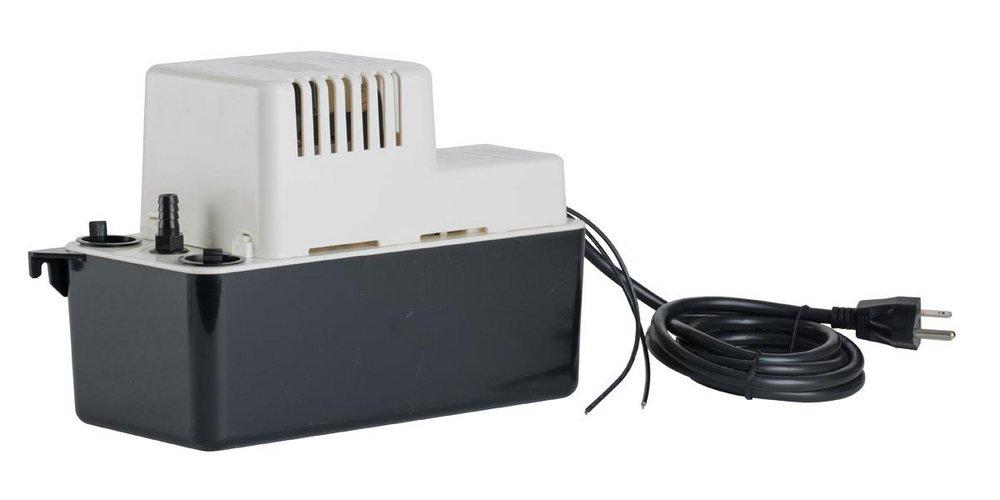

115V Condensate Removal Pump with Safety Switch
Little Giant
115V Condensate Removal Pump with Safety Switch
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 5 Pallet: 120
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Little Giant
115V Condensate Removal Pump with Safety Switch
554425
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers
- HIGH PERFORMANCE MOTOR: 1/30 HP, 1.5 Amps, 93 Watts, 115 Volts, 60 Hz, thermally protected, fan-cooled motor; CSA listed in the USA and Canada
- BUILT TO LAST: stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standards
- PUMP WITH SAFETY SWITCH: can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
- SPECIFICATIONS: 3/8-inch OD barbed discharge, 80 GPH at 1-foot head, 20-foot shut-off, up to 8.7 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140 F, equipped with safety switch
- Suitable for high-efficiency furnace condensation
- Safety switch models can be wired to sound alarm or shut down air conditioner to prevent overflow
Specifications
- AMP:
- 1.5
- Connection Type:
- Barbed
- Cord Length:
- 6 ft
- Depth:
- 11 in
- Discharge:
- 3/8 in
- Discharge Pressure:
- 8.6
- End Connection 1:
- Barbed
- End Connections:
- Barbed
- Flow Rate:
- 80 gph
- Frequency:
- 60
- Height:
- 7 in
- Horsepower:
- 1/3 hp
- Impeller:
- Polypropylene
- Length:
- 11 in
- Material:
- Plastic
- Material Type:
- ABS
- Maximum Feet of Head:
- 20
- Power Source:
- AC
- Proposition 65:
- WARNING: Cancer - www.P65Warnings.ca.gov
- Pump Application:
- Water Treatment
- Pump Body Material:
- Plastic
- UPC:
- 010121544253
- Volts:
- 115V
- Watts:
- 93 W
- Width:
- 5 in
