1/3 HP 115V Cast Iron Submersible Sump Pump with 10 ft. Cord

Little Giant

6 Series 1/3 HP 115V Cast Iron Submersible Sump Pump with 10 ft. Cord

  • Fast #
  • Part #L506158
  • Item #66304
  • Manufacturer Part #506158
5 out of 5 Customer Rating
Brand image

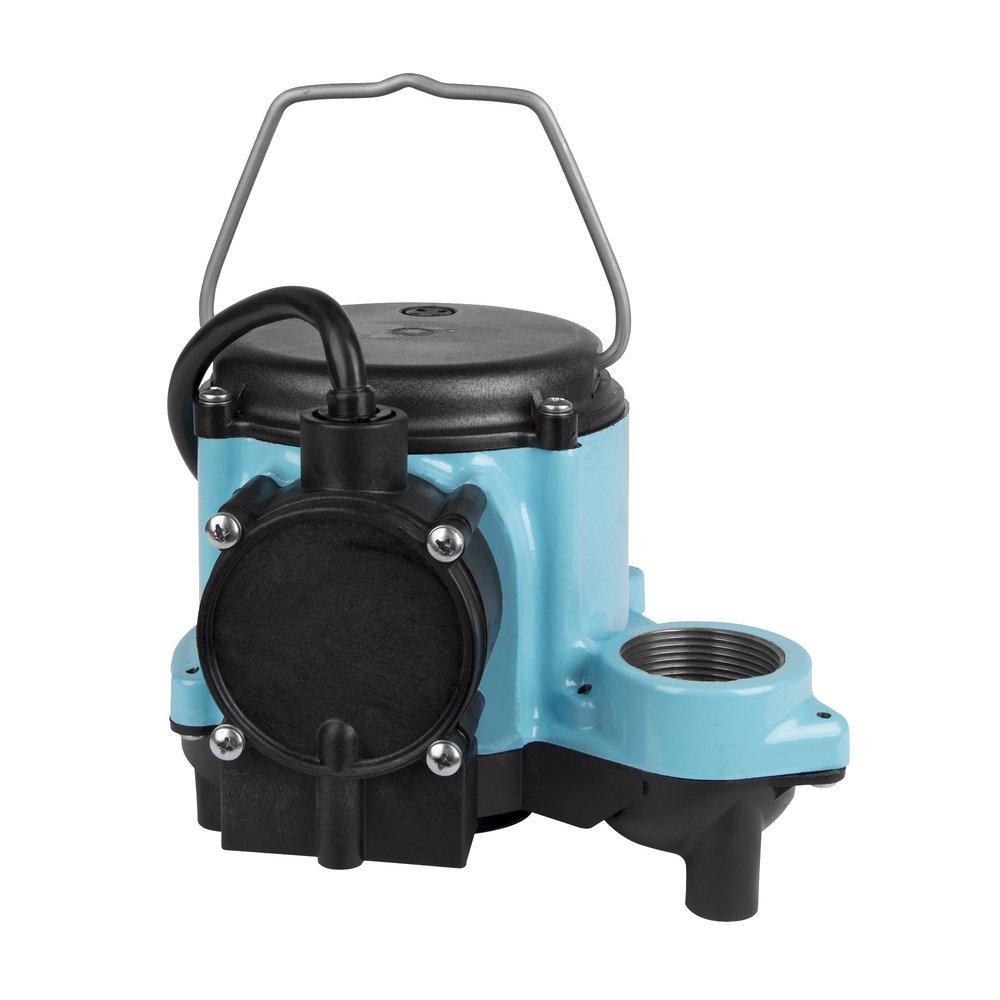

Little Giant 115V Automatic Cast Iron Sump Pump

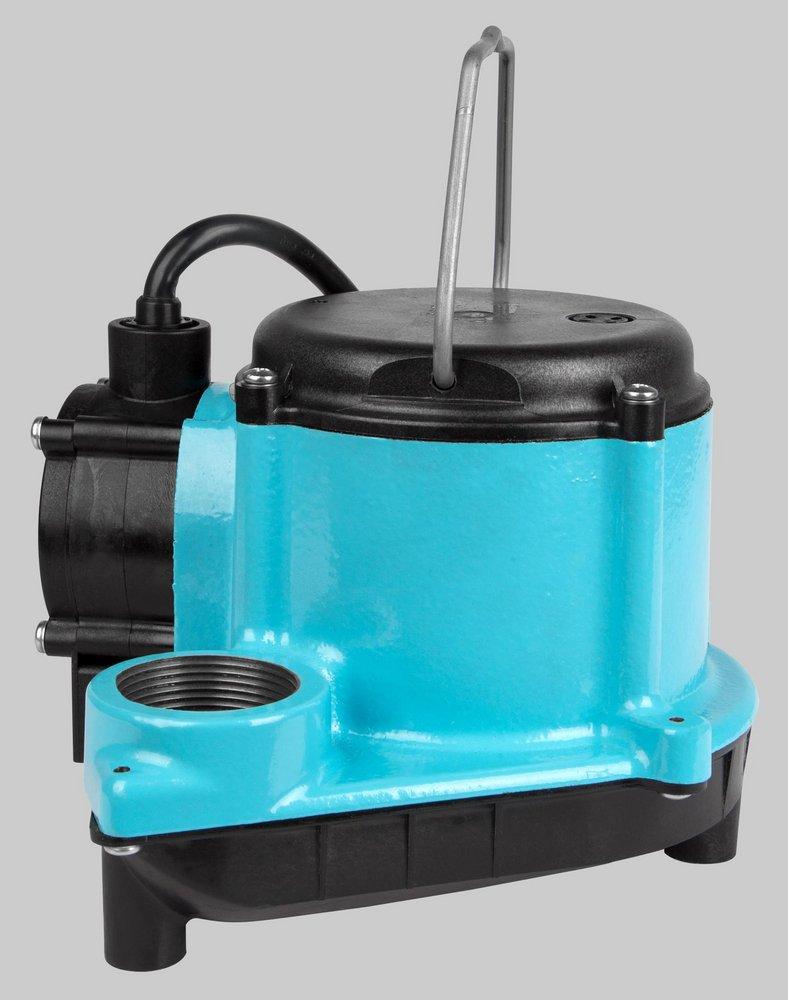

Little Giant 115V Automatic Cast Iron Sump Pump

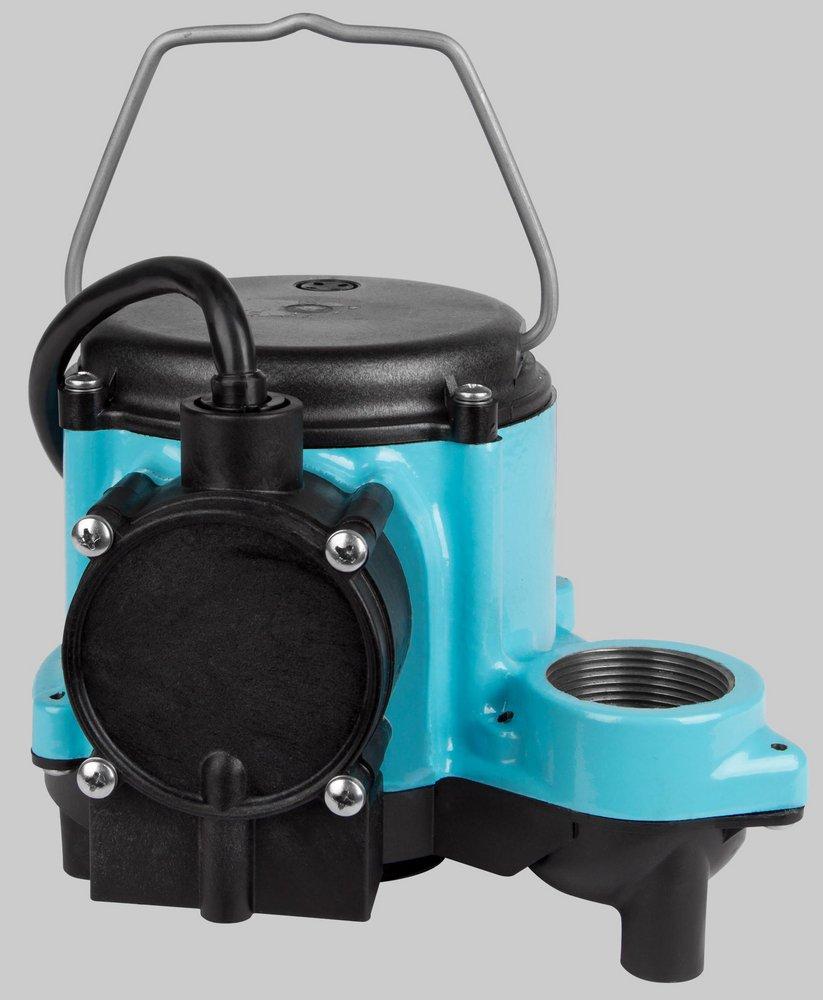

Little Giant 115V Automatic Cast Iron Sump Pump
Little Giant 115V Automatic Cast Iron Sump Pump
Little Giant 115V Automatic Cast Iron Sump Pump
Little Giant 115V Automatic Cast Iron Sump Pump
null
Little Giant

6 Series 1/3 HP 115V Cast Iron Submersible Sump Pump with 10 ft. Cord

  • Fast #
  • Part #L506158
  • Item #66304
  • Manufacturer Part #506158
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 4 Pallet: 128
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • AUTOMATIC SUBMERSIBLE SUMP PUMP: with integral diaphragm switch activates when water reaches 7 to 10 inches and shuts off when water drops down between 1 and 4 inches
  • BUILT TO LAST: Epoxy-coated cast iron housing; non-clog vortex style impeller; upper and lower bearings; nitrile/carbon/ceramic mechanical shaft seal
  • CONTINUOUS DUTY MOTOR: 1/3 HP shaded pole motor, 9.0 running Amps, 14.3 starting Amps, 720 Watts, thermally protected, CSA listed in the USA and Canada
  • APPLICATIONS: designed for sump pump systems and general water transfer application; must sit in water to activate the switch
  • SPECIFICATIONS: 1/3 HP; 115 Volts; 50/60 Hz; 9.0 running Amps; 14.3 starting Amps; 720 Watts; 2760 GPH at 5-ft. lift; 18-ft. shut-off; 7.8 PSI; 10-ft. cord; 1.5-inch FNPT discharge
  • 10 ft cord
  • 1/3 hp motor
  • Requires Certification

Specifications

AMP:
9
Automatic Shut-Off:
Yes
CSA Certified:
Yes
Coating:
Epoxy
Collection:
6 Series
Connection Type:
FPT
Cord Length:
10 ft
Corded Cordless:
Corded
Depth:
8-1/2 in
Discharge:
1-1/2 in
Discharge Configuration:
Vertical
Frequency:
60
Height:
6 in
Horsepower:
1/3 hp
Impeller:
Nylon
Length:
9.5000 in
Maximum Feet of Head:
18
Maximum Temperature:
125
NSF Certified:
No
Pressure - Maximum:
7.8 psi
Product Type:
Submersible
Proposition 65:
WARNING: Cancer - www.P65Warnings.ca.gov
Pump Body Material:
Cast Iron
Pump Phase:
1
Turn On/Turn Off Levels:
Turn-on 10 in/Turn-off 4 in
UL Listed:
No
UPC:
010121061583
Volts:
115V
Watts:
720 W
Weight:
17 lb
Width:
7-1/2 in
