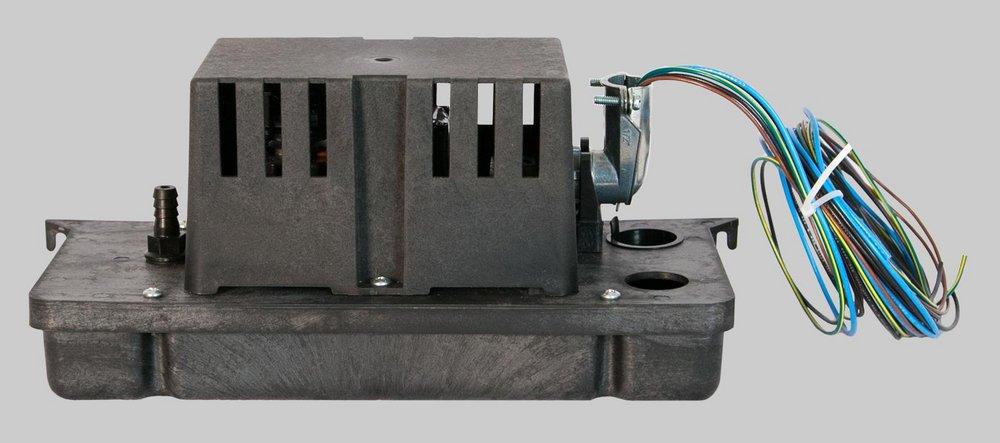

Condensate pump, 115V, 60HZ, 72" leads for Plenum Applications
This product has been replaced by
Little Giant 230V Condensate Removal Pump
Manufacturer Part #554222101
Manufacturer Part #554222101
Little Giant
Condensate pump, 115V, 60HZ, 72" leads for Plenum Applications
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 5 Pallet: 160
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Little Giant
Condensate pump, 115V, 60HZ, 72" leads for Plenum Applications
554220102
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- The pump meets the requirements of UL 2043 and is labeled “For Plenum Applications”.
- 1/30 hp motor
- 1-3/4" low profile tank height ideal for tight spaces
- Vertical centrifugal pump design
- 1.2 quart (1.1 liters) capacity tank
- Automatic start and stop switch
- 3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump)
- 1-1/8" diameter inlet
- Float-activated auxiliary high-level switch
- Thermally protected, fan-cooled motor
Documents
Specifications
- AMP:
- 0.6
- CSA Certified:
- Yes
- Cord Length:
- 6 ft
- Diameter - Inside 1:
- 1-1/8 in
- Discharge:
- 3/8 in
- Discharge Pressure:
- 8.6
- Flow Rate:
- 1.33 gpm
- Height:
- 5-3/25 in
- Horsepower:
- 1/3 hp
- Length:
- 12 in
- Material:
- Plastic
- Material Type:
- Polypropylene
- Maximum Feet of Head:
- 17
- Proposition 65:
- WARNING THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS, INCLUDING CARBON BLACK, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO www.P65Warnings.ca.gov
- Pump Body Material:
- Polypropylene
- UL Listed:
- UL 2043
- Volts:
- 230V
- Watts:
- 60 W
- Width:
- 5 in
