1/3 HP 115V Cast Iron Submersible Sump Pump with 3.5 gal Tank
Little Giant
Drainosaur® 1/3 HP 115V Cast Iron Submersible Sump Pump with 3.5 gal Tank
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 36
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Little Giant
Drainosaur®
1/3 HP 115V Cast Iron Submersible Sump Pump with 3.5 gal Tank
506065
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- APPLICATIONS: compact system ideal for collecting and removing water from laundry trays/sinks, lavatories and wet bar sinks, dehumidifiers, air conditioners, water softeners and more

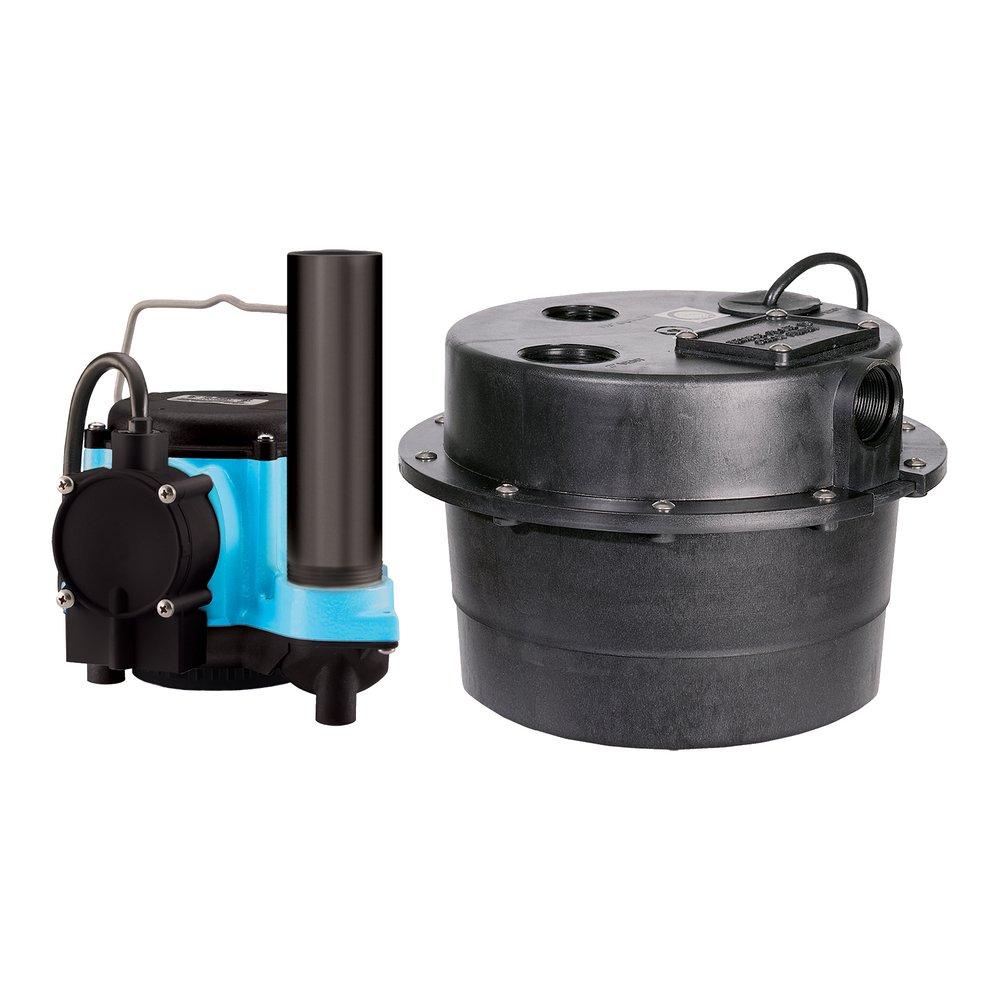

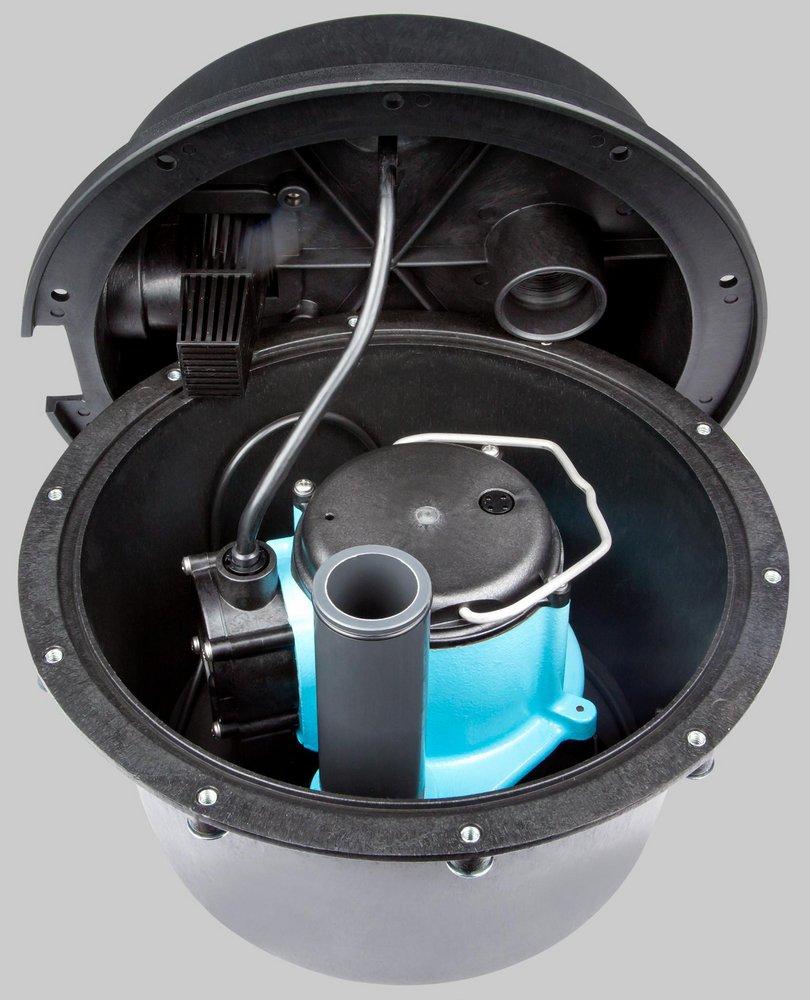

- COMPACT SELF-CONTAINED PREASSEMBLED SUMP SYSTEM: includes 1/3 HP 2760 GPH automatic sump pump, 3.5 gallon polypropylene basin, piping, multiple adapters and O-rings
- INTEGRAL (BUILT-IN) DIAPHRAGM SWITCH: automatically activates pump when water reaches 4 to 7 inches; pump shuts off when water falls between 1 and 3 inches
- INCLUDES: two 1-1/2' MNPT x 2' slip adapters for inlet and discharge; one 2' MNPT x 1-1/2' slip adapter for vent; removal filter in cover; NOT INCLUDED: check valve, discharge pipe and union
- SPECIFICATIONS: 1/3 HP, 115-Volts, 60 Hz; 9 running Amps; 720 Watts; 2760 GPH at 5-Ft. Lift; 18-Ft. shut-off; 7.8 PSI; 3.5 gallon basin; integral diaphragm switch
- IAPMO Certified
- Integral Diaphragm Switch Type
- 1/3 hp motor
- CCSAus listed (pump only)
Specifications
- AMP:
- 9
- Automatic Shut-Off:
- Yes
- CSA Certified:
- Yes
- Collection:
- Drainosaur®
- Connection Type:
- FPT
- Cord Length:
- 10 ft
- Corded Cordless:
- Corded
- Depth:
- 14-1/2 in
- Discharge:
- 1-1/2 in
- Discharge Configuration:
- Vertical
- Frequency:
- 60
- Height:
- 10-11/20 in
- Horsepower:
- 1/3 hp
- Impeller:
- Nylon
- Length:
- 14.5000 in
- Material:
- Cast Iron
- Maximum Feet of Head:
- 18
- Maximum Temperature:
- 125
- NSF Certified:
- No
- Pressure - Maximum:
- 7.8 psi
- Product Type:
- Submersible
- Proposition 65:
- WARNING THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS, INCLUDING CARBON BLACK, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO www.P65Warnings.ca.gov
- Pump Body Material:
- Cast Iron
- Pump Phase:
- 1
- Turn On/Turn Off Levels:
- Turn-on 7 in/Turn-off 3 in
- UL Listed:
- No
- UPC:
- 010121060654
- Volts:
- 115V
- Watts:
- 720 W
- Weight:
- 25 lb
- Width:
- 14-1/2 in
