230V Condensate Removal Pump

Little Giant

VCC-20-P Series 230V Condensate Removal Pump

  • Fast #
  • Part #L554222101
  • Item #9920646
  • Manufacturer Part #554222101
3.3 out of 5 Customer Rating
Brand image

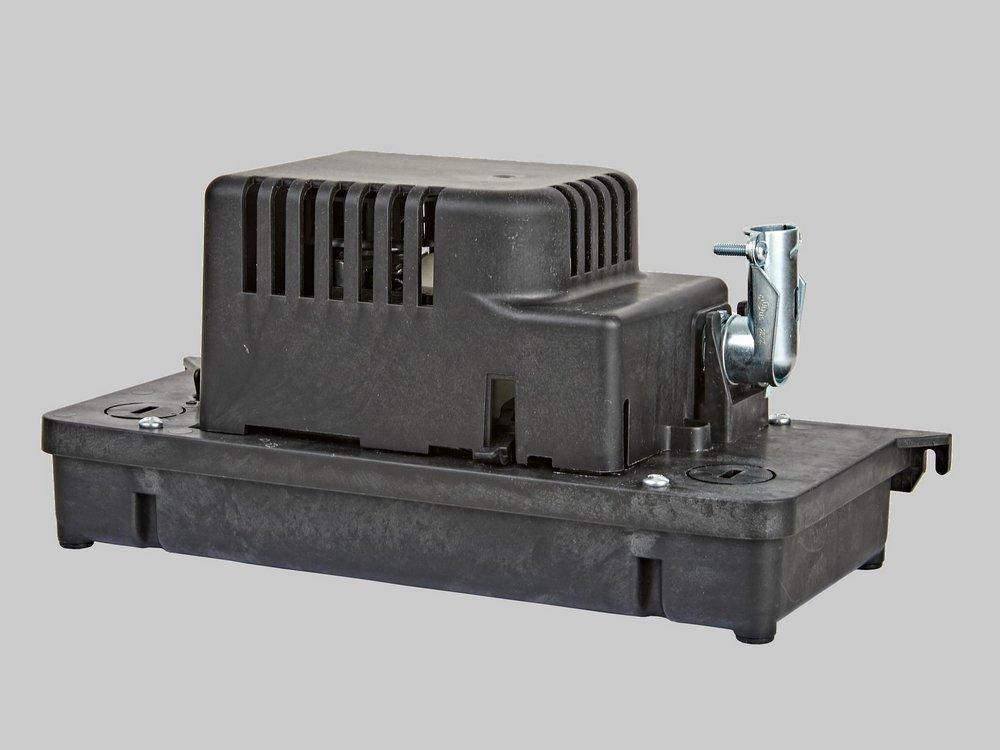

VCCA-20-P 230V 60HZ 6FT 1/3 GALLON ABS TANK PUMP

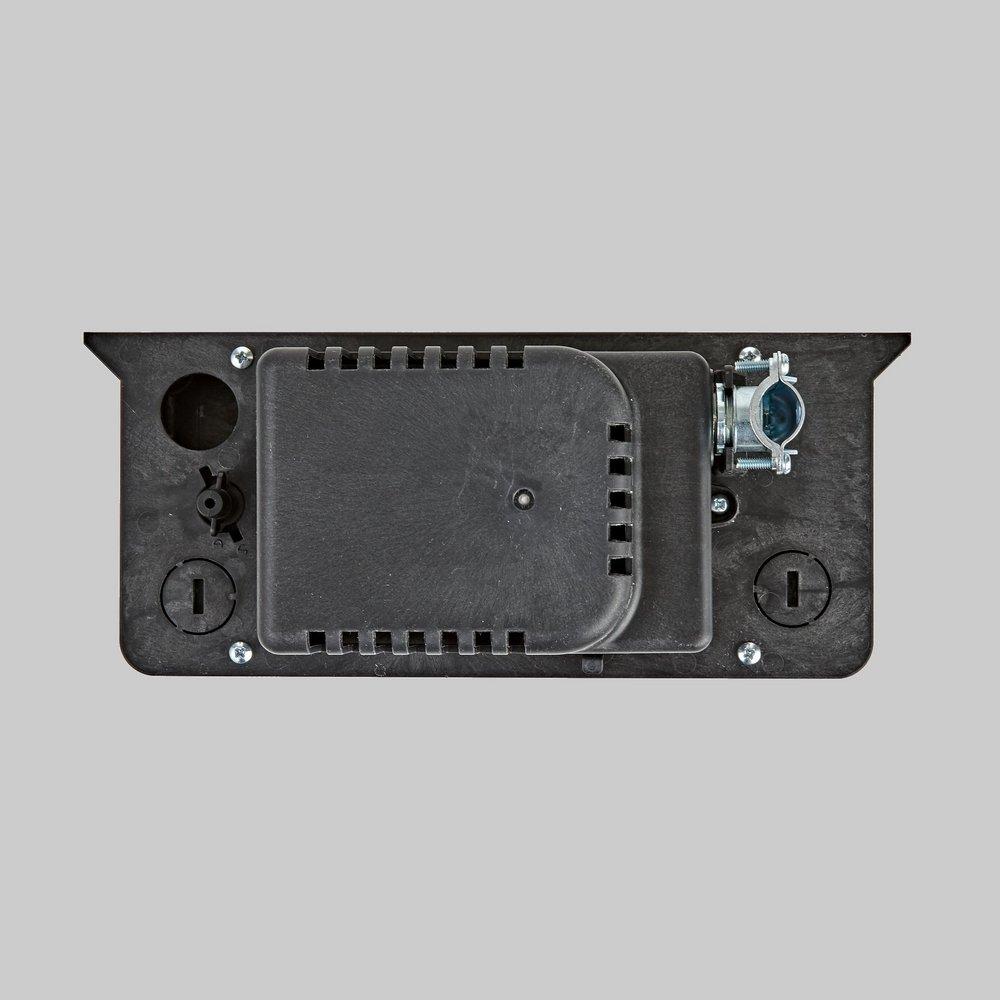

VCCA-20-P 230V 60HZ 6FT 1/3 GALLON ABS TANK PUMP
VCCA-20-P 230V 60HZ 6FT 1/3 GALLON ABS TANK PUMP
VCCA-20-P 230V 60HZ 6FT 1/3 GALLON ABS TANK PUMP
VCCA-20-P 230V 60HZ 6FT 1/3 GALLON ABS TANK PUMP
VCCA-20-P 230V 60HZ 6FT 1/3 GALLON ABS TANK PUMP
Little Giant

VCC-20-P Series 230V Condensate Removal Pump

  • Fast #
  • Part #L554222101
  • Item #9920646
  • Manufacturer Part #554222101
3.3 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • APPLICATIONS: designed for automatic collection and removal of condensate in tight plenum spaces; meets Underwriters' Laboratories Standard 2043 "suitable for use in air handling spaces"
  • SAFETY SWITCH WIRED: Overflow detection switch wiring included with 72-inch leads
  • FEATURES: 72-inch 3-conductor lead wires with adjustable conduit fitting for 1/2" diameter flexible metal conduit; pump switch test level; rubber feet; three 1-1/8" diameter inlets; cCSAus listed
  • MOTOR SPECIFICATIONS: 230 Volt, 1/30 HP thermal overload protected motor; 50/60 Hz; 0.6 Amps at 50 Hz; 0.5 Amps at 60 Hz; 75 Watts; 6-ft. cord; must be hard wired
  • PUMP SPECIFICATIONS: 80 GPH at 1-ft. lift; 17-ft. shutoff; maximum 7.4 PSI; 1/4-turn, 2 discharge adapters for 3/8-inch ID tubing or 3/8-inch copper tubing; rated to 140°F
  • Automatic start and stop switch
  • 3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump)
  • 1-1/8" diameter inlet
  • Float-activated auxiliary high-level switch
  • Thermally protected, fan-cooled motor
  • Requires Certification

Documents

SPECIFICATION

Specifications

AMP:
0.6
Automatic Shut-Off:
Yes
CSA Certified:
Yes
Collection:
VCC-20-P Series
Cord Length:
6 ft
Depth:
5-6/25 in
Diameter - Inside 1:
1-1/8 in
Discharge:
3/8 in
Discharge Pressure:
8.6
Flow Rate:
80 gph
Frequency:
60
Height:
5-6/25 in
Horsepower:
1/30 hp
Impeller:
Polypropylene
Length:
11.9900 in
Material:
Plastic
Material Type:
Polypropylene
Maximum Feet of Head:
17
Maximum Temperature:
140
Power Source:
Electric
Pump Body Material:
Plastic
Pump Phase:
1
UL Listed:
UL 2043
UPC:
029753005841
Volts:
230V
Watts:
75 W
Width:
5-3/100 in
