115V Condensate Removal Pump with Safety Switch

Little Giant

VCMA-15 Series 115V Condensate Removal Pump with Safety Switch

  • Fast #
  • Part #L554405
  • Item #1095718
  • Manufacturer Part #554405
4.8 out of 5 Customer Rating
Brand image

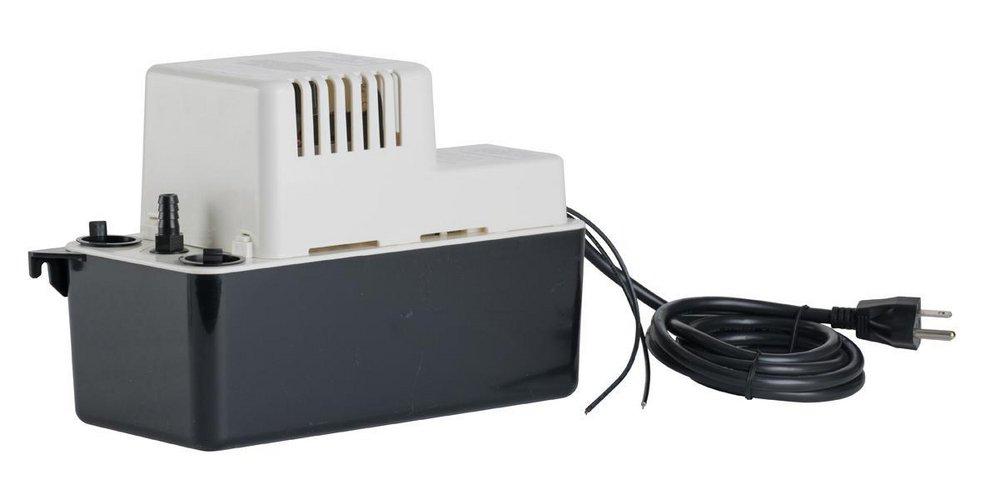

Little Giant 60W 1A 1/50 hp 65 gph ABS Condensate Pump with Safety Switch
Little Giant 60W 1A 1/50 hp 65 gph ABS Condensate Pump with Safety Switch
Little Giant

VCMA-15 Series 115V Condensate Removal Pump with Safety Switch

  • Fast #
  • Part #L554405
  • Item #1095718
  • Manufacturer Part #554405
4.8 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 5
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Available Nearby
    0  in  Hilliard, OH
    Available in 1 store nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Details

  • AUTOMATIC CONDENSATE PUMP: features a vertical-type switch to reduce footprint and is designed to automatically remove condensate produced by boilers, furnaces, air conditioners and de-humidifiers
  • THERMALLY PROTECTED MOTOR: 1/50 HP, 1 Amp, 60 Watts, 115 Volts, 60 Hz, fan-cooled motor; CSA listed in the USA and Canada
  • BUILT TO LAST: stainless steel motor shaft, thermal overload protected motor; CSA certified to US and Canadian standards
  • PUMP WITH SAFETY SWITCH: can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow
  • SPECIFICATIONS: 1/50 HP; 115 Volts, 1 Amp, 60 Watts, 3/8-inch OD barbed discharge, 65 GPH at 1-foot head, 15-foot shut-off, maximum 6.5 PSI, 3 inlet drain holes, 6-foot cord; maximum water temperature: 140 F, safety switch included
  • Thermally protected, fan cooled motor
  • Built-in wall mount tabs on tank
  • 6 ft, 3-conductor cable with grounded 3-prong plug
  • Requires Certification

Specifications

AMP:
1
Collection:
VCMA-15 Series
Connection Type:
Barbed
Cord Length:
6 ft
Depth:
11 in
Discharge:
3/8 in
End Connection 1:
Barbed
End Connection 2:
Barbed
End Connections:
Barbed
Flow Rate:
65 gph
Frequency:
60
Height:
7 in
Horsepower:
1/50 hp
Impeller:
Polypropylene
Length:
11 in
Material:
Plastic
Maximum Feet of Head:
15
Power Source:
Electric
Proposition 65:
WARNING THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS, INCLUDING CARBON BLACK, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER. FOR MORE INFORMATION GO TO www.P65Warnings.ca.gov
Pump Application:
Furnaces
Pump Body Material:
Plastic
Pump Mounting:
Vertical
UL Listed:
Yes
UPC:
010121544055
Volts:
115V
Watts:
60 W
Width:
5 in
