48 GPD 50 PSI w/FASTPRIME™ Head PVDF
LMI

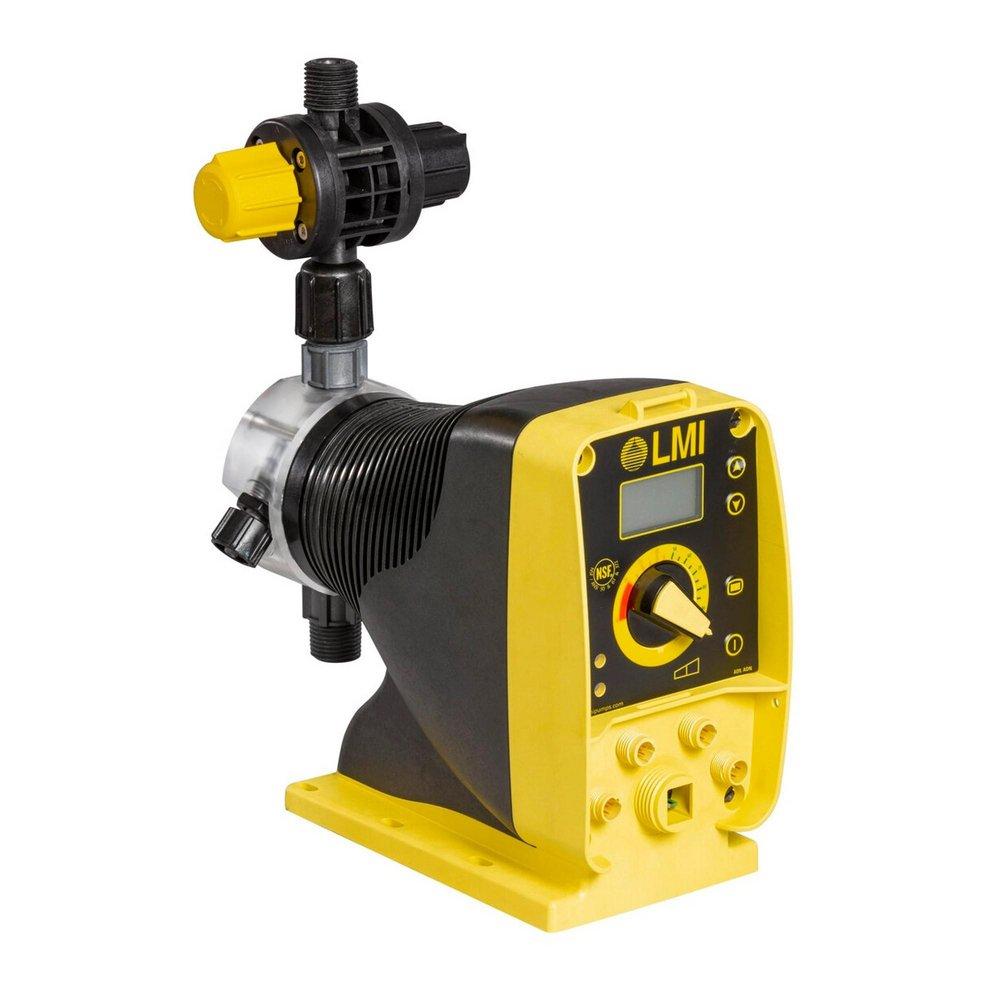

EXCEL® AD9 Series 48 GPD 50 PSI w/FASTPRIME™ Head PVDF
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
LMI
EXCEL® AD9 Series
48 GPD 50 PSI w/FASTPRIME™ Head PVDF
AD961-843SI
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Digital display with stroke adjustment knob
- Output can be controlled manually or by an external device
- External signal control options: 4-20mA, pulse, remote on/off, 24 VDC, and 7-day timer
- Separate outputs include: 4-20mA, pulse, and alarm function
- Turndown ratio: 1000:1
- Maximum viscosity: 200 cP
- FASTPRIME™ head assembly allows for efficient priming without depressurizing the discharge line
- Suction lift: 5 feet maximum
Specifications
- Collection:
- EXCEL® AD9 Series
- Depth:
- 11-1/4 in
- End Connection 1:
- OD Tube
- End Connection 2:
- OD Tube
- End Connections:
- OD Tube x OD Tube
- Fitting Size 1:
- 3/8 in
- Fitting Size 2:
- 3/8 in
- Fitting Sizes:
- 3/8 in x 3/8 in
- Flow Rate:
- 48 gpd
- Height:
- 10-24/25 in
- Material:
- Plastic, Ceramic
- Material Type:
- PVDF, PTFE
- NEMA:
- NEMA 4X/IP-65
- NSF:
- NSF 61, NSF 372
- Pressure - Maximum:
- 50 psi
- UL Listed:
- Yes
- Volts:
- 120V
- Width:
- 4-49/100 in
