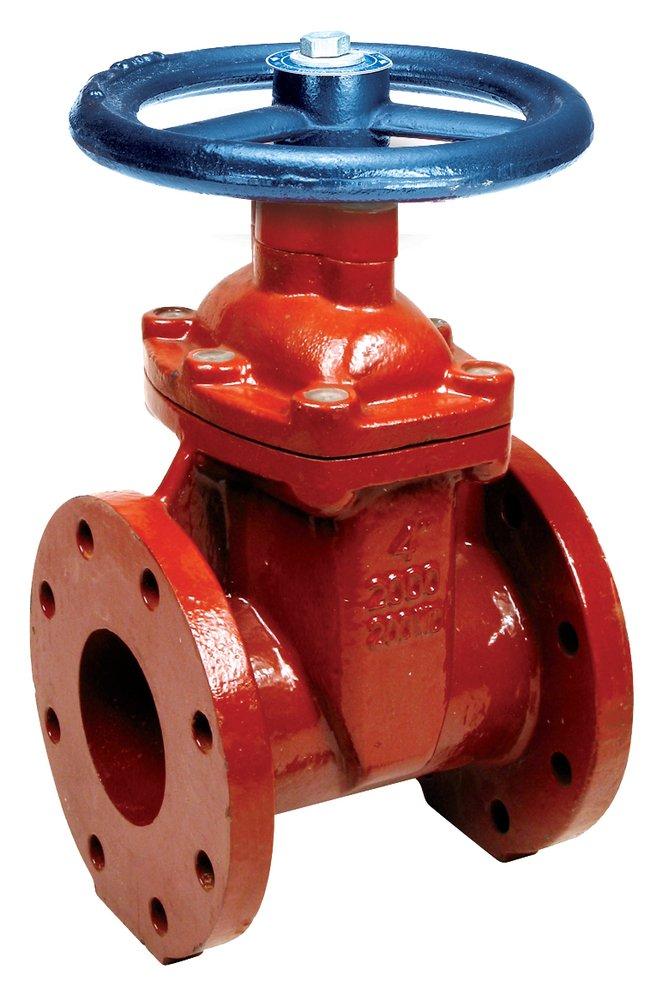

3 in. Epoxy Coated Ductile Iron Full Port Flanged Gate Valve
Matco-Norca
200WD Series 3 in. Epoxy Coated Ductile Iron Full Port Flanged Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Matco-Norca
200WD Series
3 in. Epoxy Coated Ductile Iron Full Port Flanged Gate Valve
200WD10
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Non-Rising Stem
- Ductile iron gate valves feature higher operating pressures and are lighter weight than cast iron
- Valves have fusion bonded epoxy coated housings
- Stainless Steel Stem, Bonnet and bolts
- Buna-N encapsulated Resilient wedge
- Gate Valve-Flanged Ends
- 250 CWP - 2" - 12"
- 200 CWP - 16"
- Ductile Iron Body
- Meets AWWA C-515 Standard
Documents
Specifications
- ANSI:
- ANSI B16.1
- ASTM:
- ASTM A-536 65-45-12, ASTM B-584
- AWWA:
- AWWA C-515, AWWA C-550
- Coating:
- Epoxy
- Collection:
- 200WD Series
- Ductile Iron Pipe Type:
- Ductile Iron Flanged Pipe
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Length:
- 8 in
- Material:
- Ductile Iron, Rubber
- Material Type:
- Buna-N
- Maximum Temperature:
- 230
- NSF Certified:
- No
- Pressure Class:
- 125#
- Recommended Valve Application:
- Water
- UL Listed:
- No
- UPC:
- 082647104976
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- Flanged
- Valve Bonnet Type:
- Bonded
- Valve Disc Material:
- Ductile Iron
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Buna-N
- Valve Size:
- 3 in
- Valve Stem:
- Non-rising
- Valve Type:
- Resilient Wedge Gate Valve
- Width:
- 7-87/100 in
