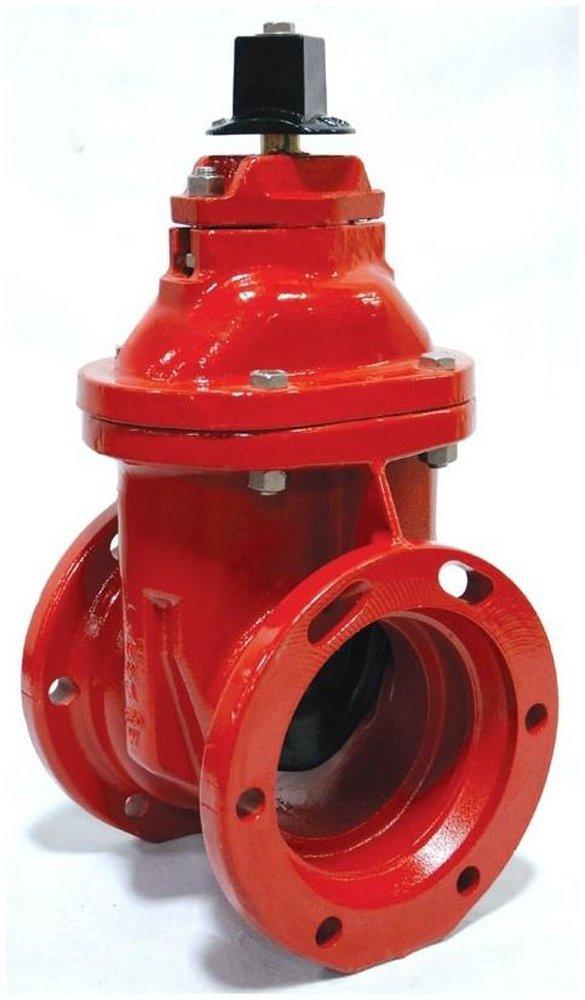

3 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve (Less Accessories)
M&H Valve
Style 4067 3 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve (Less Accessories)
Points
Call for Pricing
Call for Pricing
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
M&H Valve
Style 4067
3 in. Mechanical Joint Ductile Iron Open Left Resilient Wedge Gate Valve (Less Accessories)
4067-01 3 LA OL
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Thrust bearing: Derlin thrust bearings above and below the thrust collar reduce friction and minimize operating torque
- Stainless steel hardware: Stainless steel nuts and bolts provide long-life corrosion protection
- Copper alloy stem: Long, trouble-free life with high strength, non-corrosive copper alloy stem and stem nut
- 100% coated wedge: 100% coated wedge ensures bubble-tight seal every time up to 250 psi. With twin seal design
- Elliptical bolt holes: Hole design on MJ connection eliminates the need for anti-rotation bolts
- Easy storage: Pads on the bottom of all valves keep valve in upright position for easier storage and protection from the elements
- Replaceable O-rings: Two O-ring seals are replaceable with the valve fully open and subjected to full-rated working pressure
- No flat gaskets: O-ring seals at the stuffing box and at the bonnet to body flanges ensure the best possible seal
- Minimal flow loss: Smooth, unobstructed waterway is free of pockets, cavities, and depressions allowing for minimal flow loss and lower pumping costs. All valves accept full size tapping cutter
- Epoxy coating: M&H corrosion resistant fusion-bonded epoxy coating, conforming to AWWA C550 and NSF 61 Certified, protects both inside and outside of valve
Specifications
- ANSI:
- ANSI A21.11
- ASTM:
- ASTM D-429
- AWWA:
- AWWA C-111, AWWA C-509, AWWA C-550
- Application:
- Sediment, Sewage, Water
- Coating:
- Fusion Bonded Epoxy
- Collection:
- Style 4067
- Ductile Iron Pipe Type:
- Ductile Iron Mechanical Joint Pipe
- End Connection 1:
- Mechanical Joint
- End Connection 2:
- Mechanical Joint
- End Connections:
- Mechanical Joint
- FM Approved:
- Yes
- Length:
- 8-1/2 in
- Material:
- Cast Iron, Ductile Iron, Plastic, Rubber, Stainless Steel
- Material Type:
- 18-8, Acetal, EPDM
- NSF:
- NSF 61
- NSF Certified:
- Yes
- Pressure - Maximum:
- 500 psi
- UL Listed:
- Yes
- Valve Body Material:
- Cast Iron
- Valve Body Style:
- Open Left
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- Ductile Iron
- Valve Operator:
- Hand Wheel
- Valve Size:
- 3 in
- Valve Stem:
- Non-rising
- Valve Type:
- Resilient Wedge Gate Valve
- Waterworks Application:
- Sewer
