3 in. No Hub 304 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Gasket

You last purchased this on

Mifab

MI-QXHUB Series 3 in. No Hub 304 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Gasket

This product requires certification to purchase.
Brand image

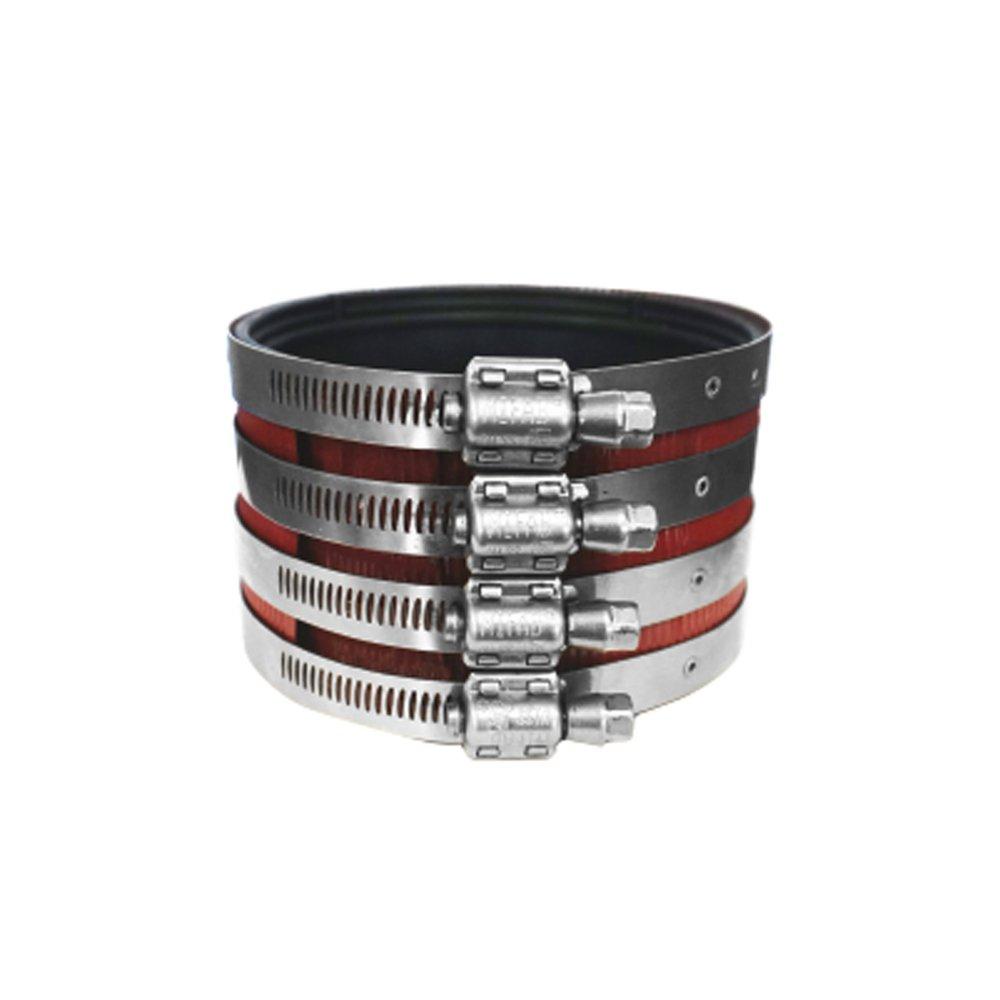

Mifab No Hub 304 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Gasket
You last purchased this on

Mifab

MI-QXHUB Series 3 in. No Hub 304 and 305 Stainless Steel Quick Hub Shield Coupling with Neoprene Gasket

  • Fast #
  • Part #MMIQXHUB3
  • Item #8340550
  • Manufacturer Part #MI-QXHUB-3
4.2 out of 5 Customer Rating
This product requires certification to purchase.
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page
View All Sizes
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping

All Sizes

Frequently Purchased Together

Product Details

  • Four (2" through 4" size), six (5" through 12" size) type 304 stainless steel clamps tightened with 3/8" type 305 stainless steel hex head screws surround the shield to provide the sealing force
  • MI-QXHUB series couplings are tested and certified to the ASTM-C1540-2018 and CSA B602 standards and listed with I.A.P.M.O
  • MIFAB® Series MI-QXHUB (specify size) heavy duty shielded no hub couplings are manufactured with gaskets made from neoprene (meets the requirements of ASTM C-564) housed inside a type 304 stainless steel corrugated shield
  • Quick install - no need to peel back gasket and shield
  • Less skilled labor helper required
  • Faster installation - complete job quicker to make deadlines
  • The MI-QXHUB are tested by IAPMO to comply to the FM 1680-1989 standard (except for markings)
  • The MI-QXHUB are also tested and certified by Intertek testing services to the CAN/ULC S102.2-10 “smoke test”
  • Torque requirements - same 60 to 80 lb torque requirement as regular couplings
  • Fast assembly - assembles over cast iron fitting with ease
  • Requires Certification

Specifications

ASTM:
ASTM C-1460, ASTM C-1540-2018, ASTM C-564
CSA Certified:
CSA B602
Clean Bagged:
No
Collection:
MI-QXHUB Series
End Connection 1:
No Hub
End Connection 2:
No Hub
End Connections:
No Hub
FM Approved:
Yes
Fitting Size 1:
3 in
Fitting Size 2:
3 in
Fitting Sizes:
3 in
Fitting Type:
Coupling, Straight
IAPMO Listed -:
Yes
Length:
3 in
Material:
Rubber, Stainless Steel
Material Type:
304, 305, Neoprene
NSF Certified:
No
Origin:
Global
Pressure - Maximum:
30 psi
Pressure Class:
30#
Schedule Class:
80S
UL Listed:
No
