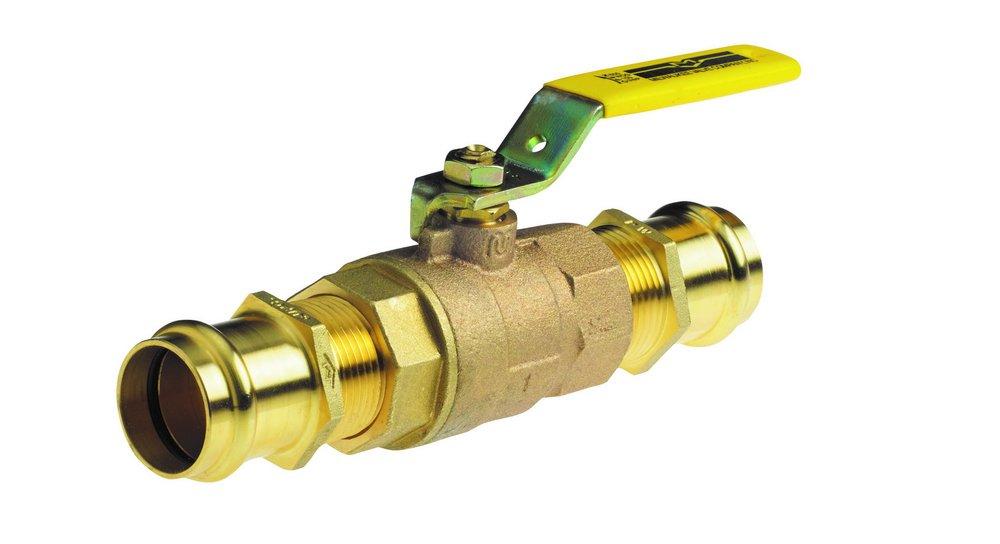

3/4 in. Cast Bronze Full Port Press 200# Ball Valve
You last purchased this on
Milwaukee Valve
BA-100 3/4 in. Cast Bronze Full Port Press 200# Ball Valve
Points
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
-
Pick Up: Not available
-
Shipping: Not available
Purchase history
Milwaukee Valve
BA-100
3/4 in. Cast Bronze Full Port Press 200# Ball Valve
BA-100P2A 34
Order #
Order Date
Job Name
My PO#
Product Details
- Quarter Turn Operation
- Bubble-Tight Shutoff
Specifications
- ASTM:
- ASTM B-584 C84400, ASTM B-283 C37700, ASTM A-276 S31600
- Clean Bagged:
- No
- Collection:
- BA-100
- End Connection 1:
- Press
- End Connection 2:
- Press
- End Connections:
- Press
- FM Approved:
- No
- Handle Material:
- Zinc Plated Steel
- IAPMO Listed -:
- No
- Lead Law Compliance Level:
- Not Compliant, Approved for Non-Potable Water Applications
- Length:
- 6-11/50 in
- MSS:
- MSS SP-110
- Material:
- Cast Bronze
- NSF Certified:
- No
- Pressure - High:
- 200, 600
- Pressure Class:
- 200#
- Recommended Valve Application:
- Potable Water, Oil, Gas
- Temperature Rating:
- 250
- UL Listed:
- No
- Valve Body Material:
- Bronze
- Valve Body Style:
- 2 piece
- Valve Disc Material:
- Chrome Plated Brass
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 3/4 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 0.99 lb
