6 in. Carbon Steel RPTFE Gear Operator Handle Butterfly Valve

You last purchased this on

Milwaukee Valve

HP Series 6 in. Carbon Steel RPTFE Gear Operator Handle Butterfly Valve

  • Fast #
  • Part #MHP1LCS4213U
  • Item #3010558
  • Manufacturer Part #HP1LCS4213 060
4.9 out of 5 Customer Rating
Brand image

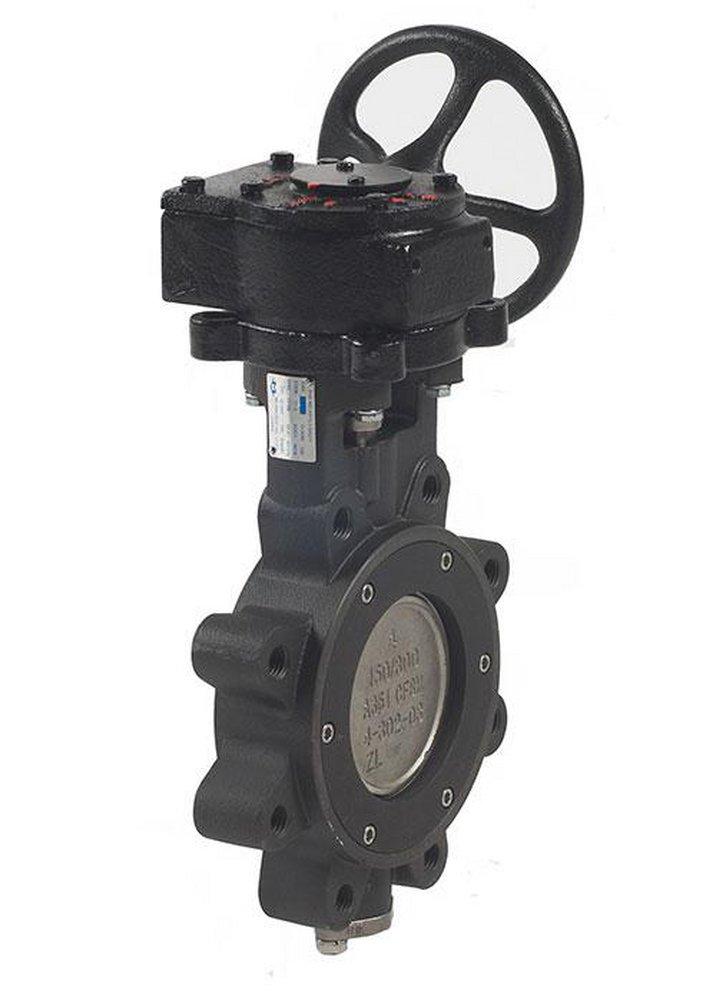

Milwaukee Valve Carbon Steel RPTFE Gear Operator Handle Butterfly Valve
You last purchased this on

Milwaukee Valve

HP Series 6 in. Carbon Steel RPTFE Gear Operator Handle Butterfly Valve

  • Fast #
  • Part #MHP1LCS4213U
  • Item #3010558
  • Manufacturer Part #HP1LCS4213 060
4.9 out of 5 Customer Rating
X Points
EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

EA: 1 IP: 1
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

  • Number of hole 8
  • All valves offer bi-directional bubble-tight sealing at full rated pressure, with lug-bodied valves providing bi-directional dead-end service at full rated pressure
  • The double-offset design provides superior sealing with minimal seat contact and wear
  • The shaft and disc are manufactured as a 1-piece for maximum strength and Cv
  • The position stop on the disc is internally cast to prevent over-travel, while maintaining optimum disc/seat contact
  • Requires Certification

Specifications

ANSI:
ANSI B16.34, ANSI B16.5, ANSI 150, ANSI 300
API:
API 598, API 609B
ASME:
ASME B16.34, ASME B16.5
ASTM:
ASTM A193, ASTM A216, ASTM A240, ASTM A351, ASTM A515
Application:
Cold Working Pressure
Clean Bagged:
No
Collection:
HP Series
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Height:
18-7/10 in
IAPMO Listed:
No
ISO:
ISO 14001:2015, ISO 9001:2015
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
2-1/4 in
MSS:
MSS SP-25, MSS SP-55, MSS SP-61, MSS SP-68
Material:
Carbon Steel
Material Type:
CF8M, RPTFE
Maximum Temperature:
400
NSF Certified:
No
Pressure - High:
285
Pressure - Maximum:
285 psi
Pressure Class:
150#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Cold Working Pressure, Water
UL Listed:
No
Valve Body Material:
Carbon Steel
Valve Body Style:
Lug
Valve Disc Material:
Stainless Steel
Valve Operator:
Gear Operator
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
6 in
Valve Stem:
Blowout-proof
Valve Type:
Butterfly Valve
Width:
11 in
