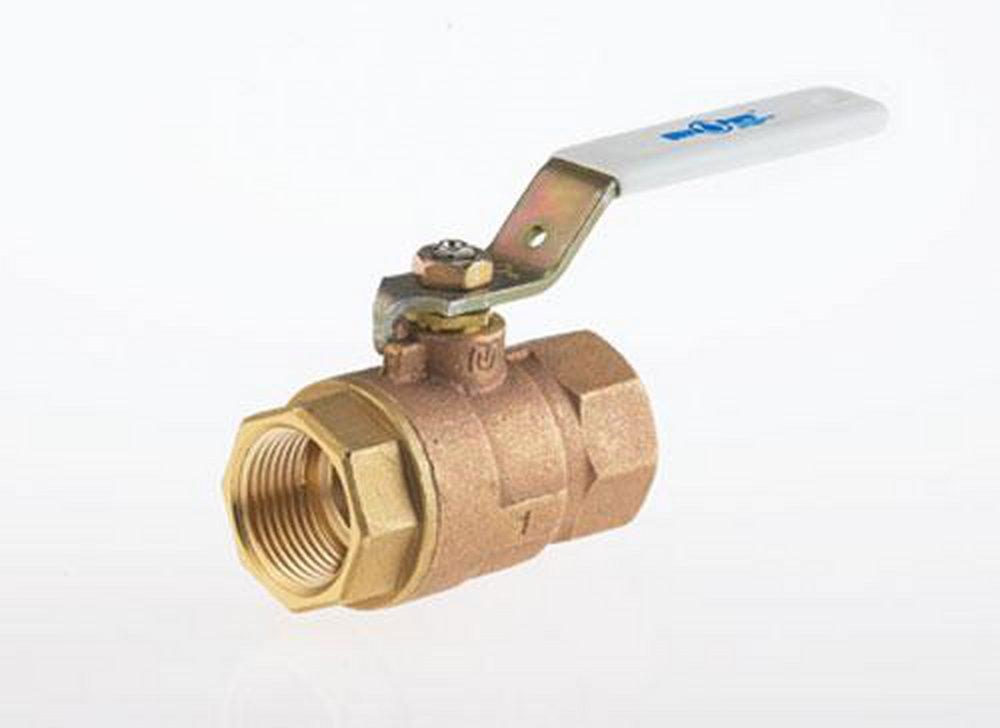

1/2 in. Bronze Full Port Press 200# Ball Valve
Milwaukee Valve
UltraPure 1/2 in. Bronze Full Port Press 200# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 20Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Milwaukee Valve
UltraPure
1/2 in. Bronze Full Port Press 200# Ball Valve
UPBA-100SP2A 12
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Low lead valve for potable water
- Bubble-Tight Shutoff
- Quarter Turn Operation
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Height
1-91/100 in
Length
5-19/100 in
Pressure Class
200#
Pressure - Maximum
200 psi
Valve Size
1/2 in
Weight
1.02 lb
Width
1-11/50 in
Characteristics & Features
Clean Bagged
No
Collection
UltraPure
Handle Material
Zinc Plated Steel
Material
Cast Bronze
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Cast Bronze
Valve Body Style
2 piece
Valve Disc Material
Stainless Steel
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE 15% Glass Filled
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
212
Minimum Temperature
-20
Pressure - High
200
Temperature Range
0 to 212 F
Warranty & Product Information
ANSI
ANSI 372, ANSI 61
ASTM
ASTM B-16 C36000, ASTM B-584 C89833, ASTM A-276 S31600, ASTM B-283 C27450
BAA Compliant
Yes
cUPC Certified
No
Fire Suppression System Rated
No
FM Approved
No
IAPMO Listed
Yes
ISO
ISO 9001:2015, ISO 14001:2015
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
Yes
MSS
MSS SP-110
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UL Listed
No
UPC
697988693555
