3/4 in. Bronze Full Port Press x GHT Ball Valve

Milwaukee Valve

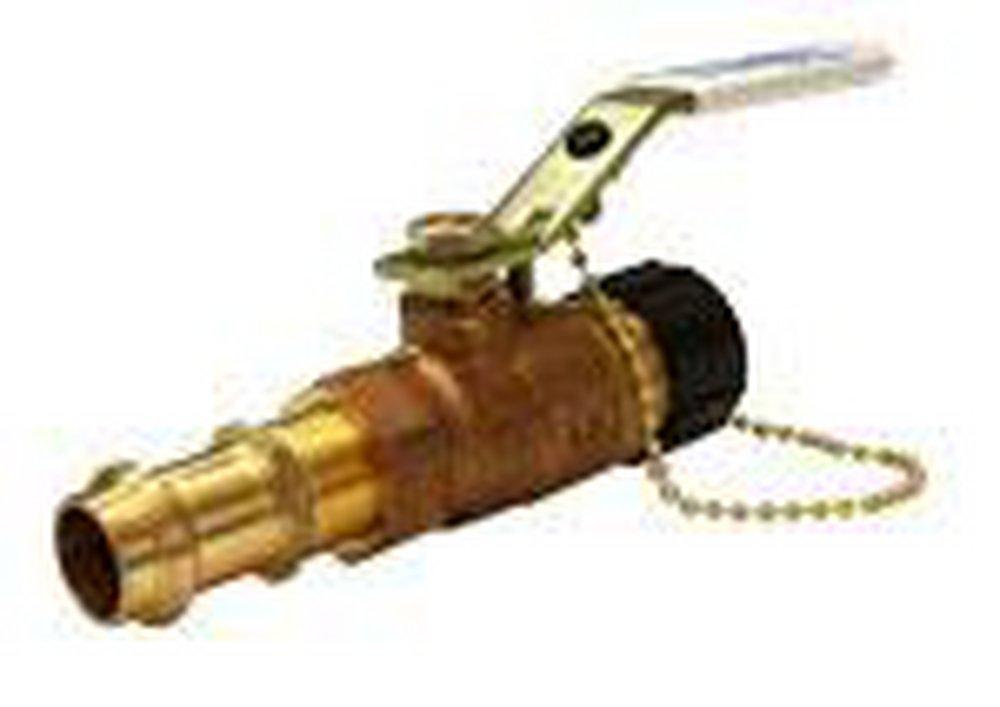

UltraPure 3/4 in. Bronze Full Port Press x GHT Ball Valve

  • Fast #
  • Part #MUPBA100HP1F
  • Item #8813063
  • Manufacturer Part #UPBA-100HP1B 34
5 out of 5 Customer Rating
Brand image
Milwaukee Valve Brass Bronze Full Port Press x GHT Ball Valve
Milwaukee Valve Brass Bronze Full Port Press x GHT Ball Valve
Milwaukee Valve

UltraPure 3/4 in. Bronze Full Port Press x GHT Ball Valve

  • Fast #
  • Part #MUPBA100HP1F
  • Item #8813063
  • Manufacturer Part #UPBA-100HP1B 34
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Two-piece low lead bronze ball valve, 600 WOG, threaded x hose ends
  • Low lead valve for potable water
  • Hose end ball valve with cap and chain
  • Full port
  • 200 psig @ 250°F
  • Dust cap and chain
  • Blowout proof stem
  • Dimensions and workmanship conform to MSS SP-110
  • Requires Certification

Specifications

ANSI:
ANSI 372, ANSI 61
ASTM:
ASTM B-16 C36000, ASTM B-21 C46400, ASTM B-283 C27450, ASTM B-548 C27450
Clean Bagged:
No
Collection:
UltraPure
Color Finish Name:
Bronze
End Connection 1:
Press
End Connection 2:
GHT
End Connections:
Press x GHT
FM Approved:
No
Fire Suppression System Rated:
No
Handle Length (in):
4-31/50 in
Handle Material:
Zinc Plated Steel
Handle Type:
Lever
Height:
2-7/50 in
IAPMO Listed:
Yes
ISO:
ISO 9001:2015, ISO 14001:2015
Length:
2-9/10 in
MA Approved:
No
MSS:
MSS SP-110
Material:
Cast Bronze
Material Type:
RPTFE
Maximum Temperature:
212
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Number of Pieces:
2 Piece
Origin:
Domestic
Pressure - High:
200
Pressure - Maximum:
200 psi
Pressure Class:
200#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.Prop65Warnings.ca.gov
Recommended Valve Application:
Potable Water
Temperature Range:
0 to 212 F
Temperature Rating:
212
UL Listed:
No
UPC:
697988723320
Valve Body Material:
Cast Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Chrome Plated Brass
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE 15% Glass Filled
Valve Size:
3/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
1.5 lb
Width:
1-11/20 in
cUPC Certified:
No
