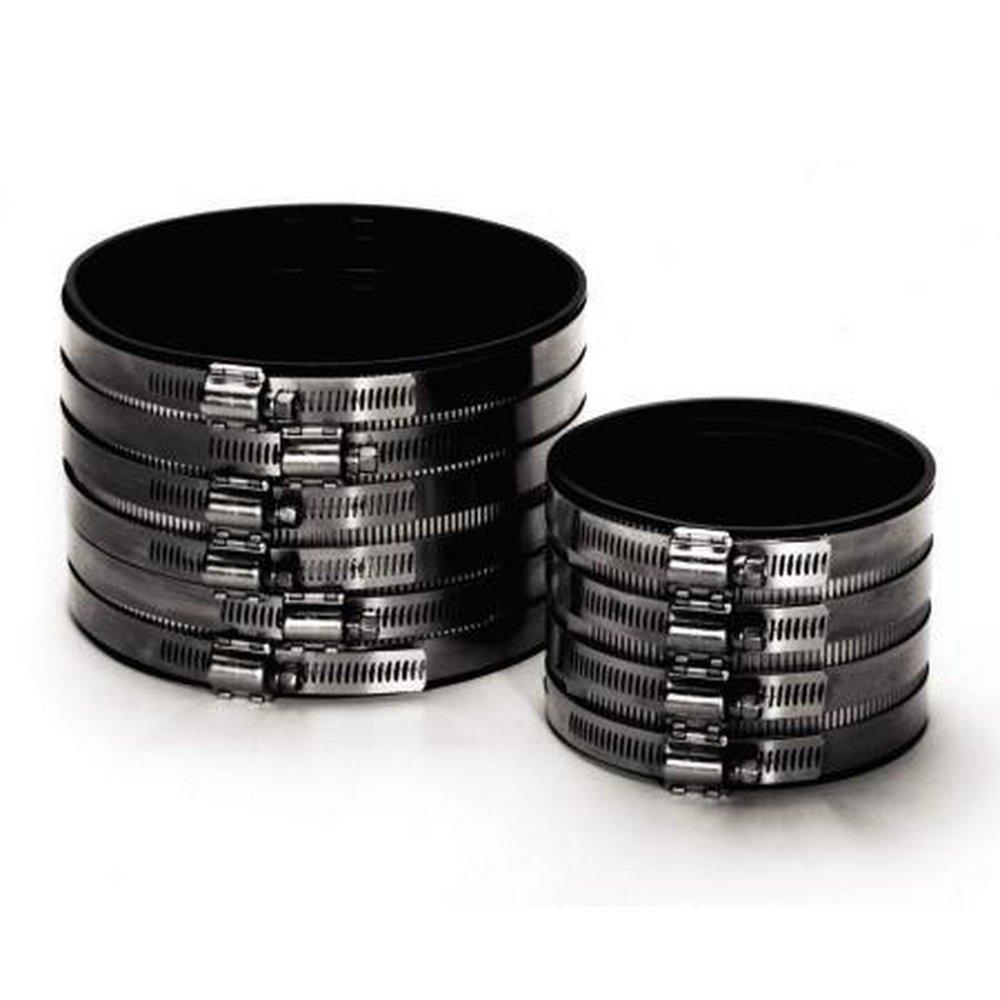

8 in. No-Hub 304L Stainless Steel Heavy Duty Coupling
Mission Rubber
8 in. No-Hub 304L Stainless Steel Heavy Duty Coupling
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 10
How to get it:
-
-
Shipping Not AvailableNot available at this time
All Sizes
Purchase history
Mission Rubber
8 in. No-Hub 304L Stainless Steel Heavy Duty Coupling
C800HW
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- More effective joint movement restraint - Stainless steel strap bands are 12.5% thicker than on traditional no hub couplings providing a positive seal when properly torqued to 80"/lbs
- Stronger more uniform sealing capacity - axially slotted clamp bands tighten independently to accommodate most any variances in outside diameters of Cast Iron pipe and fittings being joined
- Greater surface load bearing - wider 304 series Stainless Steel shield accommodates additional sealing clamps to provide for greater load bearing contact
- Corrosion resistant - 304 series Stainless Steel combined with significant deflection factor makes this coupling highly dependable above and below ground
- Safe and easy to install - flanged gasket helps maintain alignment during installation and tapered ends on shield reduce friction and prevent injury from sharp edges
- Versatile - internal profile of Elastomeric sleeve against intermittent corrugation suits specific performance application of non-potable waste systems
- Higher resistance to shear forces - rugged construction, excellent sealing properties and the arrangement of intermittent corrugations in the outer Stainless Steel band provide resistance to shear forces and help alignment while maintaining flexibility
Dimensions & Measurements
End Connection 1
No Hub
End Connection 2
No Hub
End Connections
No Hub
Fitting Size 1
8 in
Fitting Size 2
8 in
Fitting Sizes
8 in
Characteristics & Features
Clean Bagged
No
Fitting Type
Coupling, Straight
Material
Stainless Steel
Material Type
304L
Schedule Class
80S
Warranty & Product Information
Application
Residential
ASTM
ASTM A-240, ASTM C-1540 2002, ASTM C-564 2003
CSA Certified
CSA 7021 2002
FM Approved
No
IAPMO Listed
Yes
NSF Certified
No
UL Listed
No
UPC
016846191109
