12,000 BTU - Wall Mount - Single Zone Mini-Split - 208/230V

Mitsubishi

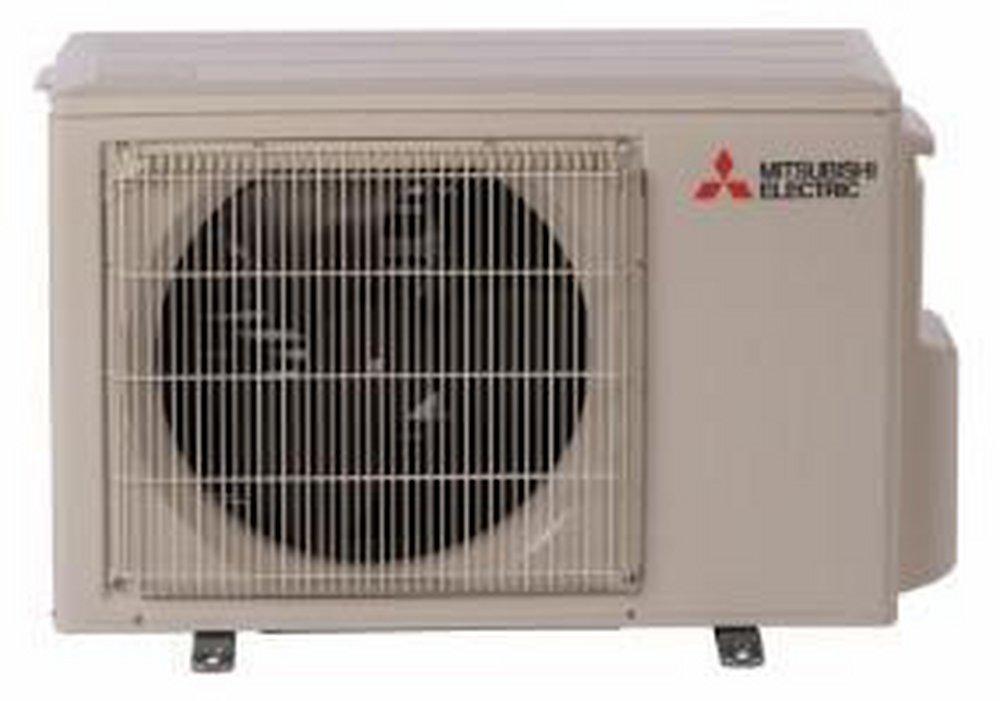

M-Series® 12,000 BTU - Wall Mount - Single Zone Mini-Split - 208/230V

  • Fast #
  • Part #MMUYGL12NAU2
  • Item #7883955
  • Manufacturer Part #MUY-GL12NA-U2
3.2 out of 5 Customer Rating
Brand image
12,000 BTU - Wall Mount - Single Zone Mini-Split - 208/230V
12,000 BTU - Wall Mount - Single Zone Mini-Split - 208/230V
Mitsubishi

M-Series® 12,000 BTU - Wall Mount - Single Zone Mini-Split - 208/230V

  • Fast #
  • Part #MMUYGL12NAU2
  • Item #7883955
  • Manufacturer Part #MUY-GL12NA-U2
3.2 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area
  • Slim wall-mounted indoor units provide zone comfort control
  • The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
  • Inverter-driven compressor and LEV provide high efficiency and comfort while using only the energy needed to maintain maximum performance
  • Multiple fan speed options: Quiet, low, medium, high, super-high, auto
  • Multiple control options available
  • Hand-held remote controller (provided with unit)
  • Kumo cloud® smart device app for remote access
  • Third-party interface options
  • Wired or wireless controllers
  • Requires Certification

  • Green

Specifications

A2L Compatible:
No
AMP:
0.50, 0.76, 1, 15, 7
Application:
Residential
Auto Switching Heat:
No
BTU:
12000
BTU Cooling Rating:
12000 Btu/h
CFM:
1229 ft3/min
Collection:
M-Series®
Compressor Type:
Inverter
Decibel Rating (dB):
49 dB
Depth:
13-9/16 in
EER:
13.0
Energy Star Compliant:
Yes
Height:
21-5/8 in
Indoor Outdoor:
Outdoor
Installation Type:
Wall Mount
Liquid Line (OD):
1/4 in
MBH:
12
Max Fuse Size:
15
Phase:
Single Phase
Refrigerant:
R-410A
Refrigeration Control Type:
LEV
SEER:
23.1
Suction Line (OD):
3/8 in
Tonnage:
1 Ton
Volts:
208/230V
Watts:
1300 W
Weight:
81 lb
Width:
31-1/2 in
Zones:
1
