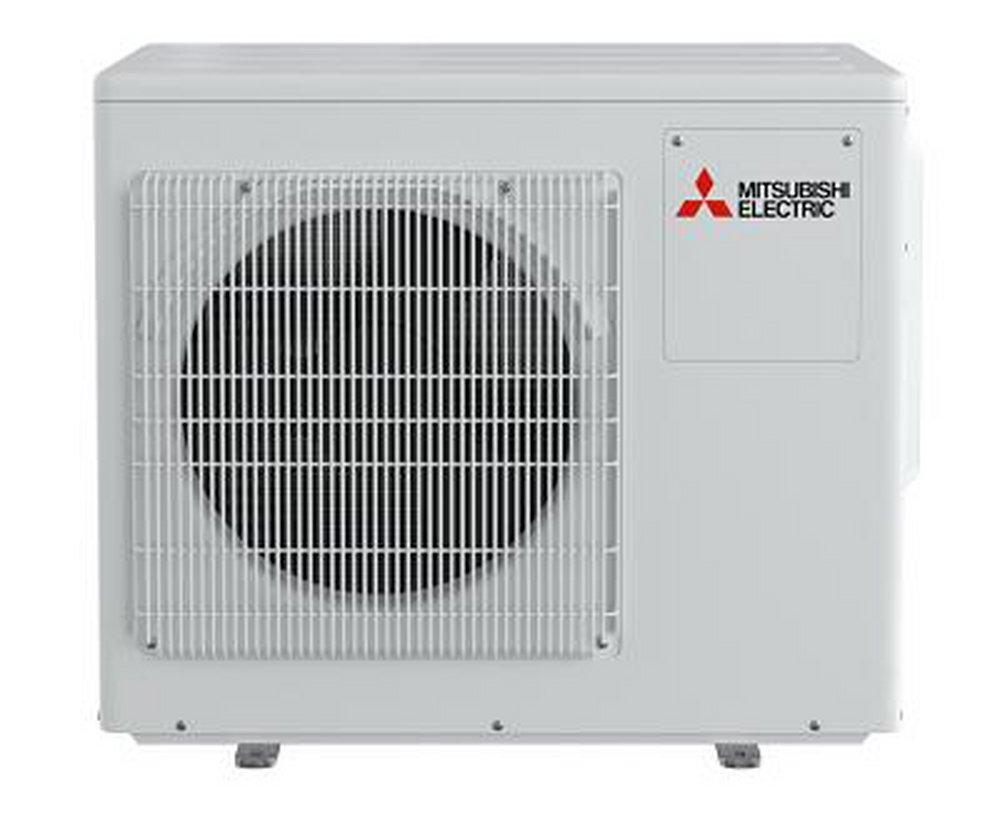

20 MBH Wall Mount Outdoor 1.5 Ton Mini-Split Multi-Zone
Mitsubishi
M-Series® 20 MBH Wall Mount Outdoor 1.5 Ton Mini-Split Multi-Zone
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Mitsubishi
M-Series®
20 MBH Wall Mount Outdoor 1.5 Ton Mini-Split Multi-Zone
MXZ-2C20NA3-U1
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Variable speed inverter-driven compressor
- ENERGY STAR® certified
- M-NET connection through outdoor unit
- Quiet outdoor unit operation as low as 50 dB(A)
- Intelligent power module (IPM) for reduced power loss
- Selectable thermal lockout/restart function
- Optional base pan heater
- High pressure switch for additional protection
- Thermal differential of +/-1°F from set point
-
Green
Specifications
- A2L Compatible:
- No
- AMP:
- 17.2, 20
- Application:
- Residential
- BTU:
- 20000
- BTU Cooling Rating:
- 20000 Btu/h
- BTU Heat Rating:
- 25500 Btu/h
- CFM:
- 1458 ft3/min
- Collection:
- M-Series®
- Decibel Rating (dB):
- 54 dB
- Depth:
- 13 in
- EER:
- 12.7
- EER2:
- 12.7
- Energy Star Compliant:
- Yes
- HSPF:
- 10.0
- HSPF2:
- 9.3
- Height:
- 27-15/16 in
- Indoor Outdoor:
- Outdoor
- Installation Type:
- Wall Mount
- Liquid Line (OD):
- 1/4 in
- MBH:
- 20
- Phase:
- Single Phase
- Refrigerant:
- R-410A
- SEER:
- 20.0
- SEER2:
- 20.0
- Suction Line (OD):
- 3/8 in
- Tonnage:
- 1.5 Ton
- Volts:
- 208/230V
- Watts:
- 2455 W
- Weight:
- 126 lb
- Width:
- 33-1/16 in
- Zones:
- 2
