6,000 BTU - Wall Mount - Single Zone Mini-Split - 208/230V

Mitsubishi

M-Series® 6,000 BTU - Wall Mount - Single Zone Mini-Split - 208/230V

  • Fast #
  • Part #MMUZFS06NAHU1
  • Item #9206771
  • Manufacturer Part #MUZ-FS06NAH-U1
5 out of 5 Customer Rating
Brand image

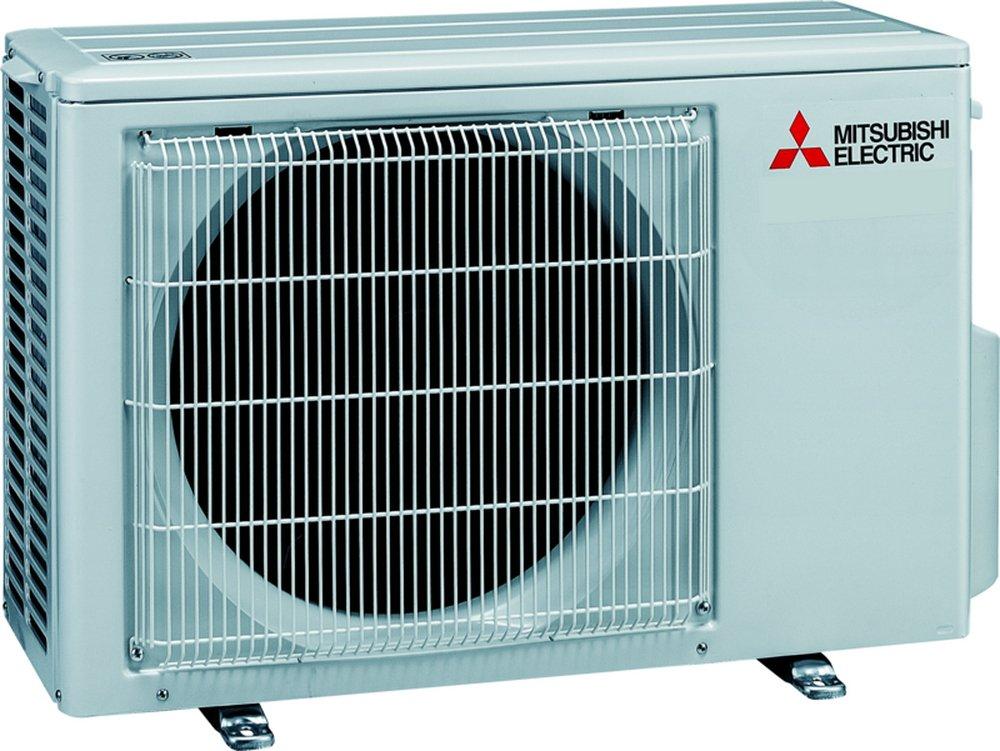

Mitsubishi Wall Mount Outdoor 0.5 Ton Mini-Split Single-Zone
Mitsubishi Wall Mount Outdoor 0.5 Ton Mini-Split Single-Zone
Mitsubishi

M-Series® 6,000 BTU - Wall Mount - Single Zone Mini-Split - 208/230V

  • Fast #
  • Part #MMUZFS06NAHU1
  • Item #9206771
  • Manufacturer Part #MUZ-FS06NAH-U1
5 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area
  • The unit's interior air duct/vane, coil, and fan features dual barrier coating, which maintains efficiency by keeping the inside clean. The MSZ-FS offers triple filtration, a backlit hand controller, and other premium features
  • Capacities: 6,000 to 18,000 BTU/H
  • Sound: As low as 20 dB(A)
  • SEER: Up to 33.1
  • HSPF: Up to 13.5
  • COP: Up to 4.68
  • Separates airflow to deliver air across a large area
  • Simultaneously deliver to air separate sections of a room
  • Deluxe wall-mounted indoor unit. The MSZ-FS deluxe wall-mounted indoor unit features a 3D i-see Sensor® and offers dual vane operation. The 3D i-see Sensor scans the room, measuring temperature and occupant location. Indirect or direct airflow settings divert supply air away from or toward room occupants
  • Requires Certification

  • Green

Specifications

A2L Compatible:
No
AMP:
0.5, 10, 15
Application:
Residential
Auto Switching Heat:
No
BTU:
6000
BTU Cooling Rating:
6000 Btu/h
BTU Heat Rating:
8700 Btu/h
CFM:
1183 ft3/min
Collection:
M-Series®
Compressor Type:
Inverter
Decibel Rating (dB):
49 dB
Depth:
13-9/16 in
EER:
19.1
EER2:
19.0
Energy Star Compliant:
Yes
HSPF:
12.5
HSPF2:
11.9
Height:
21-5/8 in
Indoor Outdoor:
Outdoor
Installation Type:
Wall Mount
Liquid Line (OD):
1/4 in
MBH:
6
Max Fuse Size:
15
Phase:
Single Phase
Refrigerant:
R-410A
Refrigeration Control Type:
LEV
SEER:
33.1
SEER2:
32.2
Suction Line (OD):
3/8 in
Tonnage:
0.5 Ton
Volts:
208/230V
Watts:
545 W
Weight:
83 lb
Width:
31-1/2 in
Zones:
1
