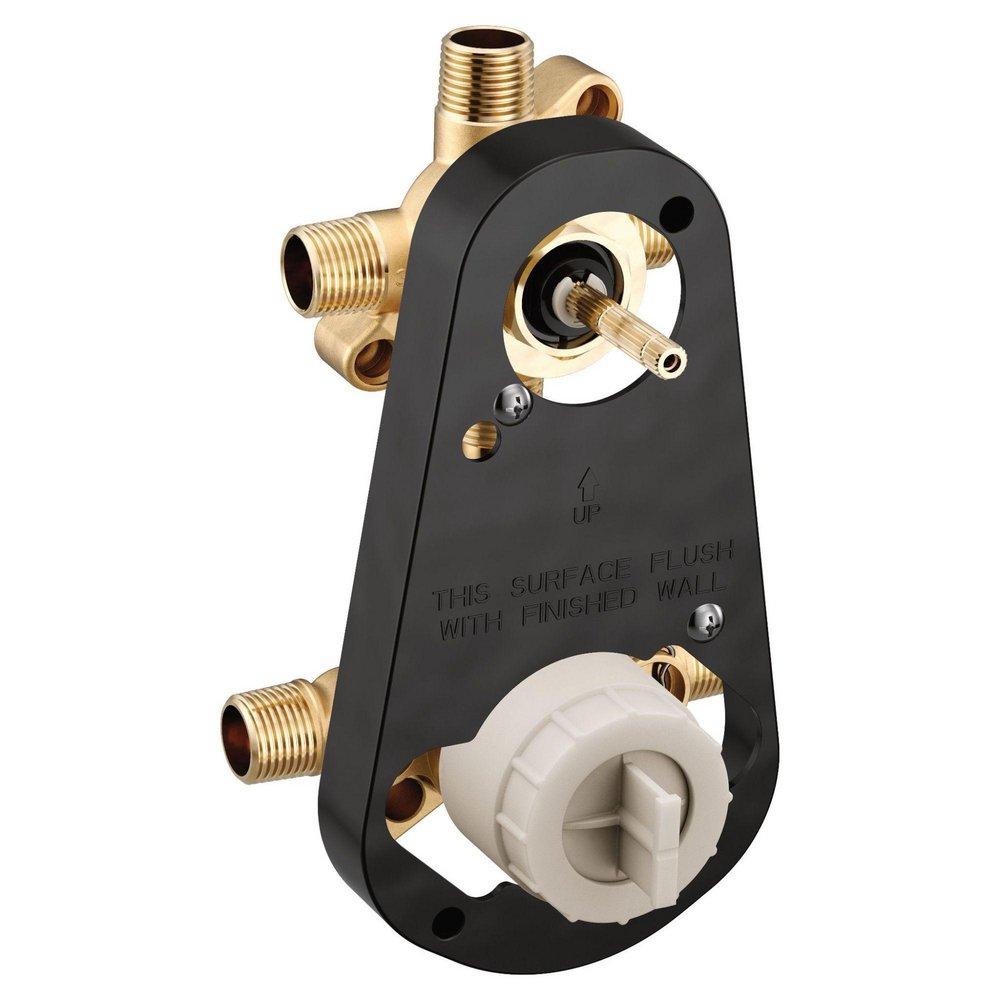

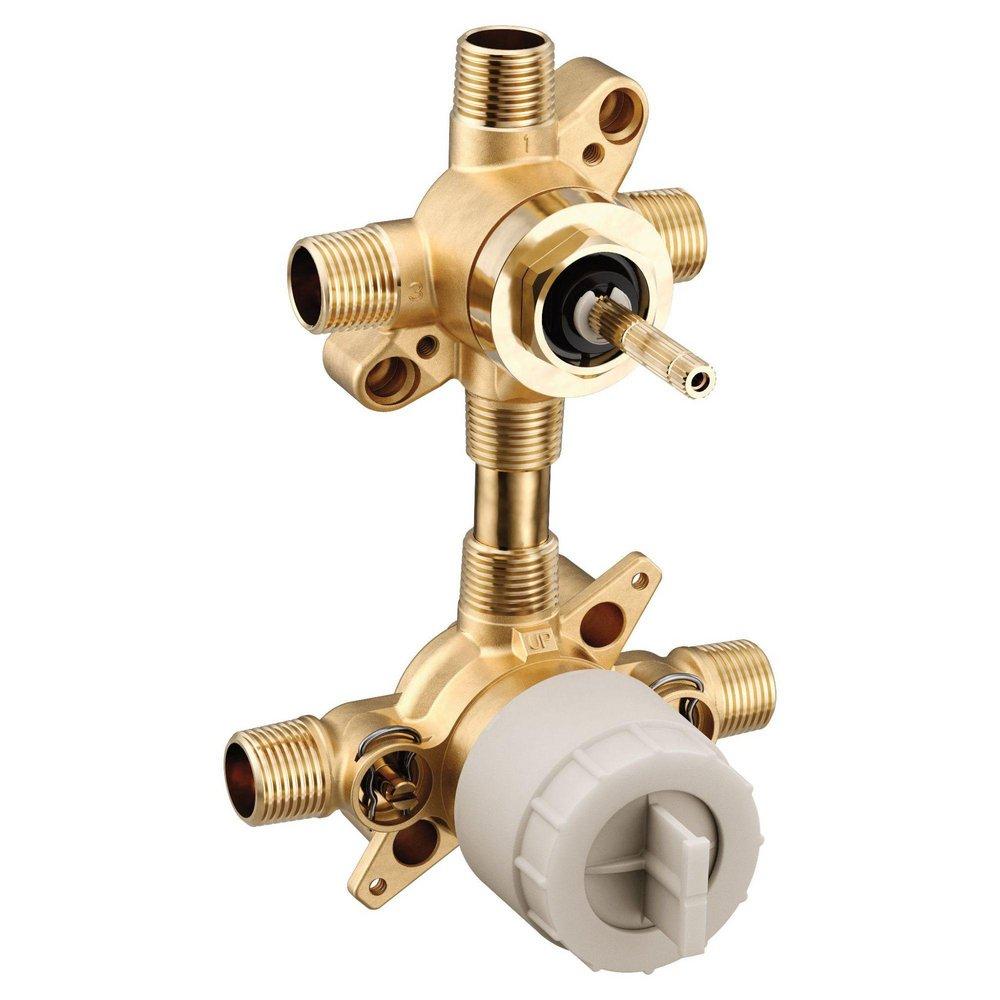

1/2 in. CC and IPS Transfer Valve
Moen
1/2 in. CC and IPS Transfer Valve
Package Quantity Info:
Each: 1 Case: 6 Pallet: 240
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Moen
1/2 in. CC and IPS Transfer Valve
U362CIS
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- This trim kit requires M-CORE Mixing Valve U140, with preferred installation option, to complete installation
- M-CORE universal valves, with 2-Series trim, provide simple cycling between cold and hot temperatures, offering pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
- M-CORE 2-Series is available a wide variety of styles and finishes
- Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
- M-CORE’S adaptability allows the valves to be roughed-in with the option of functionality and style changes that don't require removing or changing the valve
- Offers a precise temperature limit stop adjustment, and the integrated test cap allows installers to easily flush and test the system without having to remove or install the cartridge
- Backed by Moen's Limited Lifetime Warranty
- Improved style options, including the perfectly matched mixing and transfer trim, are available
Specifications
- ANSI:
- ANSI A112.18.1
- ASME:
- ASME A112.18.1
- ASSE Standards:
- ASSE 1016
- Built-in Stops:
- Yes
- CARB OTC LEED Compliant:
- No
- CSA Certified:
- CSA B125.1
- Cartridge Type:
- Diverter
- Depth:
- 3 in
- End Connection 1:
- CC
- End Connection 2:
- CC
- End Connections:
- CC
- Height:
- 7-1/2 in
- IAPMO Listed:
- No
- UPC:
- 026508319666
- Valve Body Material:
- Brass
- Valve Size:
- 3/4 in
- Valve Type:
- Rough-In Valve
- WaterSense Labeled:
- No
