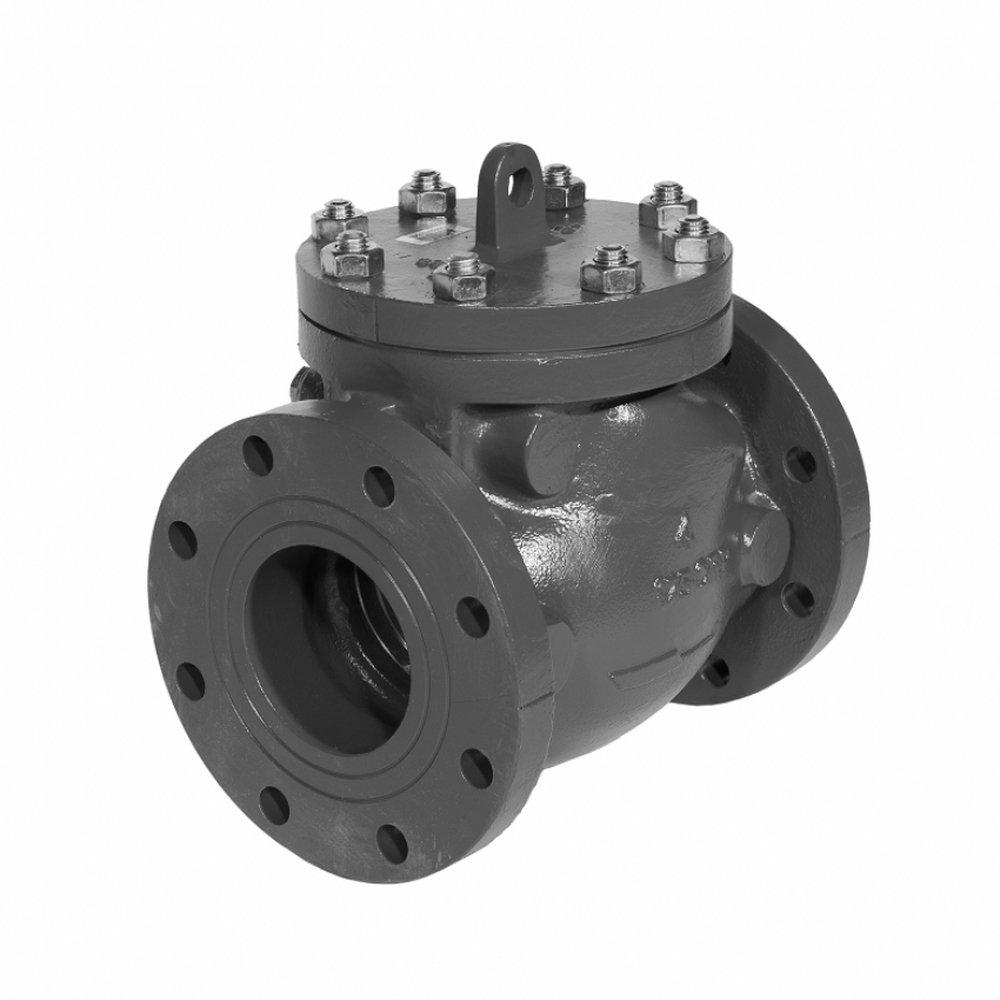

8 in. Cast Iron Flanged Swing Check Valve
Mueller Company
A-2120 8 in. Cast Iron Flanged Swing Check Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Mueller Company
A-2120
8 in. Cast Iron Flanged Swing Check Valve
A2120BB
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Cover bolts and nuts are electrogalvanized steel to resist corrosion
- MUELLER CO. also offers a full line of AWWA type check valves. See MUELLER water works catalog for further information
- Bronze mounted cast iron clapper arm provides long and trouble free services
- Cast iron cover has a lifting lug
- Cast iron body is accurately cast and machined to provide long and trouble free service
Specifications
- ANSI:
- ANSI B16.1, ANSI B16.42
- ASTM:
- ASTM A-126, ASTM A-276, ASTM A-307, ASTM A-47, ASTM B-21, ASTM B-62, ASTM D-2000
- Coating:
- Epoxy
- Collection:
- A-2120
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- Yes
- IAPMO Listed:
- No
- Installation Type:
- Horizontal, Vertical
- Length:
- 19-1/2 in
- Material:
- Cast Iron
- NSF Certified:
- No
- Pressure - High:
- 200
- Pressure Class:
- 125#
- Recommended Valve Application:
- Water
- UL Listed:
- Yes
- Valve Body Material:
- Ductile Iron
- Valve Body Style:
- Swing
- Valve Disc Material:
- Rubber
- Valve Operator:
- Lever Handle
- Valve Seat Material:
- Bronze
- Valve Size:
- 8 in
- Valve Type:
- Swing Check Valve
- Weight:
- 313 lb
- Width:
- 14-69/100 in
