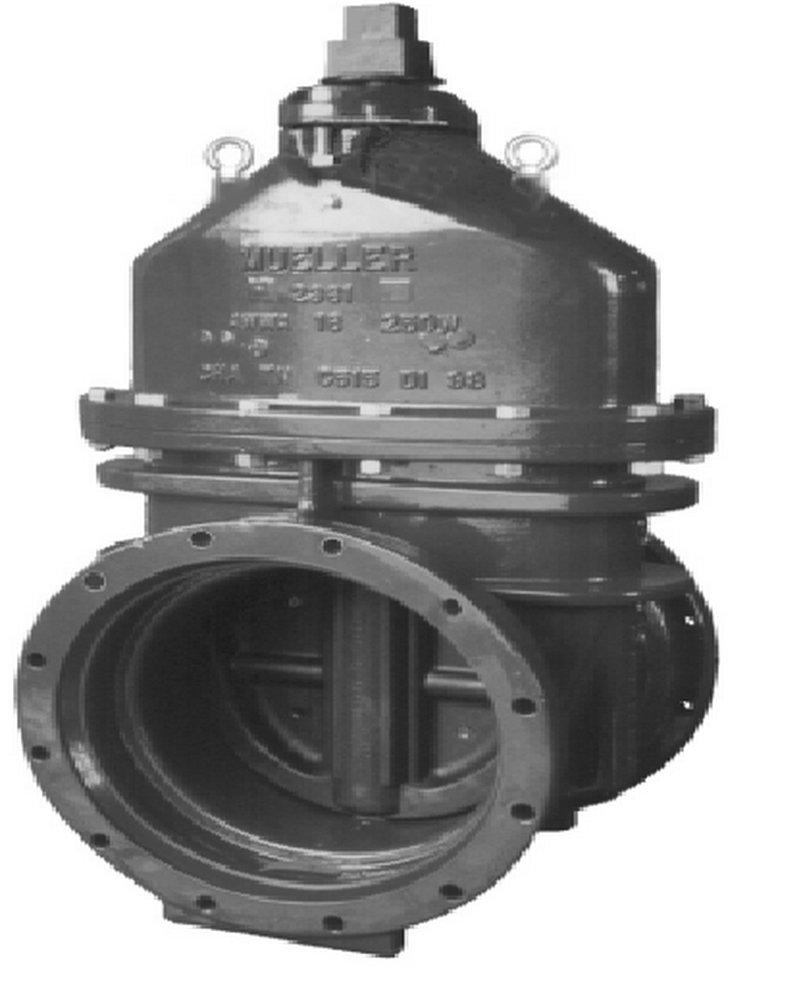

2-1/2 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve
Mueller Company
A-2361 Series 2-1/2 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve
Points
Call for Pricing
Call for Pricing
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Mueller Company
A-2361 Series
2-1/2 in. Flanged Ductile Iron Open Left Resilient Wedge Gate Valve
A2361-06-2-1/2
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Non-rising stem (NRS)
- 2 in square operating nut (optional handwheel)
- All ductile iron body and bonnet
- Mueller Pro-Gard® fusion bonded epoxy coating – 10 mil (250 ?) nominal
- Meets requirements of AWWA /ANSI C515 and is certified to ANSI/NSF 61 & 372
- Antifriction washer above and below thrust collar
- 316 stainless steel, bonnet and stuffing box bolts and nuts
- Ductile iron wedge, symmetrical and fully encapsulated with molded rubber; no exposed iron – acetal caps on guides ease operation and avoid wear
- 10-year limited warranty
- Working pressure: 350 psig /24 brag; test pressure: 700 psig /48 brag
Specifications
- ANSI:
- ANSI 372, ANSI 61, ANSI B16.1 Class 125, ANSI C515, ANSI C550
- ASME:
- ASME B16.1 Class 125
- ASTM:
- ASTM A-536, ASTM B-138, ASTM B-584, ASTM D-2000, ASTM F-593, ASTM F-594
- AWWA:
- AWWA C-509, AWWA C-515, AWWA C-550
- Application:
- Potable Water
- Coating:
- Fusion Bonded Epoxy
- Collection:
- A-2361 Series
- Ductile Iron Pipe Type:
- Ductile Iron Flanged Pipe
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- Yes
- Length:
- 7-1/2 in
- Material:
- Ductile Iron, Plastic, Rubber, Stainless Steel
- Material Type:
- 316, Acetal
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Pressure - Maximum:
- 700 psig
- Recommended Valve Application:
- Potable Water
- UL Listed:
- UL 262
- Valve Body Style:
- Open Left
- Valve Disc Material:
- Ductile Iron
- Valve Operator:
- Hand Wheel
- Valve Port Opening:
- Full Port
- Valve Size:
- 2-1/2 in
- Valve Stem:
- Non-rising
- Valve Type:
- Resilient Wedge Gate Valve
- Waterworks Application:
- Potable Water
- Weight:
- 62 lb
- Width:
- 8-63/100 in
