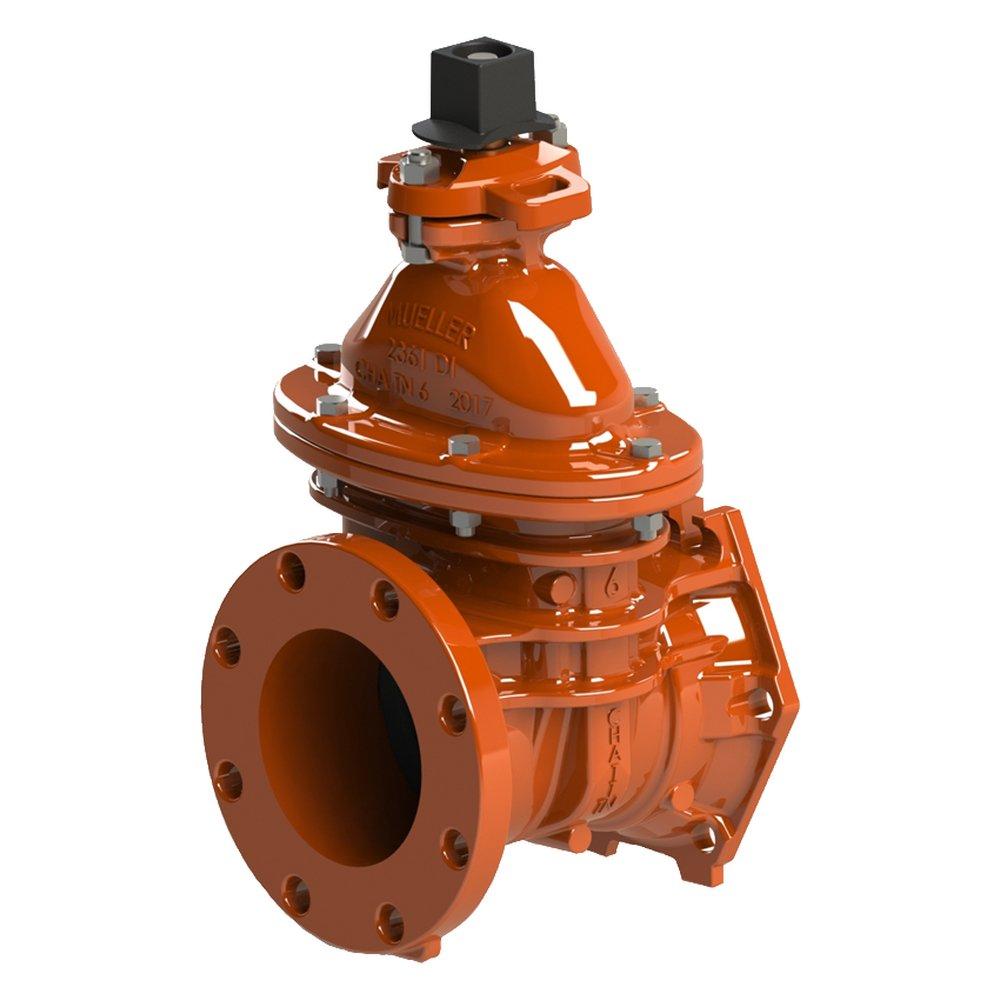

6 in. Mechanical Joint x Flanged Ductile Iron Open Left AIS Resilient Wedge Gate Valve (Less Accessories)

Mueller Company

A-2361 Series 6 in. Mechanical Joint x Flanged Ductile Iron Open Left AIS Resilient Wedge Gate Valve (Less Accessories)

  • Fast #
  • Part #MDA236119UOL
  • Item #7099755
  • Manufacturer Part #DA236119UOL
3.9 out of 5 Customer Rating
Brand image
Mueller Company Mechanical Joint x Flanged Ductile Iron Open Left AIS Resilient Wedge Gate Valve (Less Accessories)
Mueller Company Mechanical Joint x Flanged Ductile Iron Open Left AIS Resilient Wedge Gate Valve (Less Accessories)
Mueller Company

A-2361 Series 6 in. Mechanical Joint x Flanged Ductile Iron Open Left AIS Resilient Wedge Gate Valve (Less Accessories)

  • Fast #
  • Part #MDA236119UOL
  • Item #7099755
  • Manufacturer Part #DA236119UOL
3.9 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Meets or exceeds all applicable requirements of ANSI/AWWA C515*** standard, UL 262 Listed, FM 1120/1130 approved, and certified to NSF/ANSI/CAN 61 and 372
  • Flanged end drilling complies with ASME/ANSI B16.1 class 125
  • Mechanical joint end complies with ANSI/AWWA C111 standard
  • Iron body with nominal 10 mils Pro-Guard® fusion bonded epoxy coated interior and exterior surfaces
  • Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 standard
  • Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
  • Non-rising stem (NRS)
  • Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
  • 2" square wrench nut - open left or open right
  • UL listed, FM approved - 350 psig (2400 kPa/24 barg)
  • Requires Certification

Specifications

ANSI:
ANSI 372, ANSI 61, ANSI C111, ANSI C550, ANSI C509
ASME:
ASME B16.1 Class 125
ASTM:
ASTM A-126 Class B, ASTM A-536, ASTM D-2000, ASTM F-593, ASTM F-594
AWWA:
AWWA C-509, AWWA C-111, AWWA C-550
Coating:
Fusion Bonded Epoxy
Collection:
A-2361 Series
End Connection 1:
Mechanical Joint
End Connection 2:
Flanged
End Connections:
Mechanical Joint x Flanged
FM Approved:
Yes
Length:
11-3/50 in
Material:
Ductile Iron, Cast Iron
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - Maximum:
700 psi
UL Listed:
UL 262
Valve Body Material:
Ductile Iron
Valve Body Style:
Open Left
Valve Disc Material:
Cast Iron
Valve Size:
6 in
Valve Stem:
Non-rising
Valve Type:
Resilient Wedge Gate Valve
Waterworks Application:
Potable Water
