6 in. Mechanical Joint Stainless Steel Tapping Sleeve 6.59 - 6.99 in.
Mueller Company

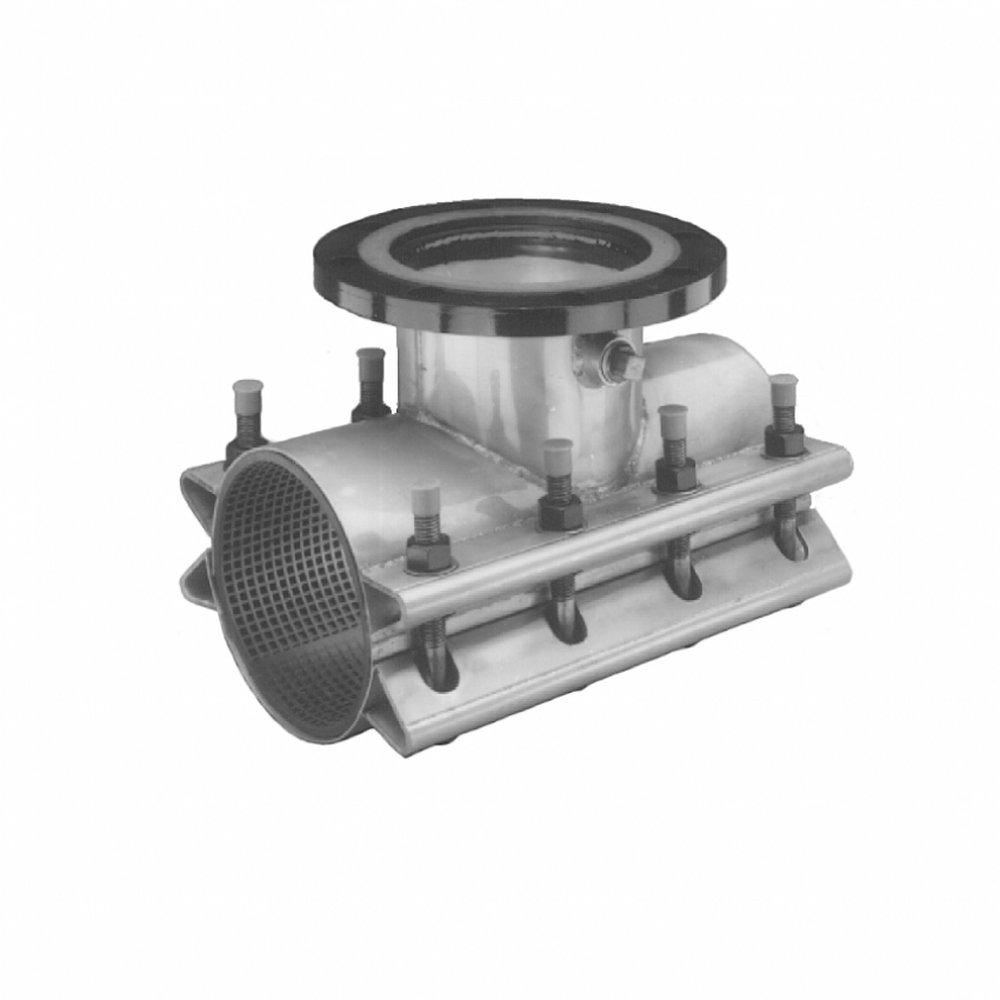

H-304 6 in. Mechanical Joint Stainless Steel Tapping Sleeve 6.59 - 6.99 in.
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Mueller Company
H-304
6 in. Mechanical Joint Stainless Steel Tapping Sleeve 6.59 - 6.99 in.
0606H304MJ0699
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Outlet choices: Flange or integral MJ outlet
- Outlet flange material options: 304L Stainless steel, carbon steel, or ductile iron outlet flange which meets or exceeds all applicable requirements of ANSI B16.1, class 125 and B16.42 class 150 and in accordance with MSS-SP60
- Integral MJ flange is 304L stainless steel
- Certified to ANSI/NSF 61
- 3/4 in. NPT brass test plug (stainless steel optional)
- 4 in. - 12 in. sizes 250 psig (1725 kPa/17 barg) maximum working pressure
Specifications
- ANSI:
- ANSI 61, ANSI B16.1 Class 125, ANSI B16.42 Class 150
- Collection:
- H-304
- End Connection 1:
- Mechanical Joint
- End Connections:
- Mechanical Joint
- FM Approved:
- Yes
- Fits Pipe Size:
- 6 in
- Fitting Type:
- Tapping Sleeve
- MSS:
- MSS SP-60
- Material:
- Rubber, Stainless Steel
- Material Type:
- 304L, NBR
- NSF:
- NSF 61
- NSF Certified:
- Yes
- Range (in):
- 6.59 in - 6.99 in
- Tap Size:
- 6 in
- UL Listed:
- Yes
