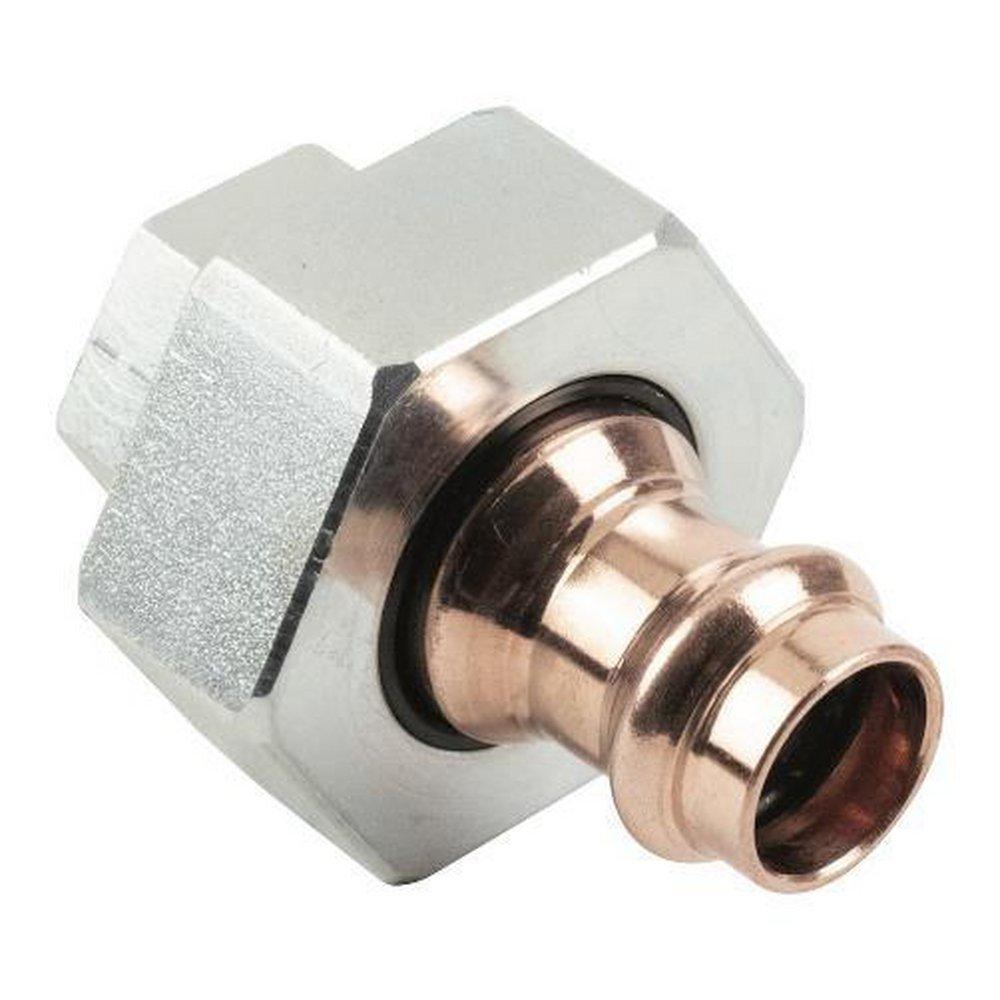

1/2 in. Press x FPT Copper Dielectric Union

Mueller Industries

Streamline® PRS™ 1/2 in. Press x FPT Copper Dielectric Union

Brand image
Mueller Industries

Streamline® PRS™ 1/2 in. Press x FPT Copper Dielectric Union

  • Part #MPF11503
  • Item #8356302
  • Manufacturer Part #PF 11503
3.4 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1 CA: 50 PT: 2700
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up:
  • Shipping: Available for immediate shipment

All Sizes

Product Details

  • Designed to join ASTM B88 (Types K, L, M) hard-drawn copper tube (1/2 in to 4 in) and soft copper tube (1/2 in to 1-1/4 in).
  • Operating pressure: 300 psi
  • StreamlinePRS™ mechanical press copper fittings are for use in plumbing or mechanical applications in sizes from 1/2 in - 4 in.
  • Environmentally friendly system
  • Anti-creep protection during installation and service
  • For use in above and below ground applications as allowed by local code.
  • SURE PRS™ Seal Technology - 360° leak detection helps identify un-pressed connections.
  • Operating temperature range: -20° F to 250° F
  • Includes a 50-year limited warranty against defects in material and workmanship
  • Compatible with most common pressing tools and jaws in the market
  • Lead Law Compliant

Documents


Specifications

ANSI:
ANSI 61, ANSI 372
ASME:
ASME B16.51
ASTM:
ASTM B-88
Application:
Plumbing, Potable Water, Hydronic Heating, Chilled Water, Mechanical
Clean Bagged:
No
Collection:
Streamline® PRS™
Depth:
3/4 in
Diameter:
1/2 in
Diameter - Outside:
1/2 in
End Connection 1:
Press
End Connection 2:
FPT
End Connections:
Press x FPT
FM Approved:
No
Fits Pipe Size:
1/2 in
Fitting Size 1:
1/2 in
Fitting Size 2:
1/2 in
Fitting Sizes:
1/2 in
Fitting Type:
Straight, Dielectric Union
Height:
2-9/50 in
IAPMO Listed -:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2-12/25 in
Material:
Copper, Steel
Material Type:
C12200
Maximum Temperature:
250
Minimum Temperature:
-21
NSF:
NSF 61, NSF 372
NSF Certified:
Yes
Number of Pieces:
1 Piece
Origin:
Global
Pressure - High:
300
Size:
1/2 in
Temperature Range:
-20 to 250 Deg F
Temperature Rating:
250
UL Listed:
No
Weight:
0.7599 lb
Width:
1-89/100 in
