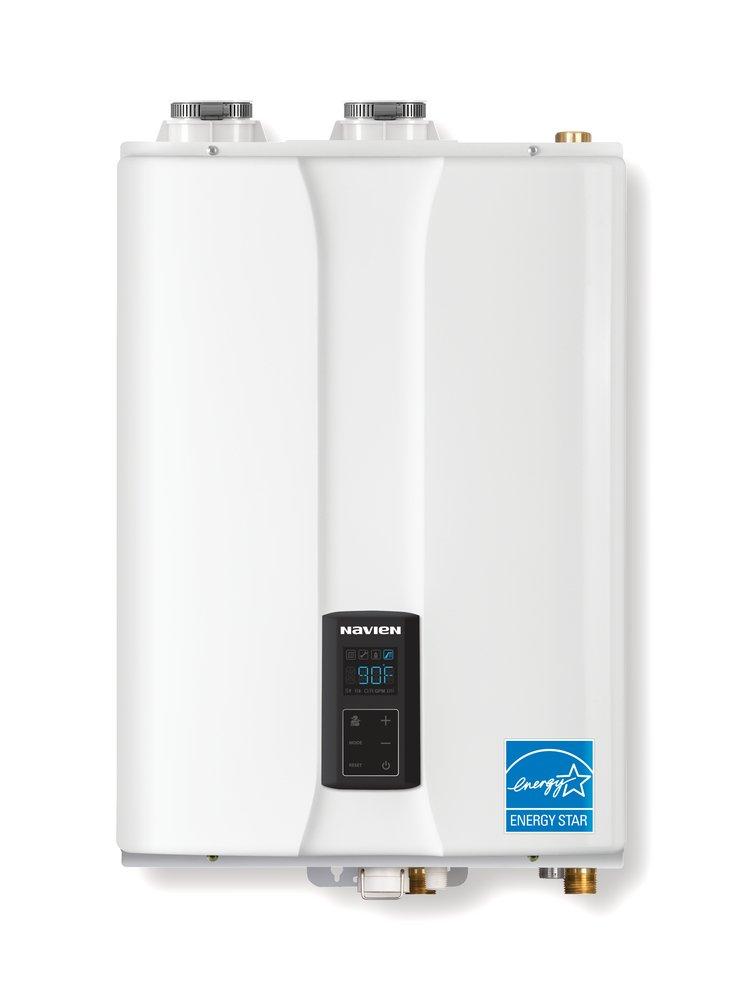

High Efficiency - Condensing - Heating Boiler - 150 MBH - Dual Stainless Steel Heat Exchangers

Navien

NHB Series High Efficiency - Condensing - Heating Boiler - 150 MBH - Dual Stainless Steel Heat Exchangers

Brand image
Navien

NHB Series High Efficiency - Condensing - Heating Boiler - 150 MBH - Dual Stainless Steel Heat Exchangers

  • Part #NNHB150
  • Item #4918320
  • Manufacturer Part #NHB-150
3.4 out of 5 Customer Rating

Package Quantity Info:

EA: 1 IP: 1 CA: 1 PT: 10
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Half-inch gas pipe capable up to 24'
  • Built-in temperature control and display
  • Easy installation and 2" PVC venting capable
  • Ready Link® cascade system
  • BTU heat rating for space heating: 150,000 btu/h
  • Field gas convertible

Specifications

AFUE:
95.00 %
AMP:
10
ANSI:
ANSI Z223.1
ASME:
ASME H
Adjustable:
Yes
Application:
Residential
Automatic Shut-Off:
Yes
BTU:
150000
BTU Heat Rating:
120000 Btu/h
Brand Model Compatibility:
NHB
CEC Compliant:
For Sale in CA
CSA Certified:
CSA B149.1
Capacity:
138000 gal
Case Material:
Steel
Collection:
NHB Series
Color Finish Category:
Whites
Color Finish Name:
White
Condensing:
Yes
Depth:
13 in
Display Type:
LCD
ETL Listed:
No
Energy Star Compliant:
Yes
FM Approved:
No
Flue Size:
3
Flue Type:
PVC
Fuel Type:
Natural Gas, Propane
GSA Approved:
No
Green Product:
Yes, Energy Star
Hardware Included:
Yes
Height:
24 in
IAPMO Listed -:
No
ISO:
No
Ignition System:
Electronic Ignition
Indoor Outdoor:
Indoor
Inlet Outlet:
1 in inlet/ 1 in outlet
Input (MBH):
150 MBH
Installation Type:
Wall Mount
Length:
13 in
MBH:
150
Material:
Carbon Steel, Stainless Steel
NSF:
No
NSF Certified:
No
Origin:
Global
Plug Included:
Yes
Power Source:
Gas
Pressure - High:
30
Pressure - Low:
6
Product Type:
Boiler
Programmability:
Programmable
Return Pipe Connection:
1 in
SCAQMD Compliant:
Yes
Smart Home Compatibility:
NaviLink
Smart Home Enabled:
Yes
Supply Pipe Connection Size:
1 in
Temperature Range:
77 to 194 Deg F (25 to 90 Deg C)
Touch Screen -:
No
UL Listed:
No
Vent Type:
Direct Vent
Volts:
120V
WIFI Enabled:
Yes
Weight:
80 lb
Width:
17 in
