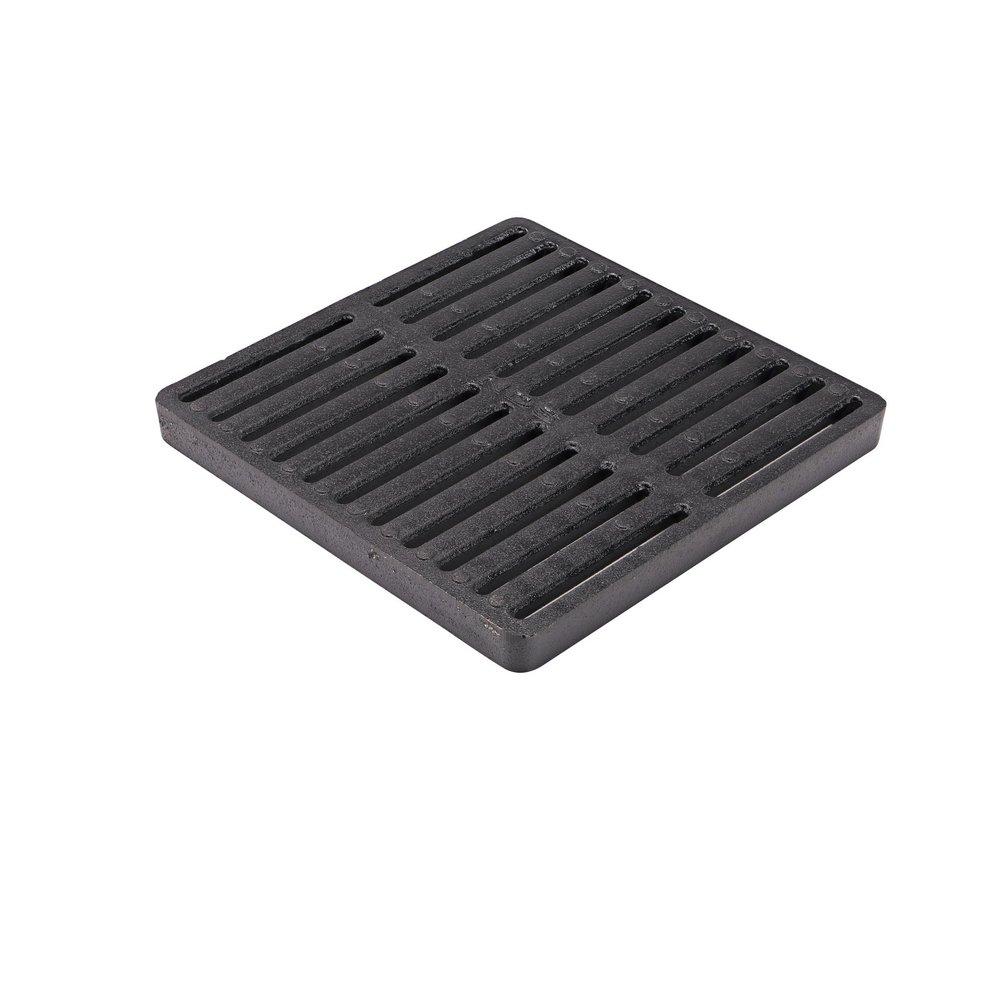

12 in. Cast Iron Grate
NDS
12 in. Cast Iron Grate
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 480
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NDS
12 in. Cast Iron Grate
1213
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Drain grate for 12 in. catch basin, riser, low-profile adapter
- Heavy-duty drain cover blocks pipe-clogging debris as it drains
- 114 GPM flow rate; for heavy flows on driveways, parking lots
- Fits 12 in. Catch Basin Drain, 12 in. Riser, and 12 in. Low-Profile Adapter
- 37.2 sq. in. of open surface area
- 114 GPM flow rate
- Rated for NDS Class C loads (up to 325 psi) when properly installed; H-20 rated; recommended for heavy-duty pneumatic tire forklifts and tractor-trailers at speeds less than 20 mph; ADA compliant
- Use with a square catch basin, riser, or low-profile adapter to capture stormwater runoff and stop debris from entering and clogging your drainage system
- Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream
- Use with a Flo-Well® Dry Well System and NDS® EZ Drain™ or EZflow® Gravel-Free French Drain System to detain excess water and slowly release it into the ground
Documents
Specifications
- Brand Model Compatibility:
- NDS
- Color Finish Name:
- Black, Ductile Iron
- Depth:
- 1 in
- Diameter:
- 12 in
- Flow Rate:
- 114 gpm
- Height:
- 1 in
- Length:
- 12 in
- Material:
- Cast Iron
- Material Type:
- Ductile Iron
- Product Type:
- Grate, Square, Flat
- UPC:
- 052063012131
- Waterworks Application:
- Drainage
- Width:
- 12 in
