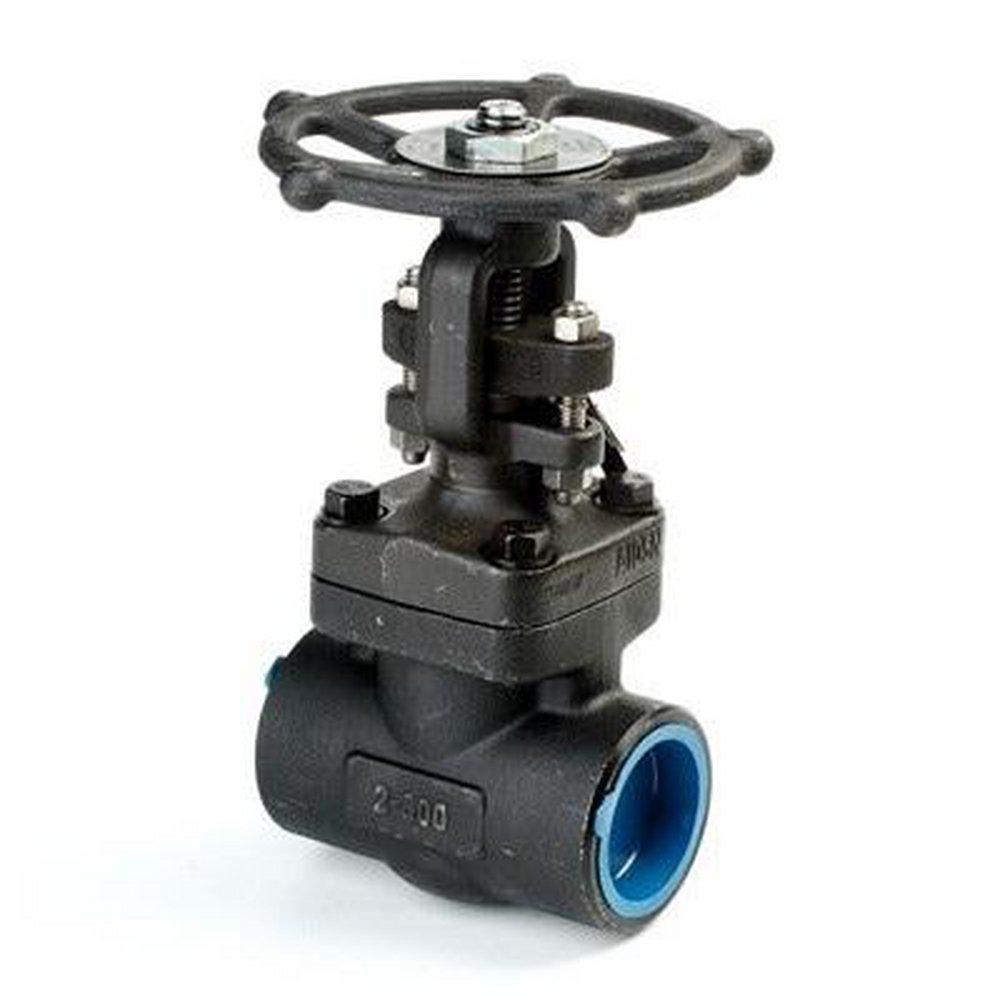

3/4 in. Forged Steel Full Port Socket Weld Gate Valve
Neway Valve
G8SA8 3/4 in. Forged Steel Full Port Socket Weld Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Neway Valve
G8SA8
3/4 in. Forged Steel Full Port Socket Weld Gate Valve
.75G8SA8-001
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- A positive backseat, high quality packing material and improved stuffing box design ensure tighter stem seal
- The T-head stem design provides positive disc to stem connection and ensures effective seating operation
- Fully guided solid wedge reduces wear on seating surfaces
- Stud and bolt arrangement facilitates packing maintenance
- Recessed body-bonnet joint design captures the stainless steel spiral wound gasket ensuring seating integrity
- Rolled-in seat design ensures tight and effective seat assembly
Documents
Specifications
- API:
- API 602
- ASTM:
- ASTM A105N, ASTM A197, ASTM A276 410
- Collection:
- G8SA8
- End Connection 1:
- Socket Weld
- End Connection 2:
- Socket Weld
- End Connections:
- Socket Weld
- FM Approved:
- No
- Handle Material:
- Malleable Iron
- Height:
- 6-9/50 in
- Length:
- 3-31/50 in
- Material:
- Forged Steel, Malleable Iron, Carbon Steel, Stainless Steel
- Material Type:
- Stellite 6
- NSF Certified:
- No
- Pressure Class:
- 800#
- UL Listed:
- No
- Valve Body Material:
- Forged Steel
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Stainless Steel, Stellite 6
- Valve Size:
- 3/4 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
