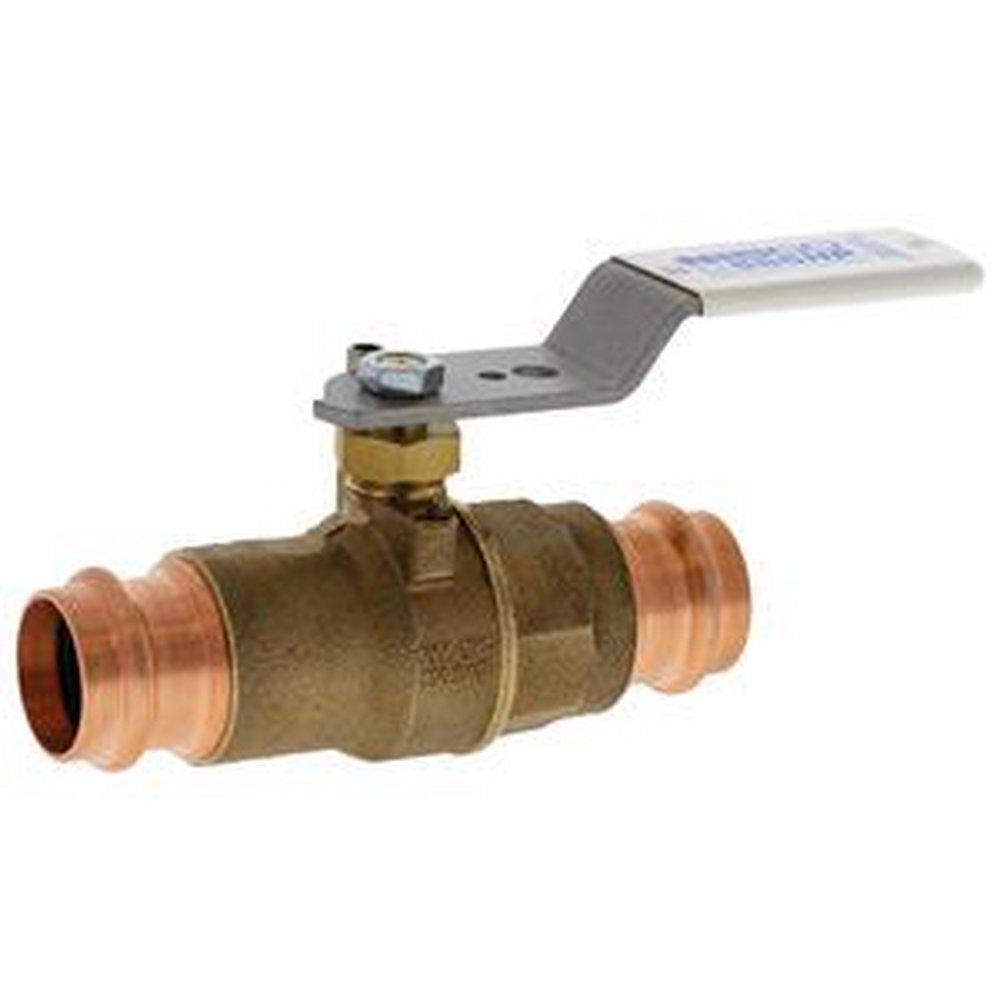

1-1/2 in. Bronze Full Port Press 1000# and 250# Ball Valve

You last purchased this on

NIBCO

1-1/2 in. Bronze Full Port Press 1000# and 250# Ball Valve

  • Fast #
  • Part #NPC585HPLFJ
  • Item #9316308
  • Manufacturer Part #HP840XC
3.7 out of 5 Customer Rating
Brand image
You last purchased this on

NIBCO

1-1/2 in. Bronze Full Port Press 1000# and 250# Ball Valve

  • Fast #
  • Part #NPC585HPLFJ
  • Item #9316308
  • Manufacturer Part #HP840XC
3.7 out of 5 Customer Rating

X Points

Package Quantity Info:

Each: 1 Inner Pack: 3 Case: 6 Pallet: 252
Looking for compatible parts?

Frequently Purchased Together

Product Details

Product Details

  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Maximum service temperature 250°F
  • Copper-to-copper connections
  • Full port
  • Laser welded
  • Reversible handle
  • Easily adjustable pack nut
  • Triple sealed stem
  • Blowout-proof stem
  • Reinforced PTFE seat rings
  • Requires Certification
  • Lead Law Compliant

Documents


Specifications

ANSI:
ANSI 372, ANSI 61, ANSI Z1157
ASME:
ASME A112.4.14
ASTM:
ASTM A-276, ASTM B-16, ASTM B-584
CSA Certified:
CSA B125.14
End Connection 1:
Press
End Connection 2:
Press
End Connections:
Press
Handle Material:
Carbon Steel
IAPMO Listed:
Yes
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
7-1/100 in
MSS:
MSS SP-110, MSS SP-145
Material:
Bronze, Plastic
Material Type:
RPTFE
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Pressure - High:
1000, 250
Pressure Class:
1000#, 250#
Recommended Valve Application:
Cold Working Pressure
Valve Body Material:
Bronze
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
1-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
3.55 lb
