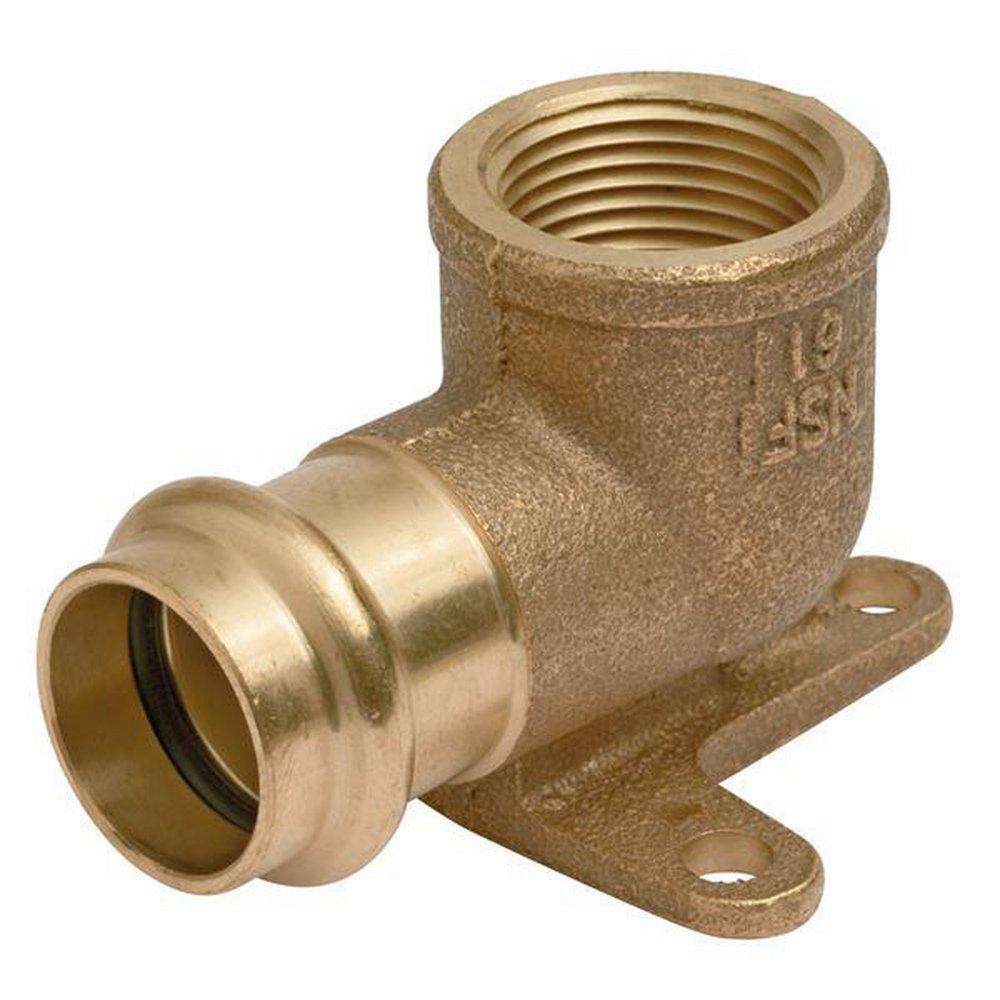

3/4 in. Press x FNPT Cast Bronze 90 Degree Drop Elbow
NIBCO
3/4 in. Press x FNPT Cast Bronze 90 Degree Drop Elbow
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 50 Pallet: 3000
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
All Sizes
Purchase history
NIBCO
3/4 in. Press x FNPT Cast Bronze 90 Degree Drop Elbow
B067000PC
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Pressure Temperature Limits: Maximum Pressure 105 psi cwp; 90 psi @ 250°F. These limits are in accordance with MSS SP-106 which governs Cast Copper Alloy Flanges and Flanged Fittings: Class 125, 150, and 300.
- UPC, CSA approvals
- Dezincification resistant
- Used to transition between copper tube and male NPT connections
- Wrot copper outlet
- Cast bronze flange
-
Lead Law Compliant
Documents
Specifications
- ASTM:
- ASTM B-584 C87600
- Clean Bagged:
- No
- Elbow Degree:
- 90°
- End Connection 1:
- Press
- End Connection 2:
- FNPT
- End Connections:
- Press x FNPT
- Fitting Size 1:
- 3/4 in
- Fitting Size 2:
- 3/4 in
- Fitting Sizes:
- 3/4 in
- Fitting Type:
- Straight
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Material:
- Cast Bronze
- NSF:
- NSF 61, NSF 14, NSF 372
- NSF Certified:
- Yes
- Pressure - Maximum:
- 200 psi
- UPC:
- 039923308832
