3 in. Cast Iron Full Port Flanged Gate Valve
NIBCO

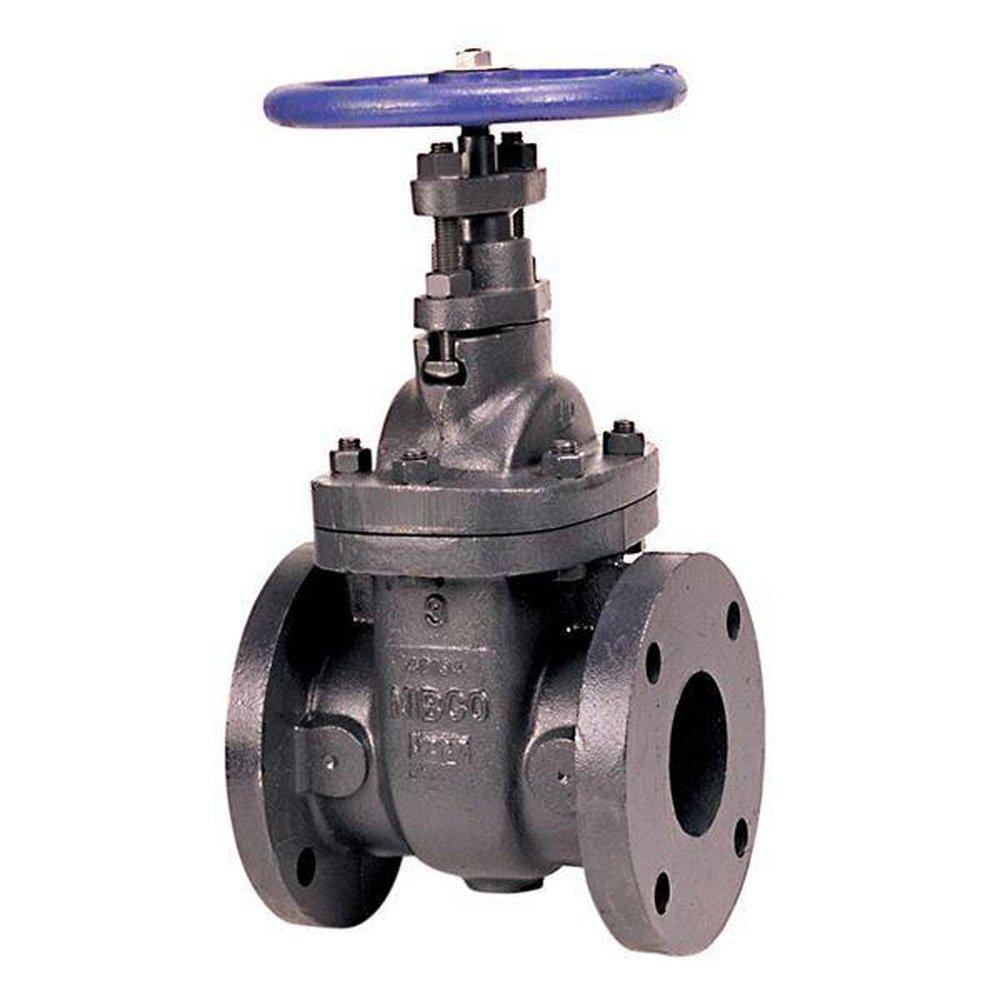

F-619 3 in. Cast Iron Full Port Flanged Gate Valve
Purchase history
NIBCO
F-619
3 in. Cast Iron Full Port Flanged Gate Valve
NHAC00F
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Solid wedge
- Bronze mounted
- 125 psi/8.6 bar saturated steam to 353°F/178°C
- 200 psi/13.8 bar non-shock cold working pressure
- Non-rising stem
- Bolted bonnet
- Class 125 flanged end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-70
Dimensions & Measurements
End Connection 1
Flanged
End Connection 2
Flanged
End Connections
Flanged
Handle Length (in)
8 in
Length
8 in
Pressure Class
125#
Valve Size
3 in
Weight
60 lb
Width
8 in
Characteristics & Features
Collection
F-619
Handle Material
Cast Iron
Material
Cast Iron, Copper Alloy
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Valve Body Material
Cast Iron
Valve Body Style
1 piece
Valve Bonnet Type
Bolted
Valve Disc Material
Cast Iron
Valve Operator
Handwheel
Valve Port Opening
Full Port
Valve Seat Material
Copper Alloy
Valve Stem
Non-Rising
Valve Type
Gate Valve
Electrical & Operational Information
Maximum Temperature
232
Pressure - High
125, 200
Warranty & Product Information
ASTM
ASTM A126 Class B, ASTM A307, ASTM A536, ASTM B16 C36000, ASTM B584 C84400, ASTM B783, ASTM F-467 C27000
FM Approved
No
MSS
MSS SP-70
NSF Certified
No
Origin
Domestic
Recommended Valve Application
Cold Working Pressure, Commercial, Gas, HVAC, Industrial, Steam, Water
UL Listed
No
UPC
039923697639
