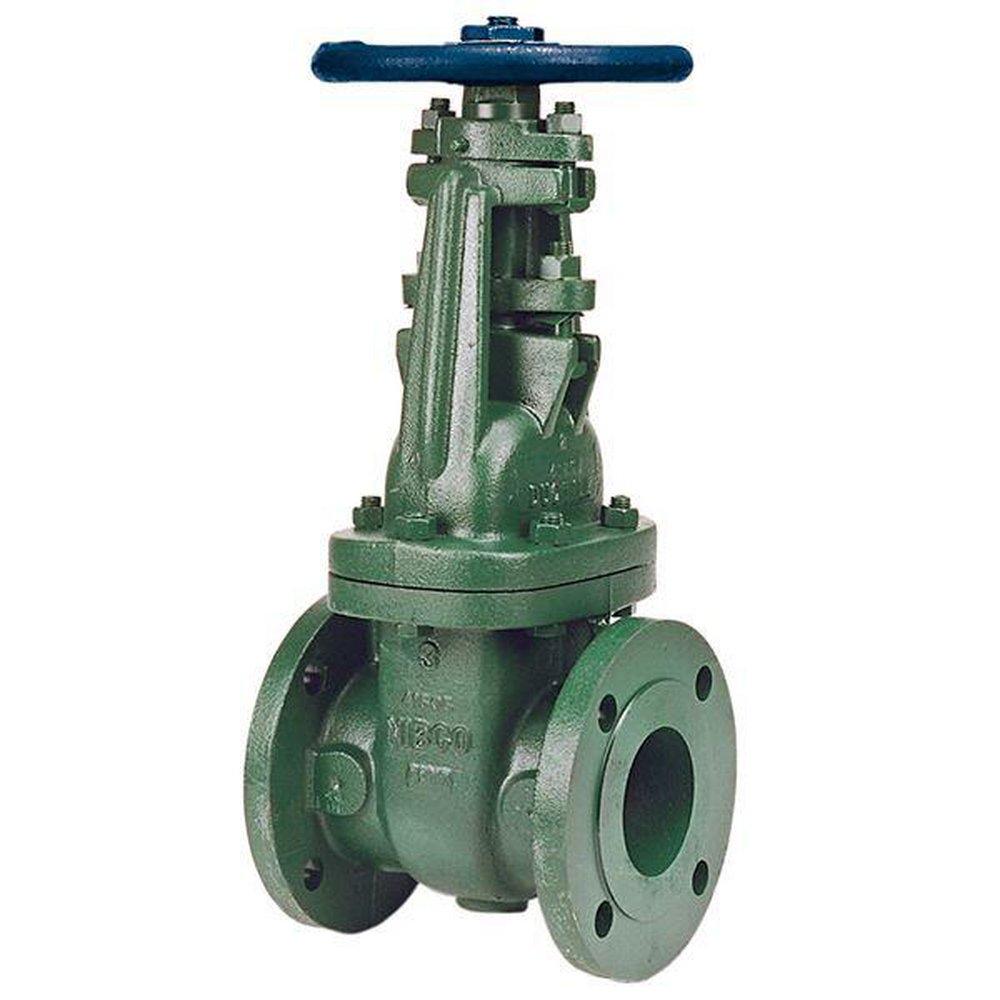

8 in. Ductile Iron Full Port Flanged Gate Valve
NIBCO
F-637-31 8 in. Ductile Iron Full Port Flanged Gate Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 3
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
NIBCO
F-637-31
8 in. Ductile Iron Full Port Flanged Gate Valve
NHAL10L
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Flanged ductile iron gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services
- Raised face flanges
- Outside screw and yoke
- Solid wedge
Specifications
- ASTM:
- ASTM A126 Class B, ASTM A395, ASTM A536, ASTM A563, ASTM B371, ASTM B584
- Collection:
- F-637-31
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Length (in):
- 14 in
- Handle Material:
- Iron
- ISO:
- ISO 9001:2015
- Length:
- 11-1/2 in
- MSS:
- MSS SP-128
- Material:
- Ductile Iron, Bronze
- Maximum Temperature:
- 450
- NSF Certified:
- No
- Pressure - High:
- 285
- Pressure Class:
- 150#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Recommended Valve Application:
- Cold Water, Compressed Air, Gas, Hot Water, Steam
- UL Listed:
- No
- UPC:
- 039923698612
- Valve Body Material:
- Ductile Iron
- Valve Bonnet Type:
- Bolted
- Valve Operator:
- Handwheel
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Bronze
- Valve Size:
- 8 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
- Weight:
- 309 lb
- Width:
- 13-1/2 in
