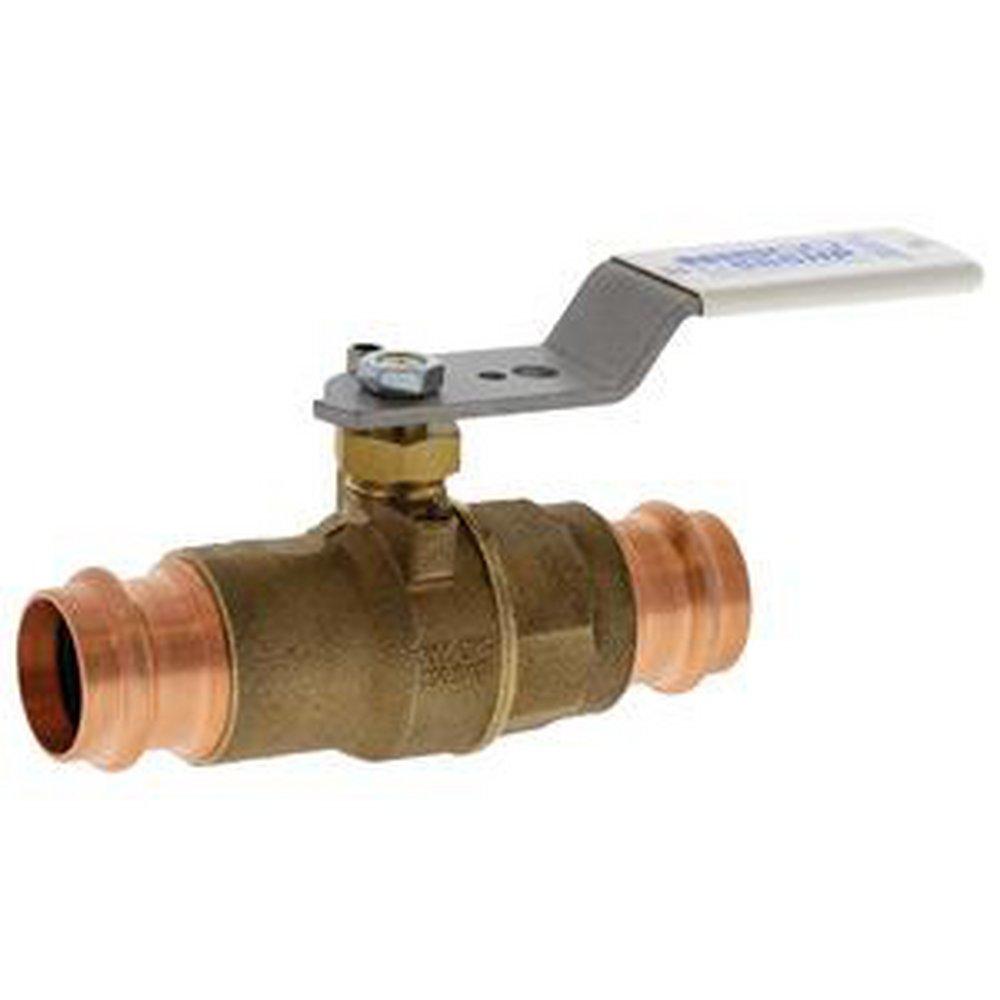

3/4 in. Bronze Full Port Press 250# Ball Valve
NIBCO
HydraPure® 3/4 in. Bronze Full Port Press 250# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 30 Pallet: 600Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
NIBCO
HydraPure®
3/4 in. Bronze Full Port Press 250# Ball Valve
HP840X8
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Silicon performance Bronze® alloy
- Laser-welded cast body
- Triple-sealed stem
- Reversible handle
- Easily adjustable packing nut
- Blow-out-proof stem
- Press ends leak detection
Product Information
-
Lead Law Compliant
Documents
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
4-93/100 in
Pressure Class
250#
Pressure - Maximum
225 psi
Valve Size
3/4 in
Weight
1.21 lb
Characteristics & Features
Collection
HydraPure®
Handle Material
Carbon Steel
Material
Bronze, Plastic, Carbon Steel
Material Type
RPTFE
Valve Body Material
Bronze
Valve Body Style
2 piece
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE
Valve Stem
Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI Z1157
ASME
ASME A112.4.14
ASTM
ASTM A-276 S31600, ASTM B-584 C46500, ASTM B-584 C87500, ASTM B-16 Alloy C36000, ASTM B-75 Alloy C12200
CSA Certified
CSA B125.14
cUPC Certified
Yes
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110, MSS SP-145
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Commercial, Cold Working Pressure
UPC
039923422880
